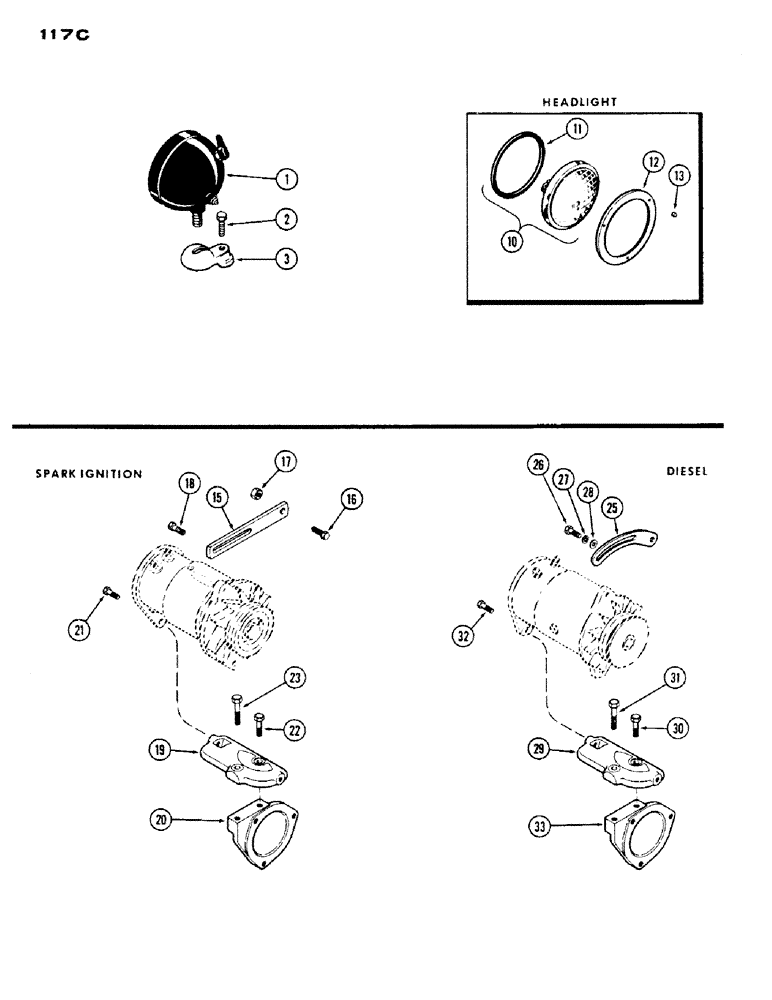

Запчасти Case IH 430 (117C) - ELECTRICAL EQUIPMENT AND HARDWARE (04) - ELECTRICAL SYSTEMS

1

A20965

LAMP BASE

LAMP - flood and tail (Repairs, Figure 122)

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Bracket Hex, 3/8"-16 x 1 1/2", G5

1шт.

3

A34046

BRACKET

-, Serial Range: lamp-fender

1шт.

10

A24572

LAMP

KIT - head, Includes: Ref. 11

2шт.

11

A11276

GASKET

- head lamp

1шт.

12

A11275

RING

- retainer, head lamp

2шт.

13

187-1102

SELF-TAP SCREW,#6 x 1/2"

SCREW - self-tapping (Taptite) #6 x 1/2"

6шт.

15

G11344

STRAP - generator adjusting, spark ignition

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

To timing gear cover, spark ignition Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

17

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.), spark ignition

1шт.

18

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Strap to gen., spark ignition

1шт.

19

A38746

BRACKET

- gen. mtg., spark ignition, Start Serial: 8361824

1шт.

19

G2131

X

BRACKET - gen. mtg., spark ignition, Serial Range: -8361824

1шт.

20

G2098

SUPPORT - gen. bracket (used w/out power strg.), spark ignition

1шт.

21

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Spark ignition Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

22

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

(Used w/A38746 brkt.), Spark ignition Hex, 5/16"-18 x 1 1/8", G5

1шт.

22

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Used w/G2131 brkt.), Spark ignition Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

23

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- (5/16 x 1-1/2" N.C. hex) (Used w/A38746 brkt.), Spark ignition

1шт.

23

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- (5/16 x 1-3/8" N.C. hex.) (used w/G2131 brkt.), spark ignition

1шт.

25

A37017

STRAP

- generator adjusting, diesel

1шт.

26

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Strap to gen., diesel

1шт.

27

193-20

WASHER,Ext-Int Tooth, 7/16"

- lock, 5/16", diesel

1шт.

28

195-103

WASHER,5/16"

- (3/8 x 7/8 x 3/32"), diesel

1шт.

29

A38746

BRACKET

- gen. mtg. (1st used trac. ser. no. 8361824), diesel

1шт.

29

G2131

X

BRACKET - gen. mtg. (used prior to trac. ser. no. 8361824), diesel

1шт.

30

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

(Used w/A38746 brkt.), Diesel Hex, 5/16"-18 x 1 1/8", G5

1шт.

30

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Used w/G2131 brkt.), Diesel Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

31

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- (5/16 x 1-1/2" N.C. hex) (Used w/A38746 brkt.), Diesel

1шт.

31

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- (5/16 x 1-3/8" N.C. hex.) (used w/G2131 brkt.), diesel

1шт.

32

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Diesel Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

33

G2098

SUPPORT - gen. bracket (used w/out power strg.), diesel

1шт.
