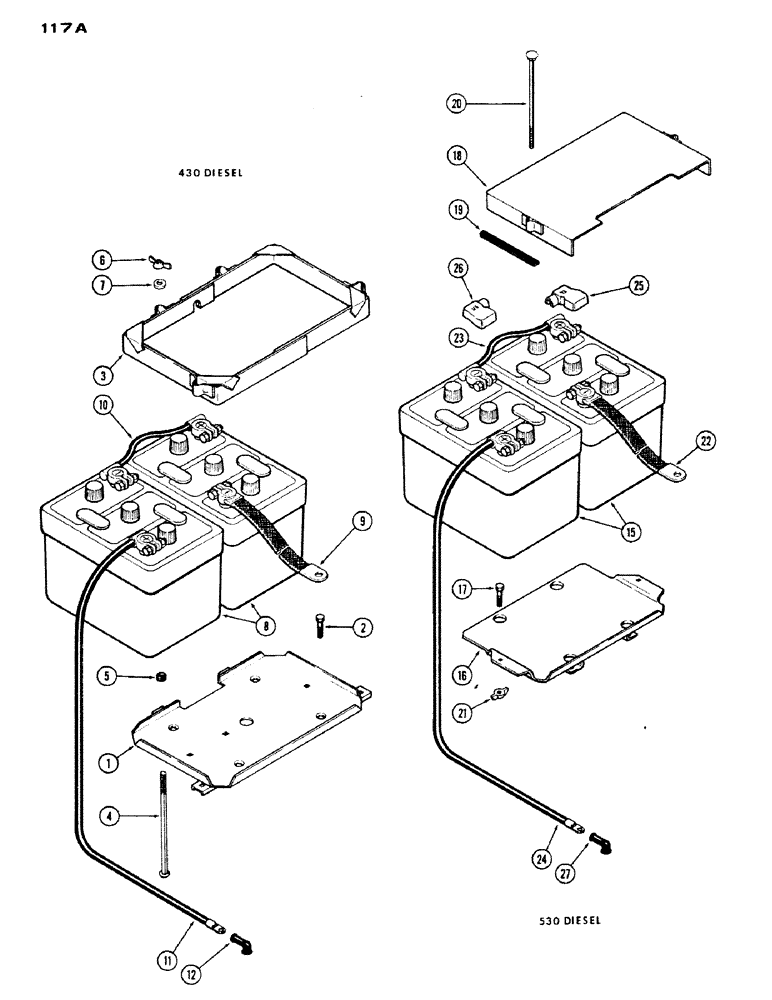

Запчасти Case IH 430 (117A) - BATTERY AND ATTACHING PARTS, 188, DIESEL ENGINE, 430 DIESEL (04) - ELECTRICAL SYSTEMS

1

G13150

PAN - battery base

1шт.

2

171-201

SCREW,Flat Hd, 5/16" x 1/2"

- battery pan (5/16 x 1/2" flat hd. lock)

4шт.

3

G13205

COVER - hold down, battery

1шт.

4

111-213

CARRIAGE BOLT,Short NK, 5/16"-18 x 9", G2

BOLT - 5/16 x 9" N.C. rd. hd. sq. nk.

2шт.

5

G46096

RETAINER

- rubber, cover bolt

2шт.

6

G49020

NUT

- wing, 5/16" N.C.

2шт.

7

195-103

WASHER,5/16"

- (3/8 x 7/8 x 5/64")

2шт.

8

G44890

BATTERY - 6 volt, 430 diesel engine

2шт.

9

A36368

STRAP

- battery ground

1шт.

10

G13098

CABLE

- battery jumper (6-3/4")

1шт.

11

A27987

CABLE

- battery to starter solenoid

1шт.

12

A21753

CAP

BOOT - cover, solenoid terminal

2шт.

15

G44890

BATTERY - 6 volt, 530 diesel engine

2шт.

16

G30295

PAN - battery base, 530 diesel

1шт.

17

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex., 530 diesel

4шт.

18

G30296

COVER ASSY

. - battery, Includes: Ref. 19, 530 diesel

1шт.

19

G46881

MOULDING - rubber (6" long), 530 diesel

2шт.

20

111-252

CARRIAGE BOLT,Short NK, 5/16"-18 x 9 1/2", G2

BOLT - cover (5/16 x 9-1/2" N.C. rd. hd. sq. nk.), 530 diesel

2шт.

21

G49020

NUT

- wing, cover bolt (5/16" N.C.), 530 diesel

2шт.

22

A36368

STRAP

- battery ground (15" long), 530 diesel

1шт.

23

G44055

CABLE PULLING GRIP

CABLE - jumper, battery (7-1/2"), 530 diesel

1шт.

24

A27987

CABLE

- battery to solenoid, 530 diesel

1шт.

25

H46879

COVER - battery terminal (stamped EL), 530 diesel

2шт.

26

G46880

COVER

- batter terminal (stamped ER), 530 diesel

1шт.

27

A21753

CAP

BOOT - solenoid terminal, 530 diesel

1шт.
