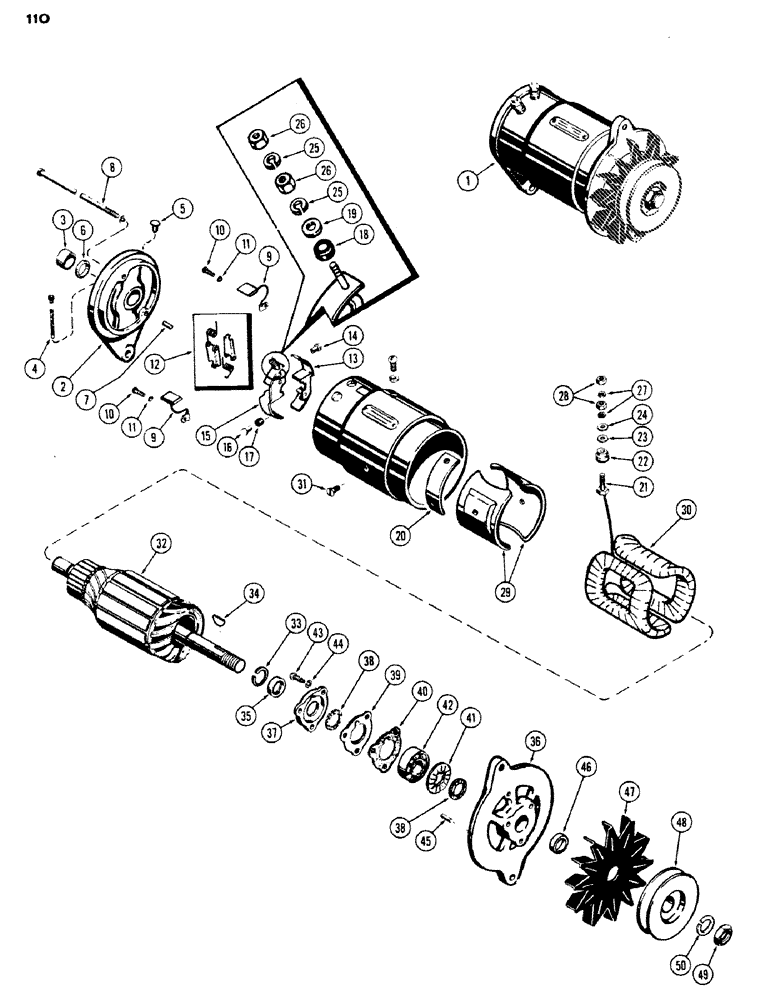

Запчасти Case IH 430 (110) - A41452 AND A36195 GENERATOR, SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

A41452

SPARE PART GENERATOR ASSY. - repair (Prestolite #GJT-7403SN)

1шт.

1

103817A1R

REMAN-GENERATOR

Generator

1шт.

1

103817A1C

CORE-GENERATOR

Return Number

1шт.

1

A36195

SPARE PART GENERATOR - production (Order A41452) (Prestolite #GJT-7403A), Includes: Ref. 2 - 45

1шт.

1

108012A1R

REMAN-GENERATOR

Remanufactured Generator

1шт.

1

108012A1C

CORE

Return Number 12 volt 20 ampere

1шт.

2

A25856

SPARE PART HEAD ASSY. - commutator end, Includes: Ref. 3 - 7

1шт.

3

A25623

BUSHING

BUSHING - armature shaft

1шт.

4

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

5

NSS

NOT SOLD SEPARAT

OILER

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - oil

1шт.

7

NSS

NOT SOLD SEPARAT

DOWEL - locating

1шт.

8

A40580

BOLT - thru (Set of 2)

1шт.

9

A25873

BRUSH ASSY.

BRUSH SET

1шт.

10

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

SCREW - brush lead (#8-32 x 1/4" rd. hd.)

2шт.

11

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER - lock, #8

2шт.

12

A40276

SPRING

ARM & SPRING KIT - brush

1шт.

A40279

STUD

TERMINAL & HOLDER KIT (not shown)

1шт.

13

NSS

NOT SOLD SEPARAT

HOLDER - brush, ground

1шт.

14

NSS

NOT SOLD SEPARAT

RIVET - brush holder

2шт.

15

NSS

NOT SOLD SEPARAT

HOLDER - insulated brush

1шт.

16

NSS

NOT SOLD SEPARAT

RIVET - brush holder

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - rivet

1шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - insulation, terminal

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER - plain, termainal

1шт.

20

NSS

NOT SOLD SEPARAT

INSULATION - brush holder

1шт.

21

NSS

NOT SOLD SEPARAT

STUD - field terminal

1шт.

22

NSS

NOT SOLD SEPARAT

BUSHING - insulation , field terminal

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - insulation, field terminal

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - plain, field terminal

1шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

26

129-121

NUT,1/4"-28, G5

NUT, (Terminal) 1/4"-28, G5

2шт.

27

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

28

129-37

NUT,#10-32

NUT, , Field terminal #10-32

2шт.

29

NSS

NOT SOLD SEPARAT

SHOE - pole

2шт.

30

A40273

SPARE PART COIL ASSY. - field (incl, ref. 21 and 31)

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

2шт.

32

A25886

ARMATURE

ARMATURE, Includes: Ref. 33

1шт.

BOTH GENERATOR ASSY & ARMATURE IS DRILLED & TAPPED AT END OF SHAFT FOR TACH GEAR SHOWN ON PAGE 100 REF. #26.

1шт.

33

NSS

NOT SOLD SEPARAT

SNAP RING - spacer stop

1шт.

34

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

35

NSS

NOT SOLD SEPARAT

SPACER - retainer

1шт.

36

A25616

SPARE PART HEAD ASSY. - drive end, Includes: Ref. 37 - 45

1шт.

37

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

38

NSS

NOT SOLD SEPARAT

WASHER - felt, drive end

2шт.

39

NSS

NOT SOLD SEPARAT

PLATE - bearing retainer

1шт.

40

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: plate-head

1шт.

41

NSS

NOT SOLD SEPARAT

RETAINER - bearing, outer

1шт.

42

A25618

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - drive end

1шт.

43

173-227

SCREW,Sl Rnd Hd, #10 - 24 x 1/2", SST

SCREW - #10-32 x 1/2" rd. hd.

3шт.

44

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

45

NSS

NOT SOLD SEPARAT

PIN - locating

1шт.

46

NSS

NOT SOLD SEPARAT

SPACER - fan & pulley

1шт.

47

14503

SPARE PART FAN - ventilating

1шт.

48

G4521

PULLEY

PULLEY - drive

1шт.

49

A25619

SPARE PART NUT -, Serial Range: pulley-shaft

1шт.

50

92-11

WASHER - lock, pulley nut

1шт.
