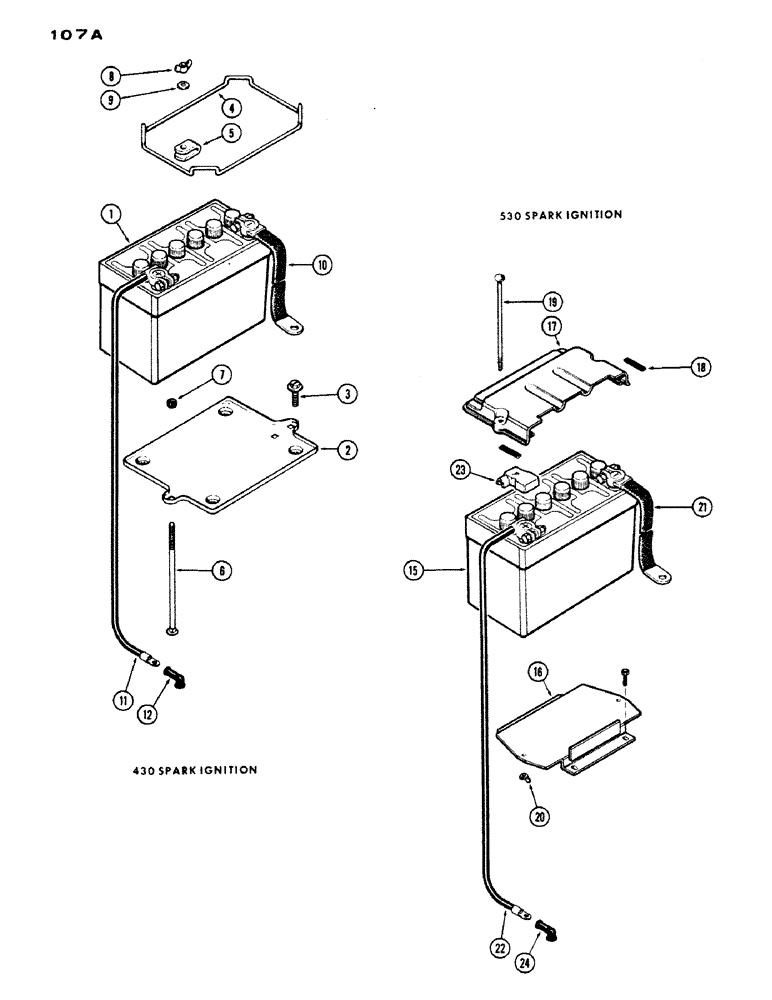

Запчасти Case IH 430 (107A) - BATTERY AND ATTACHING PARTS, 430, 148, SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

G44805

X

BATTERY - 12 volt, 430 (148) spark ignition engine

1шт.

2

G16909

PAN

- battery base

1шт.

3

193-513

SCREW,SEMS, Hex Hd, 5/16"-18 x 1/2"

- 5/16 x 1-1/2" N.C. pan hd. (Sems)

4шт.

4

A35009

SECURING STRAP

FRAME - hold down, battery

1шт.

5

A35010

CLIP

CLAMP - battery hold down frame

2шт.

6

111-213

CARRIAGE BOLT,Short NK, 5/16"-18 x 9", G2

BOLT - hold down, 5/16 x 9" N.C. hd. sq. nk.

2шт.

7

G46096

RETAINER

- rubber, hold down bolt

2шт.

8

G49020

NUT

- wing, 5/16" N.C.

2шт.

9

195-103

WASHER,5/16"

- (3/8 x 7/8 x 5/64")

2шт.

10

A36368

STRAP

- battery ground (15")

1шт.

11

A27987

CABLE

-, Serial Range: battery-solenoid

1шт.

12

A21753

CAP

BOOT - solenoid terminal

1шт.

15

G44805

X

BATTERY - 12 volt, 530 (159) spark ignition engine

1шт.

16

G30267

BASE

PAN - battery base, 530 (159) spark ignition

1шт.

17

G30268

COVER

- battery hold down, Includes: Ref. 18, 530 (159) spark ignition

1шт.

18

G46164

MOULDING - cover (2" long), 530 (159) spark ignition

2шт.

19

111-213

CARRIAGE BOLT,Short NK, 5/16"-18 x 9", G2

BOLT - cover, 5/16 x 9" N.C. rd. hd. sq. nk., 530 (159) spark ignition

2шт.

20

G49020

NUT

- wing (5/16" N.C.), 530 (159) spark ignition

2шт.

21

A36368

STRAP

- battery ground (15" long), 530 (159) spark ignition

1шт.

22

A27987

CABLE

- battery to solenoid, 530 (159) spark ignition

1шт.

23

G46879

COVER

- battery terminal, 530 (159) spark ignition

1шт.

24

A21753

CAP

BOOT - solenoid terminal, 530 (159) spark ignition

1шт.
