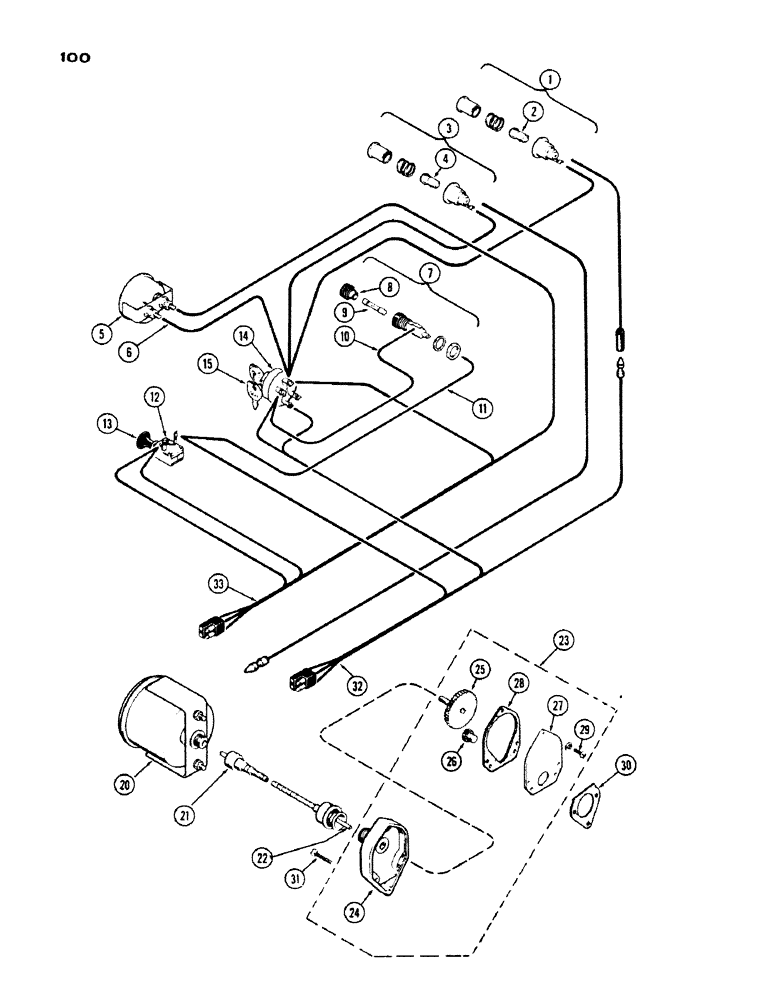

Запчасти Case IH 430 (100) - INSTRUMENTS AND WIRING, 430 SERIES (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A24085
LAMP
ASSY. - warning generator, Includes: Ref. 2
1шт.
2
A24354
BULB
- warning lamp (#57 red)
1шт.
3
A24084
LAMP
ASSY. - engine oil pressure, Includes: Ref. 4
1шт.
4
A24354
BULB
- warning lamp (#57 red)
1шт.
5
A24080
GAUGE
ASSY. - engine temperature
1шт.
6
A24078
ELECTRICAL WIRE
WIRE - temp. gauge to ignition switch
1шт.
7
A22874
HOLDER
ASSY. - fuse, Includes: Ref. 8
1шт.
8
A10958
CAP
- fuse holder
1шт.
10
A22875
ELECTRICAL WIRE
WIRE - fuse to starting switch (Replaces A22876)
1шт.
11
A22875
ELECTRICAL WIRE
WIRE - fuse to light switch
1шт.
12
G13142
IGNITION SWITCH
SWITCH ASSY. - light, Includes: Ref. 13
1шт.
13
G13141
KNOB
- light switch
1шт.
14
A24510
SWITCH
- starting (w/diesel eng.), w/keys Includes: Ref. 15
1шт.
14
A24511
SWITCH
- starting w/key (w/spark ign. eng.), Includes: Ref. 15
1шт.
15
A24509
KEY
- ignition switch (Set of 2)
1шт.
20
A37767
TACHOMETER
- 4 speed trans. (incl. hourmeter)
1шт.
20
A37768
TACHOMETER
- 8 speed trans. (incl. hourmeter)
1шт.
21
G45121
HOUSING
CABLE ASSY. - tach. drive (49-1/8" w/diesel eng.), Includes: Ref. 22
1шт.
21
G45230
HOUSING
CABLE ASSY. - tach. drive (46-1/8" w /spark ign.eng.), Includes: Ref. 22
1шт.
22
A24523
KIT
SHAFT - replacement core
1шт.
23
A36818
DRIVE
ASSY. - tachometer (on generator), Includes: Ref. 24 - 29
1шт.
24
NSS
NOT SOLD SEPARAT
HOUSING (Order A36818)
1шт.
25
A36522
GEAR WHEEL
GEAR - driven
1шт.
26
G46306
GEAR WHEEL
GEAR - drive
1шт.
27
G46307
COVER - housing
1шт.
28
G46882
GASKET
- cover
1шт.
29
187-1108
SCREW - #8-32 x 3/8" pan hd.
3шт.
30
G46878
GASKET
- drive, Serial Range: assy.-generator
1шт.
31
193-518
SCREW,SEMS, Pan Hd, #8-32 x 1"
- drive to generator (#8 x 1 pan hd.)
3шт.
32
A24076
PLUG
HARNESS - wire (w/red plug)
1шт.
33
A21613
HARNESS
- wire (w/black plug)
1шт.
Выбрано товаров: 32
