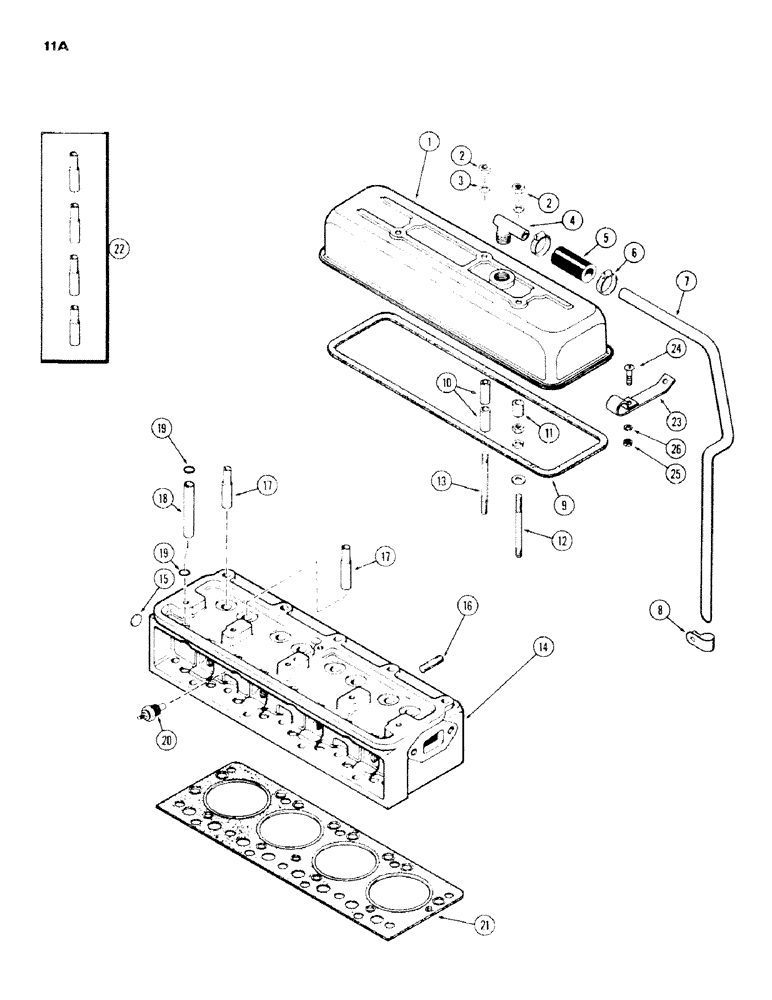

Запчасти Case IH 430 (011A) - CYLINDER HEAD ASSEMBLY, 430, 148B, SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A37212

COVER

- valve and head

1шт.

2

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

3

A29277

WASHER

- plain, cover nut

3шт.

4

A9155

90 ELBOW

- breather, Serial Range: tube-cover

1шт.

5

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

2шт.

7

A37417

TUBE - breather

1шт.

8

D35026

CLAMP -, Serial Range: tube-block

1шт.

9

A30009

GASKET

-, Serial Range: cover-head

1шт.

10

A29999

SPACER

- cover (25/64 x 35/64 x 1-19/32")

2шт.

11

A30065

SPACER

- cover (25/64 x 35/64 x 17/32")

2шт.

12

G49505

STUD

- cover (3/8" N.C. x 4-5/8" w/2" thrd.)

2шт.

13

G49504

STUD

- cover (3/8" N.C. x 4-5/8" w/1" thrd.)

2шт.

14

G11909

HEAD ASSY. - cylinder (Order G11888) (See Figure 10 for head assy. & Figure 12 for valves), Includes: Ref. 15 - 19

1шт.

15

41-8

PLUG

- rear (1-1/8" dia.)

1шт.

16

A29431

STUD

- manifold (3/8" N.C. x 1-3/4")

7шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - valve (Order ref. 22) (2-11/16" long)

8шт.

18

G11360

TUBE,0.687" OD x 3.687" L

- push rod

8шт.

19

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - tube seal (11/16 x 7/8 x 3/32")

16шт.

20

A21462

SENDER UNIT

SENDER - heat gauge

1шт.

21

G10672

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

22

A30270

GUIDE

SET - intake & exhaust valve (Set of 4)

2шт.

23

A38134

SPRING

CLIP - breather, Serial Range: tube-manifold

1шт.

24

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- 1/4 x 1/2" N.C. rd. hd.

1шт.

25

25-104

NUT,1/4"-20, G5

1шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
