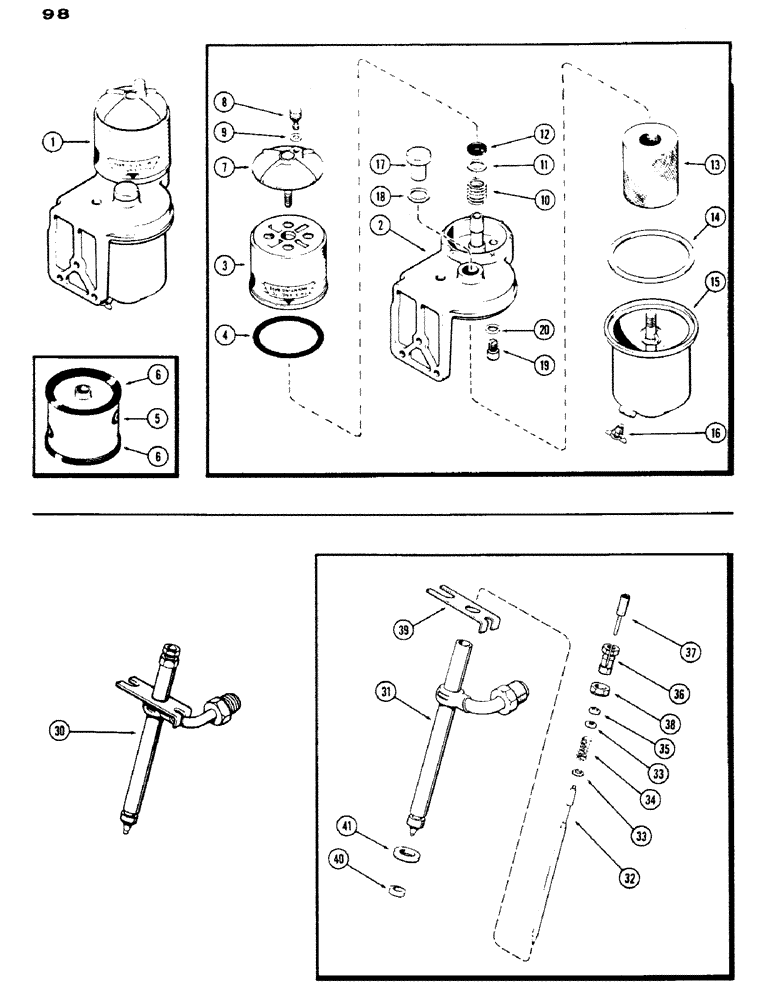

Запчасти Case IH 430 (098) - FUEL FILTER, 430-530, 188, DIESEL ENGINE (03) - FUEL SYSTEM

1

A35735

FILTER

ASSY. - fuel, complete, Includes: Ref. 2 - 20

1шт.

2

A35664

HEAD

- mounting, fuel filter

1шт.

3

A37187

FILTER, ELEMENT

FILTER KIT - final, Includes: Ref. 4

1шт.

4

A37188

GASKET

- final filter (See ref. 6)

1шт.

5

A35668

FILTER

KIT - final (Order A37187), Includes: Ref. 6

1шт.

6

G46895

GASKET

- final filter (See ref. 4)

2шт.

7

A35672

CAP

ASSY. - final filter, Includes: Ref. 8 and 9

1шт.

8

A35971

SCREW,1/4" - 20 x 0.695"

VALVE - bleeder

1шт.

9

NLS

NO LONGER SERVICED

GASKET - bleeder valve

1шт.

10

A35669

SPRING

- final filter

1шт.

11

A35670

WASHER

- final filter

1шт.

12

A35671

GASKET

- rubber, final filter

1шт.

13

A35863

FILTER, ELEMENT

ELEMENT KIT - primary filter, Includes: Ref. 14

1шт.

14

A28056

GASKET

- filter body

1шт.

15

A37099

FUEL FILTER

BODY - primary filter

1шт.

16

217-102

PLUG, DRAIN

VALVE - drain (1/8 P.T.)

1шт.

17

A21131

NUT

- primary filter body

1шт.

18

A28055

GASKET

-, Serial Range: nut-head

1шт.

19

G49080

PLUG

- drain

1шт.

20

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - drain plug (Replaces G46886)

1шт.

30

A37836

NOZZLE

ASSY. - fuel injector, Includes: Ref. 31 - 41

4шт.

Whenever nozzle is removed from head this seal Ref. 40 and washer Ref. 41 must be replaced before nozzle is installed back in head.

1шт.

A140829R

REMAN-INJECT NOZZLE

430 (1/65-12/69), 530, BOTH S/N 8297801 TO 8650135, Reman For New P/N A37836

4шт.

A140829R

REMAN-INJECT NOZZLE

Return Number

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A37836), injection

1шт.

32

NSS

NOT SOLD SEPARAT

VALVE - nozzle (Order A37836), injection

1шт.

33

A41401

SEAT

- pressure spring, injection nozzle

2шт.

34

A41444

VALVE SPRING

SPRING - pressure adjusting, injection nozzle

1шт.

35

A41407

WASHER

- ball type, injection nozzle

1шт.

36

A40409

SCREW - pressure adjusting, injection nozzle

1шт.

37

A40408

SCREW - lift adjusting, injection nozzle

1шт.

38

A42424

LOCK NUT

- lock (Replaces A41404), injection nozzle

1шт.

39

A41405

PLATE

- locating, nozzle, injection

1шт.

40

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injection nozzle

1шт.

41

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain, injection nozzle

1шт.
