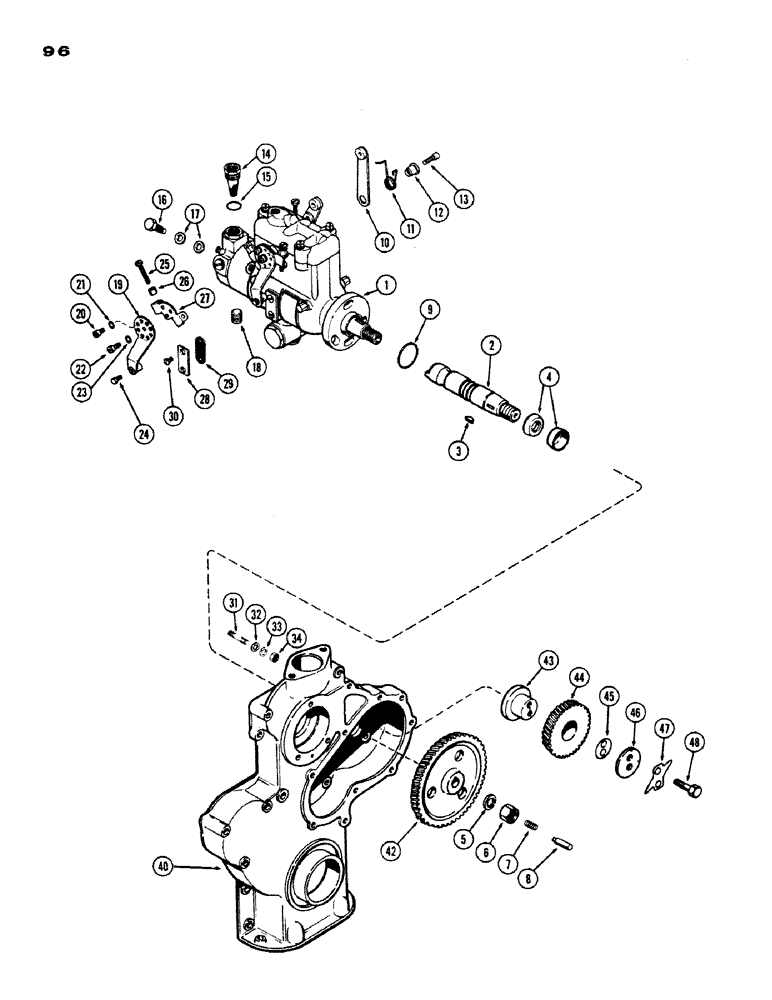

Запчасти Case IH 430 (096) - FUEL INJECTION PUMP AND DRIVE, 430-530, 188, DIESEL ENGINE (03) - FUEL SYSTEM

1

G37030

PUMP ASSY. - fuel injection (430) (1750 RPM) (H.M.S. No. DBGFCC431-24AJ), Includes: Ref. 2 - 30

1шт.

1

A35773

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection (530 w/std. clutch) (1900 RPM) (H.M.S. No. DBGFCC431-30AJ), Includes: Ref. 2 - 30

1шт.

1

A35774

PUMP

ASSY. - fuel injection (530 w/Case O-Matic) (2100 RPM) (H.M.S. No. DBGFCC431-27AJ), Includes: Ref. 2 - 30

1шт.

2

G47113

SHAFT

- drive

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

4

R14711

SEAL

- drive shaft

2шт.

5

192-24

LOCK WASHER,9/16"

WASHER, LOCK, , Drive shaft 9/16"

1шт.

6

25-159

JAM NUT,Jam, 9/16"-18, G5

- jam, 9/16" N.F. hex.

1шт.

7

G48502

SPRING

- thrust, pump drive shaft

1шт.

8

G47128

PLUNGER

- thrust spring

1шт.

9

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube

1шт.

10

G45338

ARM

- throttle

1шт.

11

G48505

SPRING

- throttle arm

1шт.

12

G49621

RETAINER

- throttle arm spring

1шт.

13

G49079

SET SCREW

SCREW - throttle arm

1шт.

14

CAS73671

FILTER, ELEMENT

CAP & FILTER

1шт.

15

51200280

SEAL

- filter

1шт.

16

73613

SCREW

- connector, injection tube

4шт.

17

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw

8шт.

18

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

1шт.

19

G45337

ARM

- shut-off

1шт.

20

73646

SCREW

- position, shut-off arm

1шт.

21

493-21017

LOCK WASHER,Int Tooth, #8

WASHER - position screw

1шт.

22

73670

SCREW

- retaining, shut-off arm

1шт.

23

73630

LOCK WASHER

WASHER - retaining screw

1шт.

24

463-2086

SCREW,Slotted Hex Hd, #8-32 x 3/8"

- pivot

1шт.

25

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- adjusting, high idle

1шт.

26

51200274

NUT

- high idle screw

1шт.

27

NSS

NOT SOLD SEPARAT

LEVER - shut-off

1шт.

28

G46330

COVER

- timing window

2шт.

29

51200272

GASKET

- cover

2шт.

30

51200263

SCREW

- timing cover

4шт.

31

G11204

STUD

- pump mounting (3/8" N.C. x 1-7/16")

3шт.

32

A30043

WASHER

- mounting stud

3шт.

33

92-6

LOCK WASHER,3/8"

3шт.

34

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

40

A38088

COVER ASSY. - timing gears (See Figure 66)

1шт.

40

A36823

COVER

ASSY. - timing gears (See Figure 67A)

1шт.

42

G2076

GEAR

- drive, injection pump

1шт.

43

G11726

HUB

- idler gear, pump drive

1шт.

44

G11852

GEAR

- idler (includes bushing)

1шт.

45

G11728

SHIM,.005" Thk

Idler gear .005" Thk

1шт.

45

G11729

SHIM,.006" Thk

Idler gear .006" Thk

1шт.

45

G11730

SHIM,.007" Thk

Idler gear .007" Thk

1шт.

45

G11731

SHIM,.009" Thk

Idler gear .009" Thk

1шт.

46

G11732

PLATE

- thrust, idler gear

1шт.

47

G11746

PLATE

- lock, idler gear

1шт.

48

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.
