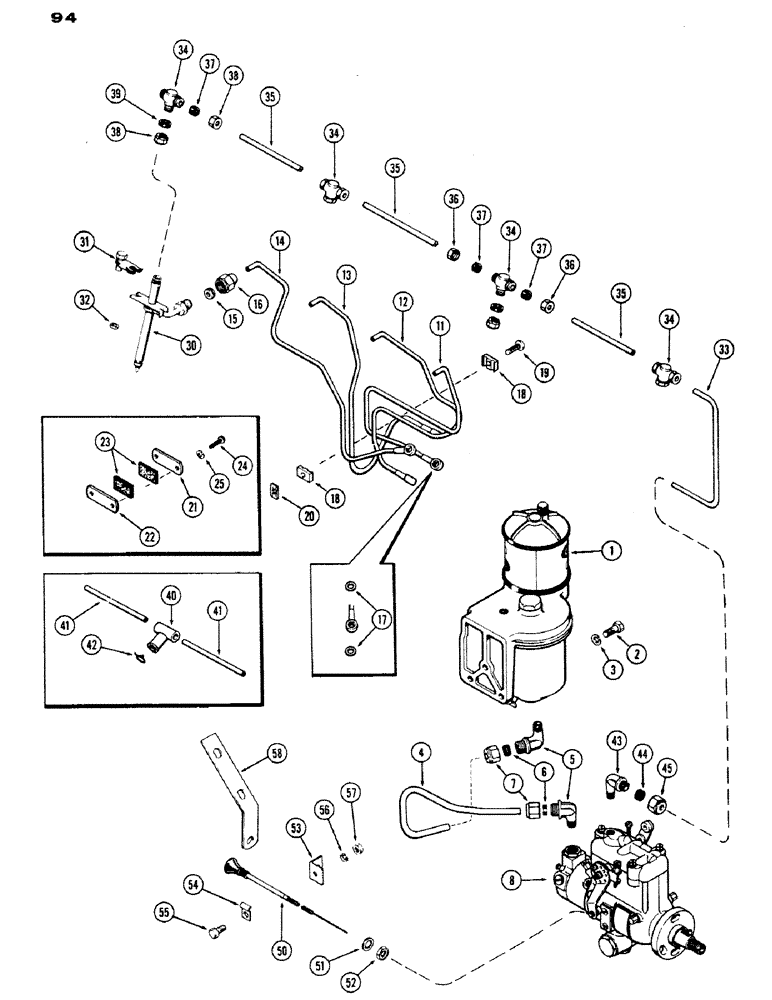

Запчасти Case IH 430 (094) - FUEL INJECTION SYSTEM, 430-530, 188, DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2627377 (03) - FUEL SYSTEM

1

A35735

FILTER

ASSY. - fuel (See Figure 98)

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

3

92-5

LOCK WASHER,5/16"

3шт.

4

A36566

TUBE

LINE - fuel, Serial Range: filter-pump

1шт.

5

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 1/4" P.T., Includes: Ref. 6 and 7

2шт.

6

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

7

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

8

G37030

PUMP ASSY. - injection (430) (See Figure 96)

1шт.

8

A35773

PUMP, FUEL INJECTION

PUMP ASSY. - injection (530 w/std. clutch) (See Figure 96)

1шт.

8

A35774

PUMP

ASSY. - injection (530 w/Case-O-Matic) (See Figure 96)

1шт.

11

A41391

TUBE

ASSY. - pump to #1 inj. (incl. Refs. 15, 16 & 17)

1шт.

12

A41392

TUBE

ASSY. - pump to #2 inj. (incl. Refs. 15, 16 & 17)

1шт.

13

A41393

TUBE

ASSY. - pump to #3 inj. (incl. Refs. 15, 16 & 17)

1шт.

14

S41394

TUBE ASSY. - pump to #4 inj. (incl. Refs. 15, 16 & 17)

1шт.

15

A37850

PIPE FITTING

SLEEVE - tube

1шт.

16

A37851

NUT

- tube

1шт.

17

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - screw connector

2шт.

18

A58709

BRACKET

CLAMP - inj. tubes (1st used eng. ser. no. 2651269)

4шт.

19

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

BOLT - clamp (#10-24 x 1" rd. hd.)

2шт.

20

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - clamp bolt (#10 Tinnerman)

2шт.

21

A27978

CLAMP

- injection tubes (w/out tapped holes) (Used prior to eng. ser. no. 2651269)

2шт.

22

A38186

CLAMP - injection tubes (w/tapped holes) (Used prior to eng. ser. no. 2651269)

2шт.

23

A27980

CUSHION

- tube clamps (3/4 x 1-1/4 x 1/8" cork) (Used w/A27978 & A38166 clamps)

4шт.

24

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp, #10-24 x 1" rd. hd.

4шт.

25

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

30

A37836

NOZZLE

ASSY. - fuel injector (See Figure 98)

4шт.

A140829R

REMAN-INJECT NOZZLE

430 (1/65-12/69), 530, BOTH FUEL INJECTION SYSTEM, 430-530, 188, DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2627377, Reman For New P/N A37836

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

31

A37837

CLAMP

ASSY. - injector nozzle

4шт.

32

A37839

SPACER

- nozzle clamp

4шт.

33

A38158

TUBE

- leak-off, injection pump to tee (or boot)

1шт.

34

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - nozzle leak-off (metal)

4шт.

35

A38644

TUBE

- leak-off (3-7/8" long)(Used w/A58960 tee)

3шт.

36

87017024

TUBE NUT,1/2"-24

NUT - leak-off tube (For 1/4" O.D. tube)

8шт.

37

222-102

SLEEVE,1/4" Tube

l, Leak-off tube 1/4" Tube

8шт.

38

A58961

NUT

- nozzle (Used w/A58960 tee)

4шт.

39

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- nozzle cap (rubber) (Used w/A58961 nut)

4шт.

40

A37838

BOOT

- nozzle leak-off (nylon) (Order 3-A38644, 4-A58960, 4-A58961, 4-A58962, 8-222-102 & 8-22-112)

4шт.

41

A37840

TUBE

- leak-off (4-3/16" long) (Used w/A37838 boot)

3шт.

42

214-104

HOSE CLAMP,#9, 9/16", Spring

CLAMP - spring type (Used w/A37838 boot)

4шт.

43

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - inj. pump leak-off, 1/4" tube, Includes: Ref. 44 and 45

1шт.

44

222-102

SLEEVE,1/4" Tube

1шт.

45

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

50

A38454

CONTROL LEVER

CONTROL - fuel shut-off (Replaces A36573)

1шт.

51

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

52

86585245

SPECIAL NUT,JAM, 5/8" - 18

- control, 3/8" N.F. jam

1шт.

53

A38448

BRACKET - clip mounting

1шт.

54

A26673

CLIP

- control cable

1шт.

55

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Clip Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

56

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

57

25-104

NUT,1/4"-20, G5

1шт.

58

A38450

BRACKET - shut-off control, rear

1шт.
