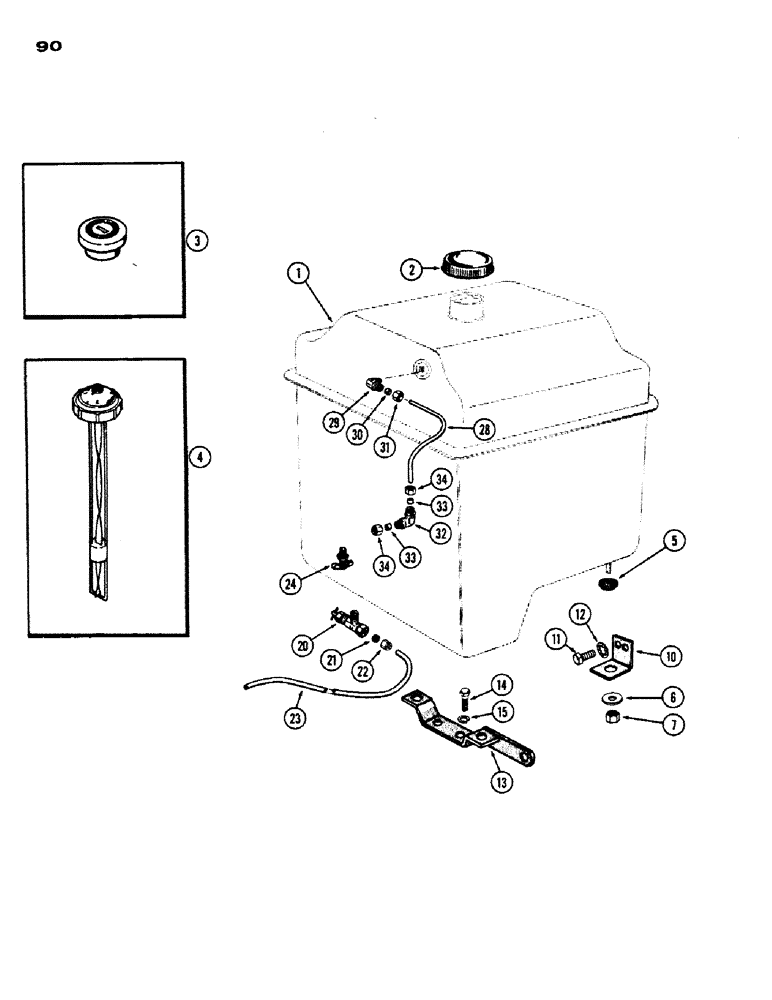

Запчасти Case IH 430 (090) - FUEL TANK, 430, 188, DIESEL ENGINE (03) - FUEL SYSTEM

1

A35712

TANK - fuel

1шт.

2

A32119

CAP

- fuel tank (See ref. 3 & 4)

1шт.

3

A32120

CAP

- fuel tank, locking type (Includes keys) (See ref. 4)

1шт.

4

A38947

GAUGE

CAP - fuel tank, w/gauge

1шт.

5

A7336

CUSHION

- rubber, tank stud

3шт.

6

B18261

WASHER

- tank stud

3шт.

7

131-352

LOCK NUT,3/8"-16, GA

NUT - lock, tank stud (3/8" N.C. Gripco)

3шт.

10

G10691

SUPPORT - rear, fuel tank

1шт.

11

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

12

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

13

G30407

SUPPORT - front, fuel tank

1шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

20

G13311

VALVE

ASSY. - needle, fuel line, Includes: Ref. 21 and 22

1шт.

21

222-104

SLEEVE,3/8" Tube

- 1/4" tube

1шт.

22

222-114

NUT,5/8"-24

NUT - 1/4" tube

1шт.

23

A35715

TUBE

LINE - fuel, Serial Range: valve-filter

1шт.

24

217-102

PLUG, DRAIN

VALVE - tank drain

1шт.

28

G45381

LINE - fuel leak-off return

1шт.

29

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- return line to tank (5/16" O.D. x 1/8" P.T.), Includes: Ref. 30 and 31

1шт.

30

222-103

SLEEVE,5/16" Tube

1шт.

31

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

32

222-133

ELBOW,90 Degree, 9/16"-24

- manifold (5/16" O.D.), Includes: Ref. 33 and 34

1шт.

33

222-103

SLEEVE,5/16" Tube

2шт.

34

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

2шт.
