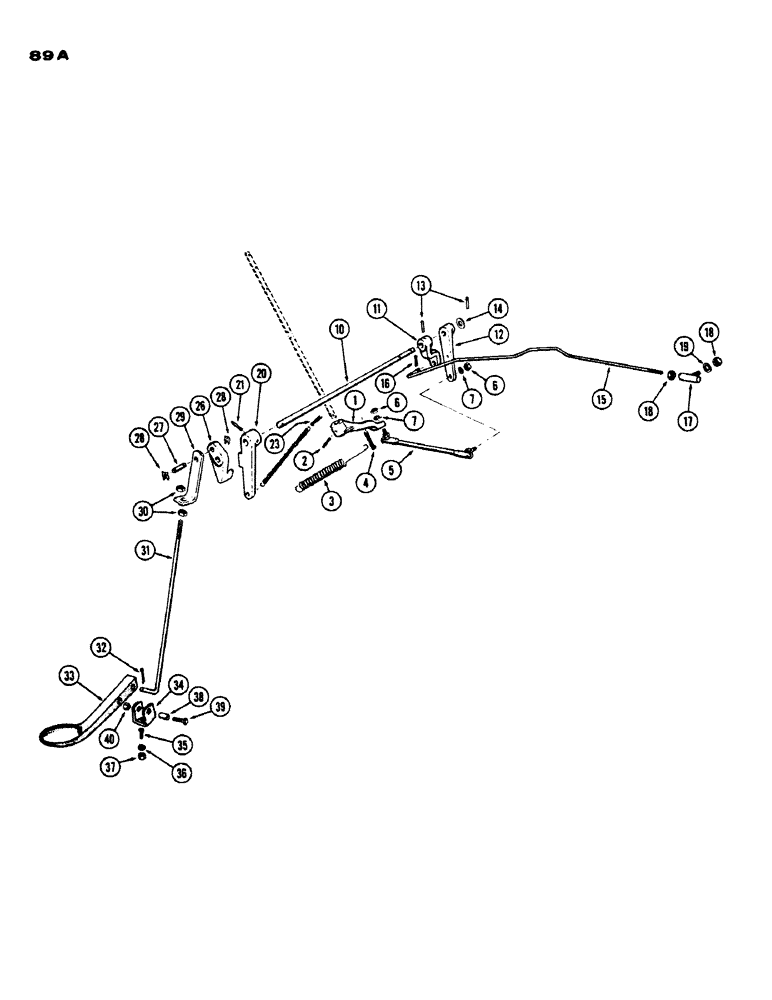

Запчасти Case IH 430 (089A) - LOWER THROTTLE LINKAGE, 430 DIESEL (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
A36693
LEVER
- lower, throttle shaft
1шт.
2
138-75
LOCK PIN,5/32" x 7/8", Slotted
PIN, 5/32" x 7/8", Slotted
1шт.
3
A30082
SPRING
- return, hand throttle lever
1шт.
4
132-26
COTTER PIN
PIN - split (Cotter), 3/32" x 3/4"
1шт.
5
G45128
LINK
- throttle lever
1шт.
6
25-114
NUT,1/4"-28, G5
- 1/4" N.F. hex.
2шт.
7
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
10
G15568
SHAFT - cross, throttle control
1шт.
11
A35716
LEVER - cross shaft
1шт.
13
138-75
LOCK PIN,5/32" x 7/8", Slotted
PIN, 5/32" x 7/8", Slotted
2шт.
14
195-29
WASHER,7/16"
- (15/32 x 59/64 x 5/64")
1шт.
15
A35717
ROD - cross, Serial Range: shaft-pump
1шт.
16
132-26
COTTER PIN
PIN - split (Cotter), 3/32" x 3/4"
1шт.
17
A10329
BALL JOINT,1/4" - 28 x 1"
-, Serial Range: rod-pump
1шт.
18
25-114
NUT,1/4"-28, G5
- 1/4" N.F. hex.
2шт.
19
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
20
G1082
LEVER
- R.H., cross shaft
1шт.
21
138-75
LOCK PIN,5/32" x 7/8", Slotted
PIN, 5/32" x 7/8", Slotted
1шт.
22
A29988
SPRING
- control lever
1шт.
23
132-26
COTTER PIN
PIN - split (Cotter), 3/32" x 3/4"
1шт.
26
G1314
LEVER - actuating, foot throttle
1шт.
27
G49056
PIN - pivot, Serial Range: link-lever
1шт.
28
A27720
SNAP RING
RING - retaining, pivot pin
2шт.
29
G16898
LINK - connecting, Serial Range: yoke-lever
1шт.
30
25-116
NUT,Hex, 3/8"-24, G5
- 3/8" N.F. hex.
2шт.
31
G15693
ROD - foot pedal
1шт.
32
132-26
COTTER PIN
PIN - split (Cotter), 3/32" x 3/4"
1шт.
33
G15692
PEDAL
- foot, throttle
1шт.
34
G15694
BRACKET
- pivot, foot pedal
1шт.
35
77-512
SCREW
- 5/16 x 3/4" N.C. truss hd.
2шт.
36
193-9
LOCK WASHER,Ext Tooth, 5/16"
WASHER, LOCK, Ext Tooth, 5/16"
2шт.
37
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N.C. hex.
2шт.
38
G49618
BUSHING
- pivot, foot pedal
1шт.
39
14-528
BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5
1шт.
40
25-115
NUT,5/16"-24, G5
- 5/16" NF hex
1шт.
Выбрано товаров: 36
