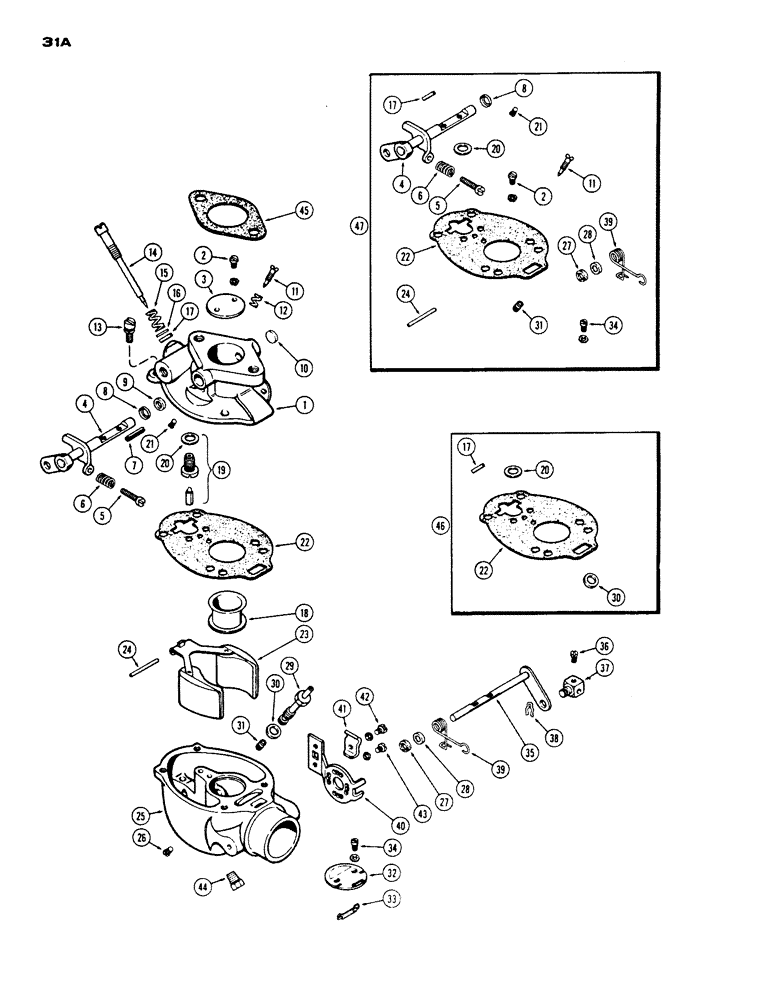

Запчасти Case IH 430 (031A) - G11050 CARBURETOR, 430, 148B, SPARK IGNITION ENGINE (03) - FUEL SYSTEM

A38243

CARBURETOR

ASSY. (Marvel-Schebler TSX-635) (Replaces G11050), Includes: Ref. 1 - 44

1шт.

G11050 IS A REPAIR KIT.

1шт.

1

B51905

THROTTLE BODY ASSY, Includes: Ref. 2 - 10

1шт.

2

B51685

SCREW

- throttle plate

2шт.

Part of Repair Kit, P/N B51926

1шт.

3

B51669

PLATE - throttle

1шт.

4

B51662

SHAFT

ASSY. - throttle, Includes: Ref. 5 and 6

1шт.

Part of Repair Kit, P/N B51926

1шт.

5

B51680

SCREW - throttle stop

1шт.

Part of Repair Kit, P/N B51926

1шт.

6

B51742

SPRING

- throttle stop screw

1шт.

Part of Repair Kit, P/N B51926

1шт.

7

B51862

PIN - throttle stop

1шт.

8

B51853

RETAINER

- packing, throttle shaft

1шт.

Part of Repair Kit, P/N B51926

1шт.

9

B51805

PACKING

- throttle shaft

1шт.

10

B51852

CUP

- throttle shaft

1шт.

11

B51788

NEEDLE

- idle adjusting

1шт.

Part of Repair Kit, P/N B51926

1шт.

12

B51744

SPRING

- idle needle

1шт.

13

B51683

SCREW,#12 - 24 x 5/8"

- throttle, Serial Range: body-bowl

4шт.

14

B51797

NEEDLE BEARING CAGE

NEEDLE ASSY. - high speed

1шт.

15

B51732

VALVE SPRING

SPRING - high speed needle

1шт.

16

B51870

WASHER

- high speed needle

1шт.

17

B51723

GASKET

- high speed needle

1шт.

Part of Gasket Kit, P/N A30241

1шт.

Part of Repair Kit, P/N B51926

1шт.

18

B51815

VENTURI

1шт.

19

A30244

SHUT-OFF VALVE

VALVE ASSY. - float (includes seat & gasket), Includes: Ref. 20

1шт.

20

B51703

GASKET

- valve seat

1шт.

Part of Gasket Kit, P/N A30241

1шт.

Part of Repair Kit, P/N B51926

1шт.

21

B51828

JET

- idle

1шт.

Part of Repair Kit, P/N B51926

1шт.

22

B51708

GASKET

- bowl

1шт.

Part of Gasket Kit, P/N A30241

1шт.

Part of Repair Kit, P/N B51926

1шт.

23

B51772

FLOAT

ASSY

1шт.

24

B51779

SHAFT

- float

1шт.

Part of Repair Kit, P/N B51926

1шт.

25

B51644

BODY

BOWL ASSY., Includes: Ref. 26 - 28

1шт.

26

B51700

SCREW

- nozzle hold plug

1шт.

27

B51803

PACKING

- choke shaft

1шт.

Part of Repair Kit, P/N B51926

1шт.

28

B51854

RETAINER

- choke shaft packing

1шт.

Part of Repair Kit, P/N B51926

1шт.

29

B51826

NOZZLE INJECTION

NOZZLE ASSY. - main

1шт.

30

B51720

GASKET

- main nozzle

1шт.

Part of Gasket Kit, P/N A30241

1шт.

31

B51839

JET

- power

1шт.

Part of Repair Kit, P/N B51926

1шт.

32

B51763

VALVE

FLY ASSY. - choker, Includes: Ref. 33

1шт.

33

B51735

SPRING

- choker fly

1шт.

34

B51685

SCREW

- choker, Serial Range: fly-shaft

2шт.

Part of Repair Kit, P/N B51926

1шт.

35

B51757

SHAFT

ASSY. - choke, Includes: Ref. 36 - 38

1шт.

36

B51698

SCREW,0.164" - 32 x 5/16"

- swivel

1шт.

37

B51764

PIVOT

SWIVEL - choke rod

1шт.

38

B51877

SPLIT PIN

PIN - choke swivel

1шт.

39

B51741

SPRING - choke return

1шт.

Part of Repair Kit, P/N B51926

1шт.

40

B51770

BRACKET ASSY. - choke, Includes: Ref. 41 and 42

1шт.

41

B51765

CLIP

- choke bracket

1шт.

42

B51687

SCREW -, Serial Range: clip-bracket

1шт.

43

B51686

SCREW - choker bracket

1шт.

44

B51887

PLUG

- drain

1шт.

45

A29956

GASKET

-, Serial Range: carburetor-manifold

1шт.

46

A30241

GASKET KIT

- (incl. ref. 17, 20, 22 & 30)

1шт.

47

B51926

KIT

REPAIR KIT - (incl. ref. 2, 4, 5, 6, 8, 11, 17, 20, 21, 22, 24, 27, 28, 31, 34 & 39)

1шт.
