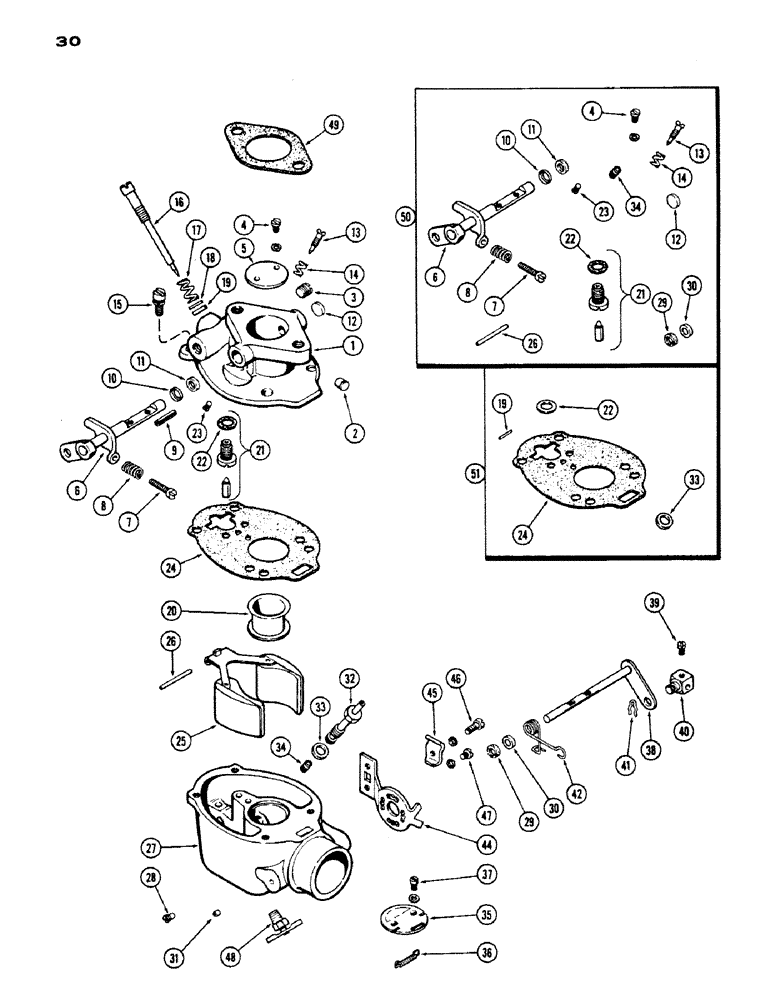

Запчасти Case IH 430 (030) - A38243 CARBURETOR, 430,148B, SPARK IGNITION ENGINE (03) - FUEL SYSTEM

A38243

CARBURETOR

ASSY. - (M.S.#TSX-936-10-4982), Includes: Ref. 1 - 48

1шт.

1

A41582

BODY ASSY. - throttle, Includes: Ref. 2 - 12

1шт.

2

B51874

PLUG - idle drilling

1шт.

3

221-1041

PLUG

- fuel inlet

1шт.

4

B51685

SCREW

- throttle plate

2шт.

5

B51669

PLATE - throttle

1шт.

6

B51662

SHAFT

ASSY. - throttle, Includes: Ref. 7 and 8

1шт.

7

B51680

SCREW - stop, throttle

1шт.

8

B51742

SPRING

- throttle stop screw

1шт.

9

B51862

PIN - throttle stop

1шт.

10

B51853

RETAINER

- shaft parking

1шт.

11

B51805

PACKING

- throttle shaft

1шт.

12

B51852

CUP

PLUG - cap, shaft end

1шт.

13

B51788

NEEDLE

- idle adjusting

1шт.

14

B51744

SPRING

- idle needle

1шт.

15

B51683

SCREW,#12 - 24 x 5/8"

- throttle, Serial Range: body-bowl

4шт.

16

B51797

NEEDLE BEARING CAGE

NEEDLE ASSY. - high speed

1шт.

17

B51732

VALVE SPRING

SPRING - high speed needle

1шт.

18

B51870

WASHER

- high speed needle

1шт.

19

B51723

GASKET

- high speed needle

1шт.

20

A41567

VENTURI

- carb, throat, 25/32" dia.

1шт.

21

A41581

VALVE

& SEAT ASSY. - float, Includes: Ref. 22

1шт.

22

B51703

GASKET

- valve seat

1шт.

23

B51833

JET - idling

1шт.

24

B51708

GASKET

- throttle, Serial Range: body-bowl

1шт.

25

B51772

FLOAT

- carb. fuel

1шт.

26

B51779

SHAFT

- float

1шт.

27

A41587

BOWL ASSY. - carburetor, Includes: Ref. 28 - 31

1шт.

28

B51700

SCREW

PLUG - nozzle hole

1шт.

29

B51803

PACKING

- choke shaft

1шт.

30

B51854

RETAINER

- choke shaft packing

1шт.

31

A41026

PLUG - choke shaft

1шт.

32

A41585

NOZZLE - main

1шт.

33

B51720

GASKET

- main nozzle

1шт.

34

A41584

- power

1шт.

35

B51763

VALVE

FLY ASSY. - choke shaft, Includes: Ref. 36

1шт.

36

B51735

SPRING

- choke fly

1шт.

37

B515685

SCREW - choke fly mounting

2шт.

38

B51757

SHAFT

ASSY. - choke, Includes: Ref. 39 - 41

1шт.

39

B51698

SCREW,0.164" - 32 x 5/16"

- choke shaft swivel

1шт.

40

B51764

PIVOT

SWIVEL - choke control

1шт.

41

B51877

SPLIT PIN

PIN - cotter, swivel retaining

1шт.

42

B51741

SPRING - choke return

1шт.

F12777

BRACKET ASSY. - choke shaft, Includes: Ref. 44 - 46

1шт.

44

B51767

BRACKET

1шт.

45

B51765

CLIP

- choke bracket

1шт.

46

B59373

SCREW - clip mounting

1шт.

47

B51686

SCREW - choke bracket mounting

1шт.

48

B51879

FITTING

COCK - drain

1шт.

49

A29956

GASKET

-, Serial Range: carburetor-manifold

1шт.

50

A41580

KIT

- carburetor repair

1шт.

51

A30241

GASKET KIT

- carburetor over-haul

1шт.

A48388

KIT

Used to repair Carburetor

1шт.
