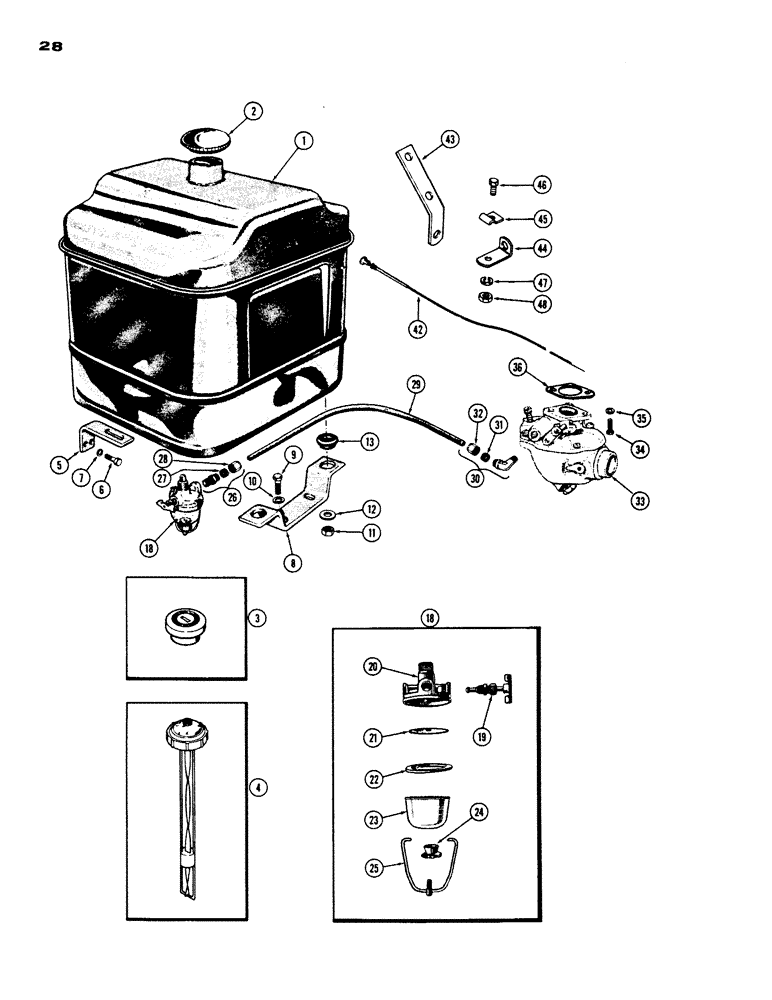

Запчасти Case IH 430 (028) - FUEL TANK, 430, 148B, SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

G14471

FUEL TANK

TANK - fuel

1шт.

2

A32119

CAP

- fuel tank (See ref. 3 & 4)

1шт.

3

A32120

CAP

- fuel tank, lock type (includes keys) (See ref. 4) Keys not furnished for repairs

1шт.

4

A38947

GAUGE

CAP - fuel tank, w/gauge

1шт.

5

G10691

SUPPORT - rear, fuel tank

1шт.

6

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

7

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

8

G17028

SUPPORT - front, fuel tank

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

131-352

LOCK NUT,3/8"-16, GA

NUT - lock, tank stud (3/8" N.C. Gripco)

3шт.

12

B18261

WASHER

- tank stud

3шт.

13

A7336

CUSHION

- rubber, tank support

3шт.

18

A30049

STRAINER ELEMENT

STRAINER ASSY. - fuel, Includes: Ref. 19 - 25

1шт.

19

A11205

VALVE

1шт.

20

A11214

HEAD

1шт.

21

A11211

FILTER SCREEN

SCREEN

1шт.

22

A11208

GASKET

- bowl

1шт.

23

A11209

BOWL

- fuel

1шт.

24

A11210

ADJUSTER

CUP & NUT

1шт.

25

A11212

BAIL

ASSY.

1шт.

26

222-604

FITTING,1/2"-24 x 1/8" NPT, Comp

CONNECTOR ASSY. - tube, 5/16" O.D. x 1/8" P.T., Includes: Ref. 27 and 28

1шт.

27

222-653

SLEEVE,5/16" Tube, Comp

- 5/16" tube

1шт.

28

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16" tube

1шт.

29

A37183

SPARE PART

LINE - fuel, Serial Range: strainer-carburetor

1шт.

30

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

ASSY. 5/16" tube x 1/8" P.T., Includes: Ref. 31 and 32

1шт.

31

222-653

SLEEVE,5/16" Tube, Comp

- 5/16" tube

1шт.

32

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16" tube

1шт.

33

A38243

CARBURETOR

ASSY. - (Repairs Figure 30) (1st used Eng. Ser. Nos. 2638308, 2638309, 2638311 thru 2638313 and 2638325 and after)

1шт.

33

G11050

X

CARBURETOR ASSY. - (Repairs Figure 31A) (Used prior to ser. no. 2638308 also used ser. no. 2638310)

1шт.

34

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

35

92-5

LOCK WASHER,5/16"

2шт.

36

A29956

GASKET

-, Serial Range: carburetor-manifold

1шт.

42

A38458

CONTROL

ROD - choke control (Replaces A36578)

1шт.

43

A38450

BRACKET - choke control, rear

1шт.

44

A38448

BRACKET - choke control, front

1шт.

45

A26673

CLIP

- choke cable ret.

1шт.

46

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Clip to bracket Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

47

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

48

25-104

NUT,1/4"-20, G5

1шт.
