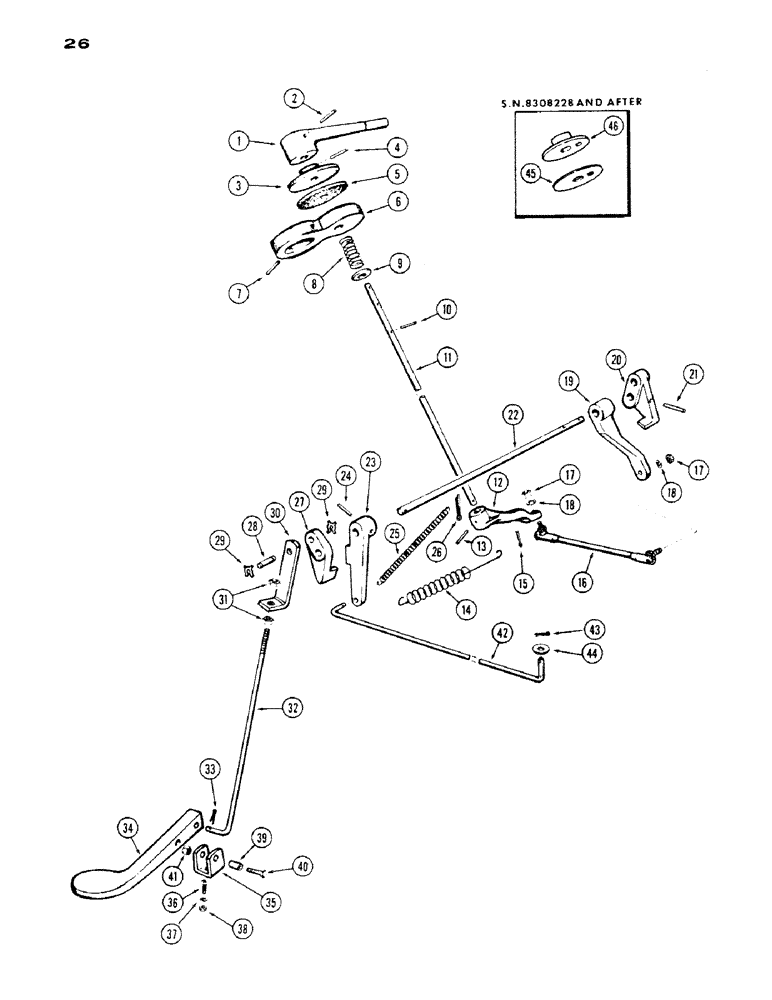

Запчасти Case IH 430 (026) - THROTTLE LINKAGE, 430, 148B, SPARK IGNITION ENGINE, WITH DUAL FRONT WHEEL (03) - FUEL SYSTEM

1

G1085

LEVER

- hand

1шт.

2

138-82

LOCK PIN,5/32" x 1 5/8", Slotted

PIN, 5/32" x 1 5/8", Slotted

1шт.

3

G1078

PLATE

- friction disc (See ref. 45 & 46), Serial Range: -8308228

1шт.

4

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

5

G10786

DISC

- friction, cork

1шт.

6

G1077

SUPPORT - friction plate

1шт.

7

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN - roll, 1/8 x 3/4"

2шт.

8

G46214

SPRING

- tension

1шт.

9

195-29

WASHER,7/16"

- (15/32 x 59/64 x 1/16")

1шт.

10

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

11

A36737

SHAFT - hand throttle lever

1шт.

12

A36693

LEVER

- lower, hand throttle shaft

1шт.

13

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

14

A30082

SPRING

- return, hand throttle lever

1шт.

15

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

1шт.

16

G45128

LINK

- throttle lever

1шт.

17

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

G1313

LEVER - actuating, cross shaft

1шт.

20

G1315

LEVER - L.H., cross shaft

1шт.

21

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

22

G16897

SHAFT - cross, throttle control

1шт.

23

G1082

LEVER

- governor control rod

1шт.

24

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

25

A29988

SPRING

- return, control lever

1шт.

26

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

1шт.

27

G1314

LEVER - actuating, foot throttle

1шт.

28

G49056

PIN - pivot, foot throttle link

1шт.

29

A27720

SNAP RING

RING - retaining, pivot pin

2шт.

30

G16898

LINK - connecting, foot throttle rod

1шт.

31

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

32

G15693

ROD - foot throttle

1шт.

33

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

1шт.

34

G15692

PEDAL

- foot throttle

1шт.

35

G15694

BRACKET

- pivot, foot pedal

1шт.

36

77-512

SCREW

- 5/16" x 3/4" N.C. truss hd.

2шт.

37

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

38

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

39

G49618

BUSHING

- pivot, foot pedal

1шт.

40

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

1шт.

41

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

42

G11379

ROD - throttle, Serial Range: lever-governor

1шт.

43

132-26

COTTER PIN

PIN- split (Cotter), 3/32" x 3/4"

2шт.

44

195-102

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

1шт.

45

A38016

DISC - throttle plate, Start Serial: 8308228

1шт.

46

A38017

PLATE

- friction disc, Start Serial: 8310228

1шт.
