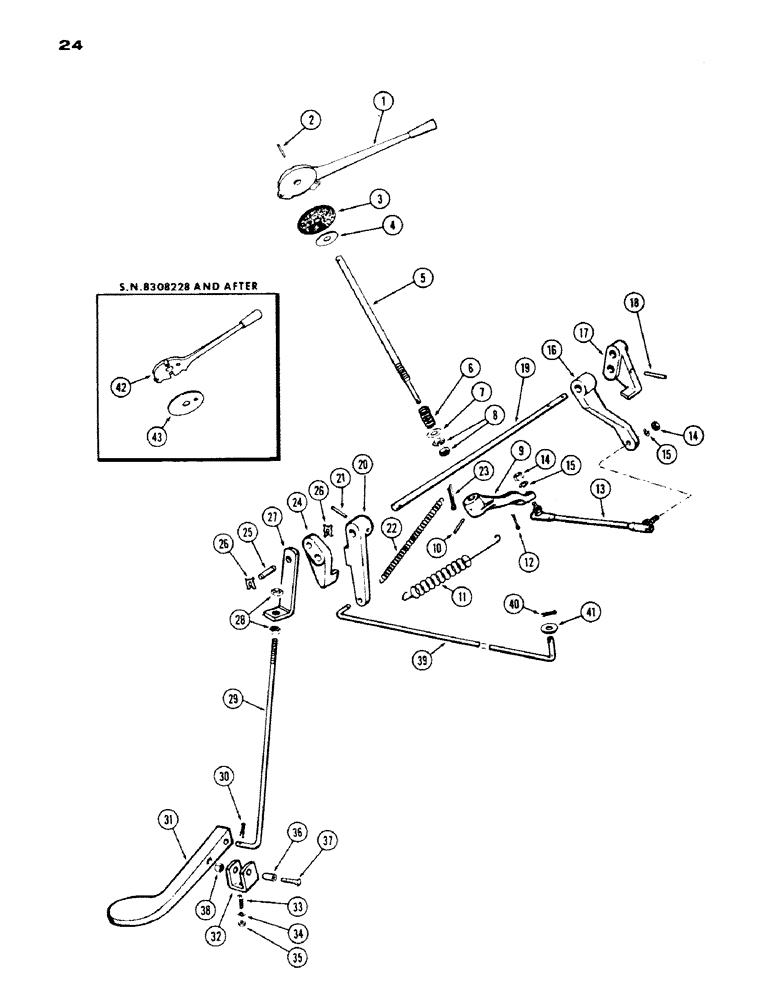

Запчасти Case IH 430 (024) - THROTTLE LINKAGE, 430, 148B, SPARK IGNITION ENGINE, WITH ADJUSTABLE FRONT AXLE (03) - FUEL SYSTEM

1

A36513

LEVER

- hand (See ref. 42 & 43), Serial Range: -8308228

1шт.

2

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

3

A11969

GASKET

DISC - friction

1шт.

4

A32838

WASHER

- spacer

1шт.

5

A37139

SHAFT

- hand lever

1шт.

6

A34113

SPRING

- tension

1шт.

7

195-2051

WASHER,17/32" x 13/16" x .060"

- (17/32 x 13/16 x 16 ga.)

1шт.

8

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex.

2шт.

9

A36693

LEVER

- lower, hand throttle shaft

1шт.

10

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

11

A30082

SPRING

- return, hand lever

1шт.

12

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

1шт.

13

G45128

LINK

- intermediate

1шт.

14

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

G1313

LEVER - actuating, cross shaft

1шт.

17

G1315

LEVER - override, foot throttle

1шт.

18

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

19

G16897

SHAFT - cross, throttle control

1шт.

20

G1082

LEVER

- governor control link

1шт.

21

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

22

A29988

SPRING

- control lever

1шт.

23

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

1шт.

24

G1314

LEVER - actuating, foot throttle

1шт.

25

G49056

PIN - pivot, foot throttle link

1шт.

26

A27720

SNAP RING

RING - retaining, pivot pin

2шт.

27

G16898

LINK - foot throttle, Serial Range: rod-lever

1шт.

28

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

29

G15693

ROD - foot throttle

1шт.

30

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

1шт.

31

G15692

PEDAL

- foot throttle

1шт.

32

G15694

BRACKET

- pivot, foot pedal

1шт.

33

77-512

SCREW

- 5/16" x 3/4" N.C. truss hd.

2шт.

34

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

35

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

36

G49618

BUSHING

- pivot, foot pedal

1шт.

37

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

1шт.

38

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

39

G11379

ROD - throttle, Serial Range: lever-governor

1шт.

40

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

2шт.

41

195-102

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

1шт.

42

A38018

LEVER

- hand, Start Serial: 8308228

1шт.

43

A38016

DISC - throttle plate, Start Serial: 8308228

1шт.
