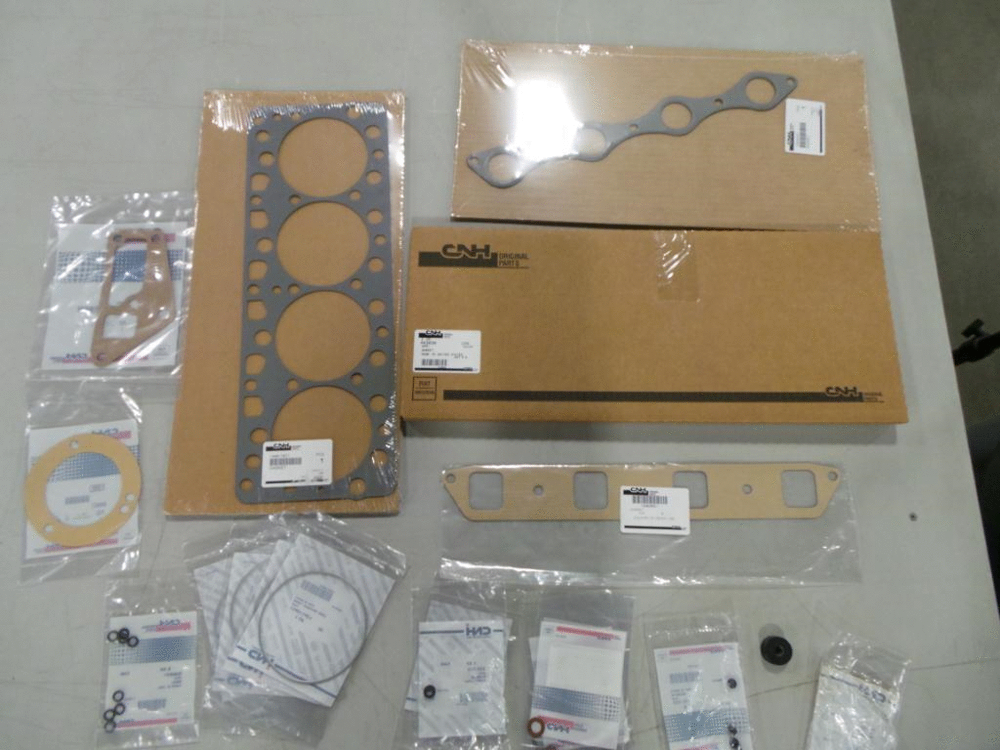

Запчасти Case IH 430 (086C) - KIT VALVE GRIND GASKETS (02) - ENGINE

1

1349118C1

GASKET KIT

Incl 2 - 14

1шт.

2

A142098

GROMMET

2шт.

3

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

2шт.

4

222-101

SLEEVE,3/16" Tube

4шт.

5

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

8шт.

6

G49068

GASKET

NIPPLE CONNECTOR

4шт.

7

1342434C1

GASKET

EXHAUST MANIFOLD

1шт.

8

1349088C1

GASKET

1шт.

9

A43030

GASKET,3.05mm Thk

1шт.

10

G46851

SEAL

INTAKE VALVE

8шт.

11

A38084

GASKET,1.27mm Thk

BODY TO CYL HEAD

1шт.

12

A38083

GASKET

WATER PUMP TP GEAR COVER

1шт.

13

1349116C1

GASKET

CYL HEAD

1шт.

14

1349114C1

SPECIAL MAT. SEAL

RING CYL HEAD GASKET FIRE

4шт.
