Запчасти Case IH 430 (085C) - ENGINE GASKET KITS, 188, DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2627377 (02) - ENGINE

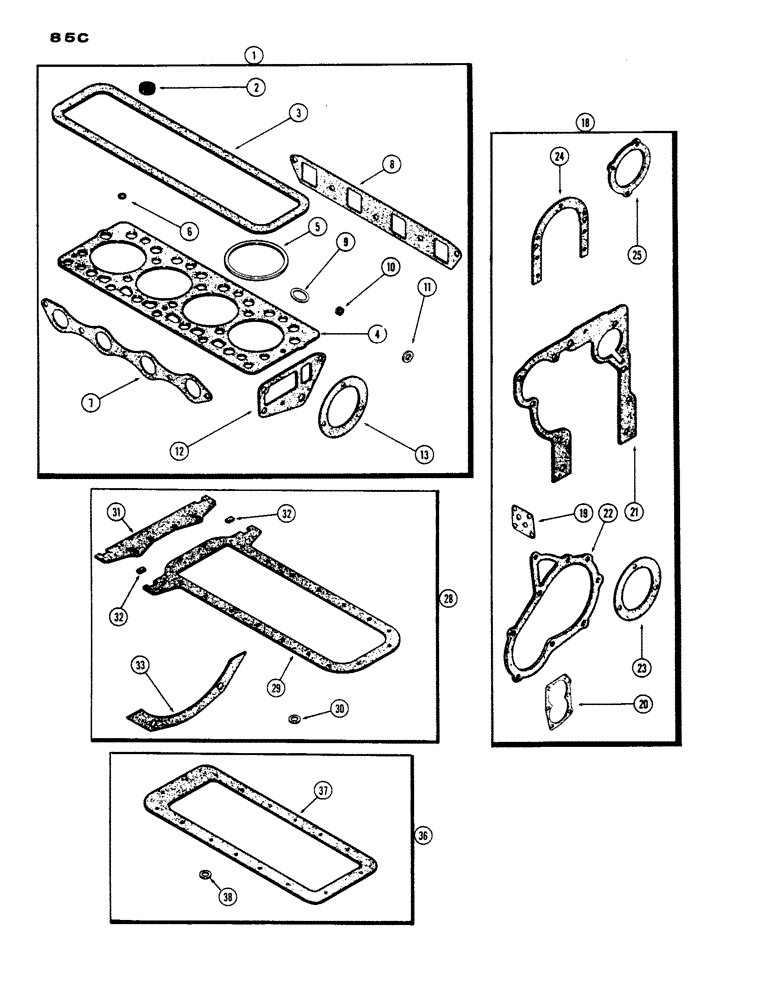

Схема запчастей Case IH 430 - (085C) - ENGINE GASKET KITS, 188, DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2627377 (02) - ENGINE
28
29
4
31
6
36
11
33
5
25
23
7
9
24
37
22
21
10
30
32
32
1
2
18
12
19
13
8
20
3
38

Артикул

Название

Примечание

Количество

1

A40707

GASKET KIT

- valve grind, Includes: Ref. 2 - 13

1шт.

For complete engine overhaul Order: 1-A40707, 1-A41426 & 1-A40713 or 1-A40712

1шт.

2

G46867

GROMMET

- valve cover (rubber)

2шт.

3

G46866

GASKET

- valve cover

1шт.

4

A36877

GASKET

-, Serial Range: head-block

1шт.

5

A36900

RING, PISTON

RING - fire, cyl. head gasket (std.)

4шт.

6

G46851

SEAL

- valve stem (rubber)

8шт.

7

G46872

MANIFOLD GASKET

- manifold, exhaust

1шт.

8

G46871

GASKET

- manifold, intake

1шт.

9

G49068

GASKET

- seat, fuel injector

4шт.

10

222-101

SLEEVE,3/16" Tube

- fuel line (For ) 3/16" Tube

4шт.

10

222-103

SLEEVE,5/16" Tube

Fuel line 5/16" Tube

4шт.

11

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injection lines

8шт.

12

A38084

GASKET,1.27mm Thk

- timing gear cover (upper) (Replaces G46858)

1шт.

13

A38083

GASKET

- water pump (Replaces G46875)

1шт.

18

A41426

KIT

GASKET KIT - cylinder block (Replaces G11950), Includes: Ref. 19 - 25

1шт.

19

G46854

GASKET

- oil mounting bracket

1шт.

20

G46852

GASKET

- oil pump cover

1шт.

21

A38228

GASKET

- timing gear cover (lower) (Replaces A46857)

1шт.

22

G46859

GASKET

- timing cover (front)

1шт.

23

A38083

GASKET

- water pump (Replaces G46875)

1шт.

24

A38196

GASKET

- rear oil seal retainer (Replaces G46802)

1шт.

25

A30042

GASKET

- power steering pump

1шт.

28

A40713

KIT

GASKET KIT - oil pan (Case-O-Matic), Includes: Ref. 29 - 33

1шт.

For complete engine overhaul Order: 1-A40707, 1-A41426 & 1-A40713 or 1-A40712

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - pan to block (Order A40713)

1шт.

30

A58608

GASKET

- drain plug

1шт.

31

A36653

GASKET

- pivot bracket

1шт.

32

A11604

OIL PAN GASKET SET

- oil pan & pivot bracket

2шт.

33

G46913

GASKET

- block to torque tube

1шт.

36

A40712

KIT

GASKET KIT - oil pan (Standard clutch), Includes: Ref. 37 and 38

1шт.

For complete engine overhaul Order: 1-A40707, 1-A41426 & 1-A40713 or 1-A40712

1шт.

37

NSS

NOT SOLD SEPARAT

GASKET - pan to block (Order A40712)

1шт.

38

A58608

GASKET

- drain plug

1шт.

Выбрано товаров: 34
