Запчасти Case IH 430 (085A) - ENGINE GASKET KITS, 188, DIESEL ENGINE, USED ENGINE SERIAL NUMBER 2627377 TO 2656844 (02) - ENGINE

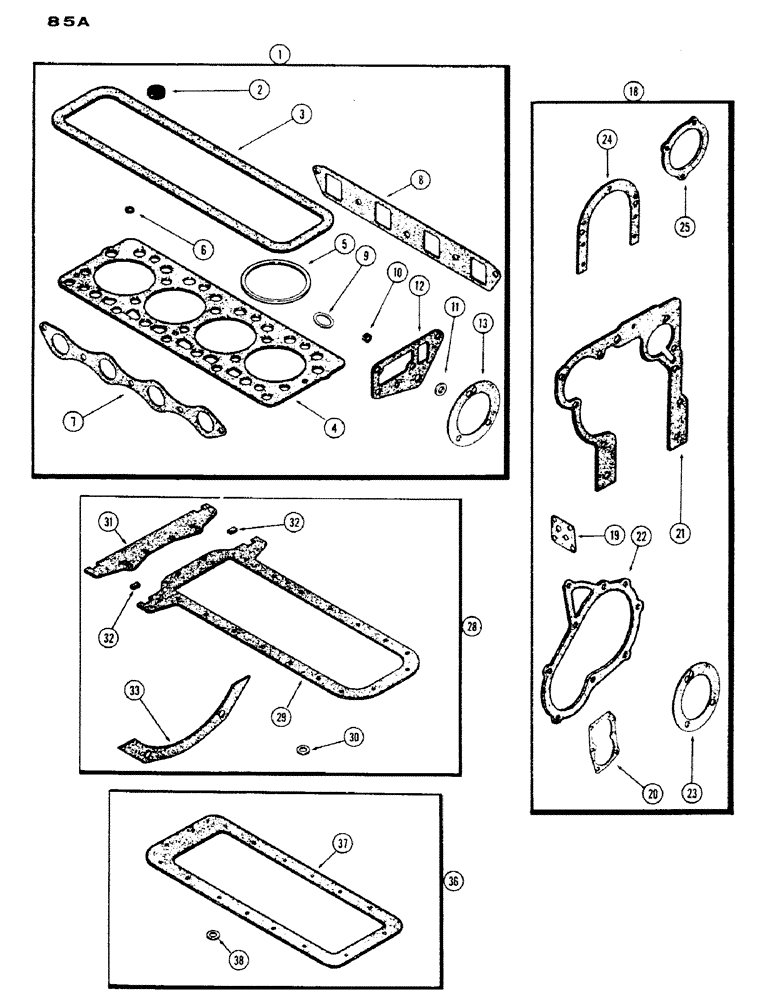

Схема запчастей Case IH 430 - (085A) - ENGINE GASKET KITS, 188, DIESEL ENGINE, USED ENGINE SERIAL NUMBER 2627377 TO 2656844 (02) - ENGINE
13
38
22
2
24
21
18
33
30
12
1
5
6
25
19
3
32
20
10
37
32
36
31
9
29
8
11
28
23
4
7

Артикул

Название

Примечание

Количество

1

A41425

GASKET

KIT - valve grind, Includes: Ref. 2 - 13

1шт.

For complete engine overhaul Order: 1-A41425, 1-A41426 & 1-A40713 or 1-A40712

1шт.

2

G46867

GROMMET

- valve cover (rubber)

2шт.

3

G46866

GASKET

- valve cover

1шт.

4

A36877

GASKET

- cylinder head

1шт.

5

A36900

RING, PISTON

RING - fire, cyl. head gasket (std.)

4шт.

6

G46851

SEAL

- valve stem (rubber)

8шт.

7

G46872

MANIFOLD GASKET

- manifold, exhaust

1шт.

8

G46871

GASKET

- manifold, intake

1шт.

9

G49068

GASKET

- fuel injector seat

4шт.

10

222-101

SLEEVE,3/16" Tube

- fuel lines (for ) 3/16" Tube

4шт.

10

222-103

SLEEVE,5/16" Tube

Fuel line 5/16" Tube

4шт.

11

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injection lines

8шт.

12

A38084

GASKET,1.27mm Thk

- timing gear cover (upper)

1шт.

13

A38083

GASKET

- water pump

1шт.

18

A41426

KIT

GASKET KIT - cylinder block, Includes: Ref. 19 - 25

1шт.

For complete engine overhaul Order: 1-A41425, 1-A41426 & 1-A40713 or 1-A40712

1шт.

19

G46854

GASKET

- oil filter mounting bracket

1шт.

20

G46852

GASKET

- oil pump cover

1шт.

21

A38228

GASKET

- timing gear cover (lower)

1шт.

22

G46859

GASKET

- timing gear cover (front)

1шт.

23

A38083

GASKET

- water pump

1шт.

24

A38196

GASKET

- rear oil seal retainer

1шт.

25

A30042

GASKET

- power steering pump

1шт.

28

A40713

KIT

GASKET KIT - oil pan (Case-o-Matic), Includes: Ref. 29 - 33

1шт.

For complete engine overhaul Order: 1-A41425, 1-A41426 & 1-A40713 or 1-A40712

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40713)

1шт.

30

A58608

GASKET

- drain plug

1шт.

31

A36653

GASKET

- pivot bracket

1шт.

32

A11604

OIL PAN GASKET SET

- oil pan & pivot bracket

2шт.

33

G46913

GASKET

- block to torque tube

1шт.

36

A40712

KIT

GASKET KIT - oil pan (Standard clutch), Includes: Ref. 37 and 38

1шт.

For complete engine overhaul Order: 1-A41425, 1-A41426 & 1-A40713 or 1-A40712

1шт.

37

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40712)

1шт.

38

A58608

GASKET

- drain plug

1шт.

Выбрано товаров: 35
