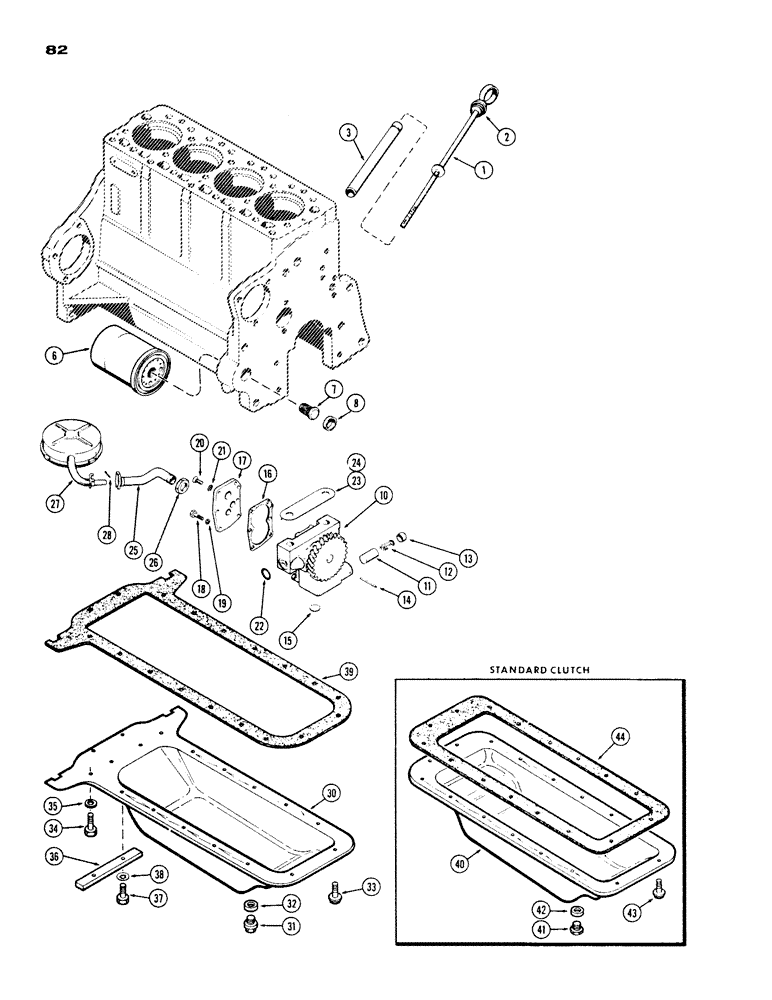

Запчасти Case IH 430 (082) - OIL PUMP, OIL FILTER, OIL PAN, 430-530, 188, DIESEL ENGINE (02) - ENGINE

1

A37148

DIPSTICK

DIPSTICK ASSY. - engine oil level, Includes: Ref. 2

1шт.

2

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick seal (3/4 x 1 x 1/8")

2шт.

3

A37149

TUBE

TUBE - oil filler & dipstick (in block)

1шт.

6

G45210

FILTER, ELEMENT

ELEMENT, FILTER FILTER - engine oil

1шт.

7

A153552

ADAPTER

ADAPTER -, Serial Range: filter-block

1шт.

8

A37207

X

PLUG - adapter opening (1" cup type)

1шт.

10

A38372

PUMP

PUMP ASSY. - oil (Replaces G37070), Includes: Ref. 11 - 21

1шт.

10

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

10

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

11

A155144

VALVE, PRESSURE RELI

- relief

1шт.

12

G48500

SPRING

SPRING - relief valve

1шт.

13

A29260

RETAINER

RETAINER - relief spring

1шт.

14

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, 1/8" x 1 1/8", Slotted

1шт.

15

41-102

PLUG,Exp, 1/2"

PLUG - pump body

2шт.

16

G46852

GASKET

GASKET - pump cover

1шт.

17

NSS

NOT SOLD SEPARAT

COVER - pump body

1шт.

18

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

BOLT - 1/8 x 1-1/4" N.C. hex. hd.

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

20

73-411

SCREW - mach., 1/4 x 5/8" flat hd.

2шт.

21

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

2шт.

22

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port (3/4 x 15/16 x 3/32")

1шт.

23

G11337

SHIM,.002" Thk

SHIM, , Pump to block .002" Thk

1шт.

24

G11338

SHIM,.005" Thk

SHIM, , Pump to block .005" Thk

1шт.

25

G45766

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST PIPE - suction

1шт.

26

223-207

LOCK NUT

NUT - lock, Serial Range: pipe-pump

1шт.

27

A30126

SPARE PART FLOAT ASSY. (includes screen)

1шт.

28

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

30

A36721

CASE

PAN - oil (w/Case-O-Matic)

1шт.

31

A14280

PLUG

PLUG - drain

1шт.

32

A58608

GASKET

GASKET - drain plug (Replaces A27927)

1шт.

33

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (includes lockwasher)

14шт.

34

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, , Rear Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

35

195-400

WASHER

WASHER - sealing (5/16")

2шт.

36

G11372

STRIP

STRIP - reinforcing (w/Case-O-Matic)

1шт.

37

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

38

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

39

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order from Figure 84)

1шт.

40

A36717

PAN

OIL PAN ASSY. - (w/std. clutch), Includes: Ref. 41 and 42

1шт.

41

A14280

PLUG

PLUG - drain.

1шт.

42

A58608

GASKET

GASKET - drain plug (Replaces A27927)

1шт.

43

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (includes lockwasher)

18шт.

44

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order from Figure 84)

1шт.
