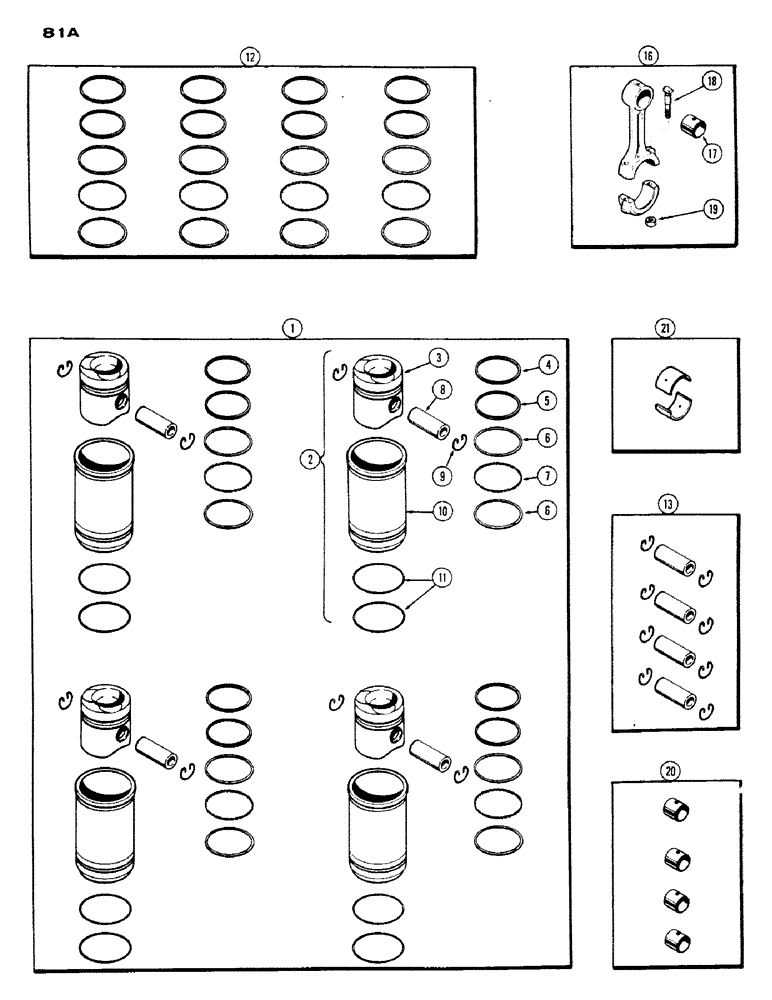

Запчасти Case IH 430 (081A) - PISTON ASSEMBLY AND CONNECTING RODS, 188, DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2656844 (02) - ENGINE

1

A37764

PISTON ASSY. - (Set of 4) (Order A42002 piston assy. & A42001 gasket kit), Includes: Ref. 2 - 11

1шт.

2

A37769

X

PISTON ASSY. - (Set of 1) (Order A42003 piston assy. & A42001 gasket kit), Includes: Ref. 3 - 11

4шт.

3

A38424

PISTON

- (Replaces G2137)

1шт.

4

G4819

RING

- compression, 1st groove (See ref. 12)

1шт.

5

G4817

RING

- compression, 2nd groove (See ref. 12)

1шт.

6

G47155

RAIL

RING - oil control, 3rd groove (See ref. 12)

2шт.

7

G47174

SPRING

SPACER - oil control ring (See ref. 12)

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 13)

1шт.

9

G46702

RING, LOCKING

RING - piston pin retaining (See ref. 13)

2шт.

10

A37763

X

SLEEVE - piston (Order 4-A38638 sleeve, 4-A38639 fire rings & 1-A38640 cyl. hd. gasket)

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

2шт.

12

G37075

RING

SET - replacement (Set of 4)

1шт.

13

A35771

KIT

PIN SET - piston (Set of 4 pins & 8 rings)

1шт.

16

G11847

ROD

ASSY. - connecting, Includes: Ref. 17 - 19

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

18

G49064

STEP BOLT

BOLT - cap

2шт.

19

G49060

NUT

- cap bolt

2шт.

20

G11953

BUSHING

SET - (Set of 4)

1шт.

21

A36500

SEAL

LINERS - conn. rod brg. (std.) (Set of 2)

4шт.

21

A36501

BEARING LINER

LINERS - conn. rod. brg. (.002" undersize) (Set of 2)

4шт.

21

A36502

LINING

LINERS - conn. rod brg. (.010" undersize) (Set of 2)

4шт.

21

A36503

BEARING LINER

LINERS - conn. rod brg. (.020" undersize) (Set of 2)

4шт.

21

A36504

KIT

LINERS - conn. rod brg. (.030" undersize) (Set of 2)

4шт.
