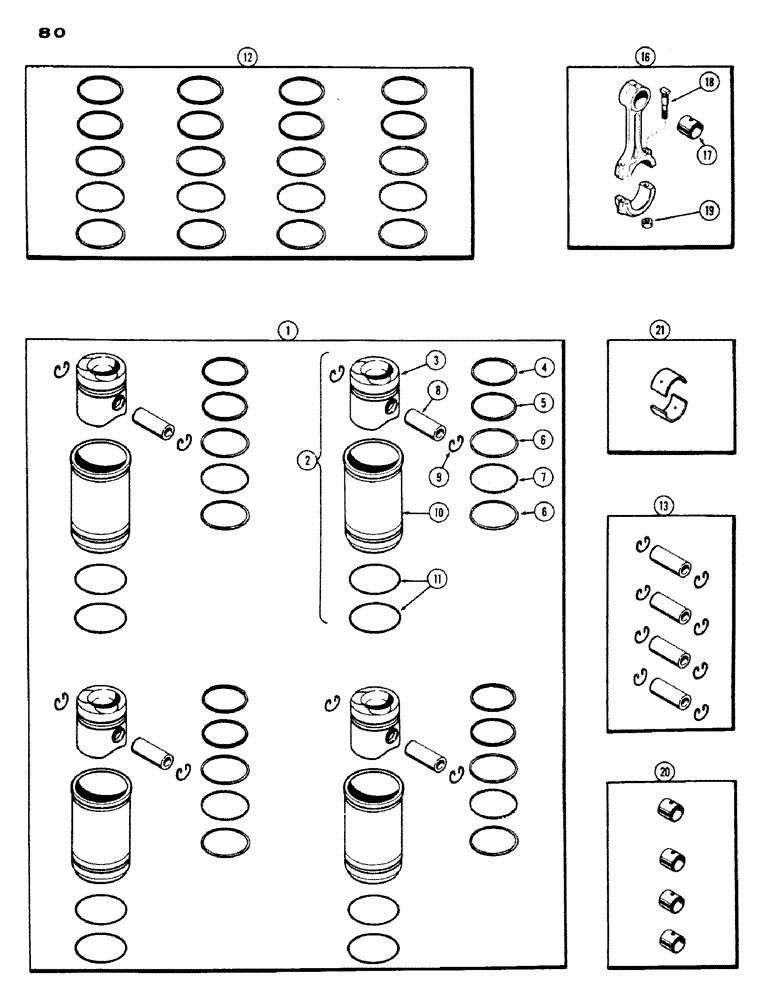

Запчасти Case IH 430 (080) - PISTON ASSEMBLY AND CONNECTING RODS, 430-530, 188, DIESEL ENGINE, FIRST USED ENGINE S/N 2656844 (02) - ENGINE

1

A42002

PISTON ASSY

. - (Set of 4), Includes: Ref. 2 - 11

1шт.

It is recommended A42001 gasket kit also be ordered

1шт.

2

A42003

PISTON

ASSY. - (Set of 1), Includes: Ref. 3 - 11

4шт.

It is recommended A42001 gasket kit also be ordered

1шт.

3

A38424

PISTON

1шт.

4

G4819

RING

- compression, 1st groove (See ref. 12)

1шт.

5

G4817

RING

- compression, 2nd groove (See ref. 12)

1шт.

6

G47155

RAIL

RING - oil control, 3rd groove (See ref. 12)

2шт.

7

G47174

SPRING

SPACER - oil control ring (See ref. 12)

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 13)

1шт.

9

G46702

RING, LOCKING

RING - piston pin retaining (See ref. 13)

2шт.

10

A38638

SLEEVE

- piston

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve sealing

2шт.

12

AG37075

RING KIT - re-ring (Set of 4)

1шт.

13

A35771

KIT

PIN SET - (Set of 4 pins & 8 rings)

1шт.

16

G11847

ROD

ASSY. - connecting, Includes: Ref. 17 - 19

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

18

G49064

STEP BOLT

BOLT - conn. rod cap

2шт.

19

G49060

NUT

- conn. rod bolt

2шт.

20

G11953

BUSHING

SET - (Set of 4)

1шт.

21

A36500

SEAL

INSERT - conn. rod brg. (std.)

4шт.

21

A36501

BEARING LINER

LINER - conn. rod brg. (.002" undersize)

4шт.

21

A36502

LINING

LINER - conn. rod brg. (.010" undersize)

4шт.

21

A36503

BEARING LINER

LINER - conn. rod brg. (.020" undersize)

4шт.

21

A36504

KIT

LINER - conn. rod brg. (.030" under size)

4шт.
