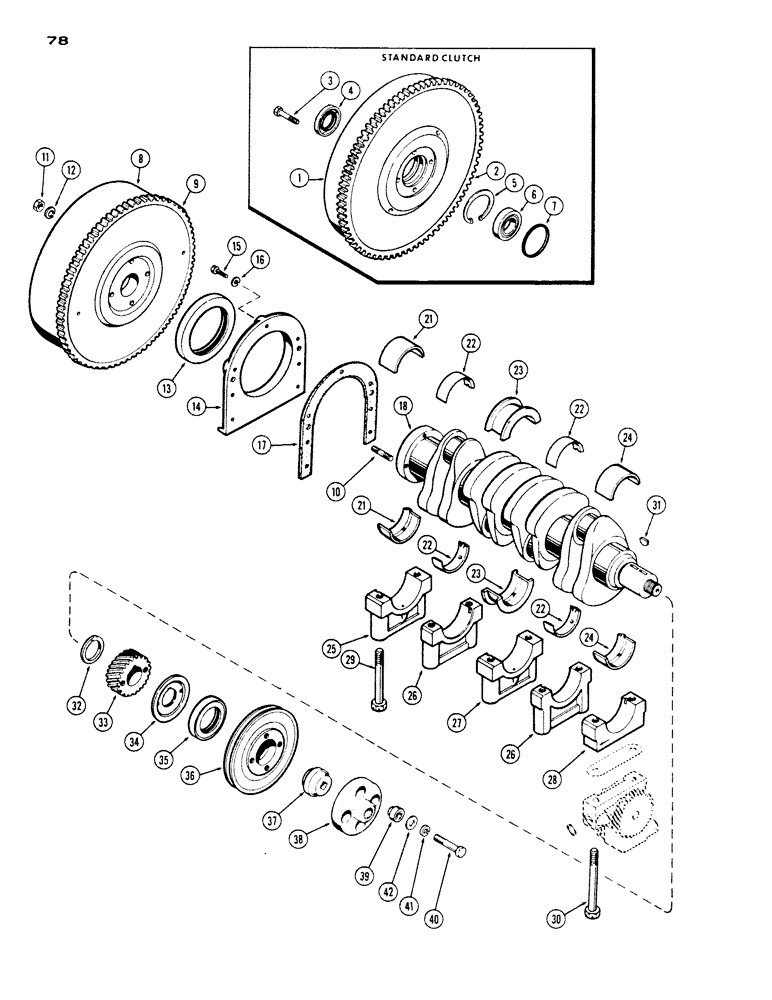

Запчасти Case IH 430 (078) - CRANKSHAFT AND FLYWHEEL, 430-530, 188, DIESEL ENGINE (02) - ENGINE

1

A37214

ASSY. - (w/std. clutch), Includes: Ref. 2

1шт.

2

G11710

GEAR

- ring (135T)

1шт.

3

A37216

BOLT

- flywheel to crankshaft (w/std. clutch)

1шт.

4

A37647

OIL SEAL

- oil, flywheel (w/std. clutch) (1-3/16 x 2-5/32 x 1/4")

1шт.

5

49482

SNAP RING,2.125", Int, #212

RING - snap, , brg. (with std. clutch) 2.125", Int, #212

1шт.

6

T17389

BALL BEARING,1.1811" ID x 2.1654" OD x 0.5118"

BEARING - flywheel (w/std. clutch)

1шт.

7

A37646

O-RING,2.237" ID x 2.443" OD x 0.103"

RING - seal, flywheel (w/std. clutch) (2-7/32 x 2-7/16 x 7/64")

1шт.

8

G11860

FLYWHEEL

ASSY. - (w/Case-O-Matic), Includes: Ref. 9

1шт.

9

G11710

GEAR

- ring (135T)

1шт.

10

A29434

STUD

- flywheel to crankshaft (w/Case-O-Matic)

4шт.

11

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

4шт.

12

92-7

LOCK WASHER,7/16"

4шт.

13

A39111

OIL SEAL

- oil, crankshaft, rear (4 x 5 x 1/2") (Replaces A36610)

1шт.

14

A38390

RETAINER

- oil seal, rear (Replaces G2017)

1шт.

15

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

15

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

17

A38196

GASKET

- retainer, rear oil seal (Replaces G46802)

1шт.

18

A39146

CRANKSHAFT

(Replaces A37211)

1шт.

21

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINERS - rear bearing (Std.) (Set of 2)

1шт.

21

A36496

LINING

LINERS - rear bearing (.002" undersize) (Set of 2)

1шт.

21

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINERS - rear bearing (.010" undersize) (Set of 2)

1шт.

21

A36498

KIT

LINERS - rear bearing (.020" undersize) (Set of 2)

1шт.

21

A36499

BEARING LINER

LINERS - rear bearing (.030" undersize) (Set of 2)

1шт.

22

A36485

LINING

LINERS - intermediate bearing (Std.) (Set of 2)

2шт.

22

A36486

LINING

LINERS - intermediate brg. (.002" undersize) (Set of 2)

2шт.

22

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINERS - intermediate brg. (.010" undersize) (Set of 2)

2шт.

22

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINERS - intermediate brg. (.020" undersize) (Set of 2)

2шт.

22

A36489

LINING

LINERS - intermediate brg. (.030" undersize) (Set of 2)

2шт.

23

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (Std.) (Set of 2)

1шт.

23

A36491

LINING

LINERS - center bearing (.002" undersize) (Set of 2)

1шт.

23

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (.010" undersize) (Set of 2)

1шт.

23

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (.020" undersize) (Set of 2)

1шт.

23

S36494

LINERS - center bearing (.030" undersize) (Set of 2)

1шт.

24

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (Std.) (Set of 2)

1шт.

24

A36481

LINING

LINERS - front bearing (.002" undersize) (Set of 2)

1шт.

24

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (.010" undersize) (Set of 2)

1шт.

24

A36483

LINING

LINERS - front bearing (.020" undersize) (Set of 2)

1шт.

24

A36484

LINING

LINERS - front bearing (.030" undersize) (Set of 2)

1шт.

25

G2129

CAP

- rear bearing liner

1шт.

26

G2128

CAP

- intermediate bearing liner

2шт.

27

G2127

CAP

- center bearing liner

1шт.

28

G2126

CAP

- front bearing liner

1шт.

29

113-444

BOLT

- bearing cap (1/2 x 4-1/2" N.C. hex.)

8шт.

30

113-445

BOLT

- oil pump & brg. cap (1/2 x 5-1/8" N.C. hex.)

2шт.

31

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft

2шт.

32

A29294

BUSHING

SPACER - thrust, crankshaft

1шт.

33

A29263

GEAR

- crankshaft (24T)

1шт.

34

A29259

SLINGER

- oil

1шт.

35

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft, front (2 x 3 x 1/2") (Replaces A36609)

1шт.

36

G11345

STRAP

PULLEY - fan & generator drive

1шт.

37

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

38

D140524

FLEXIBLE COUPLING,13T

COUPLING ASSY. - flexible, Includes: Ref. 39

1шт.

39

G36905

BLOCK

BUSHING - flex

4шт.

40

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

- 7/16 x 1-1/2" N.C. hex. hd.

4шт.

41

92-7

LOCK WASHER,7/16"

4шт.

42

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- (29/64 x 3/4 x 16 ga.)

4шт.
