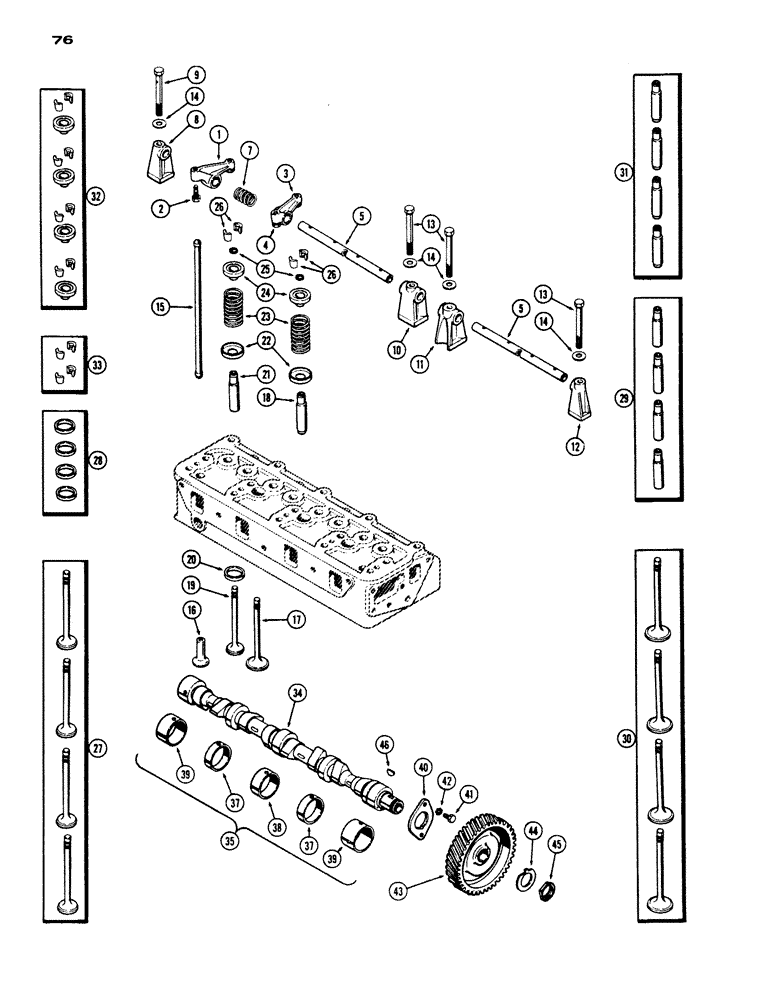

Запчасти Case IH 430 (076) - VALVE MECHANISM AND CAMSHAFT, 430-530, 188, DIESEL ENGINE (02) - ENGINE

1

G45771

ARM

ASSY. - rocker, L.H., Includes: Ref. 2

4шт.

2

G49075

ADJUSTMENT SCREW,3/8" - 24 x 0.50"

- adjusting

1шт.

3

G45770

ARM

ASSY. - rocker, R.H., Includes: Ref. 4

4шт.

4

G49075

ADJUSTMENT SCREW,3/8" - 24 x 0.50"

- adjusting

1шт.

5

A38181

SHAFT

- rocker arm (Replaces G11747 & G11743)

2шт.

7

G48501

SPRING

- rocker arm shaft

4шт.

8

A36615

BRACKET

- rear, rocker arm shaft

1шт.

9

G49067

BOLT

- drilled, rear rocker bracket

1шт.

10

G2101

BRACKET

- center, rocker arm shaft

1шт.

11

G2102

BRACKET

- intermediate, rocker shaft

2шт.

12

G2100

BRACKET

- front, rocker shaft

1шт.

13

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex. hd.

4шт.

14

A30058

WASHER

- bracket bolt

5шт.

15

G47079

ROD

- push

8шт.

16

G47077

TAPPET

LIFTER - push rod

8шт.

17

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 30)

4шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 31)

4шт.

19

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 27)

4шт.

20

NSS

NOT SOLD SEPARAT

INSERT - valve seat (Order ref. 28)

4шт.

21

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 29)

4шт.

22

G49065

SEAT

- valve spring

8шт.

23

A30025

SPRING

- valve

8шт.

24

NSS

NOT SOLD SEPARAT

RETAINER - valve spring (Order ref. 32)

8шт.

25

G46851

SEAL

- rubber, valve stem

8шт.

26

NSS

NOT SOLD SEPARAT

LOCK - retainer (Order ref. 33)

16шт.

27

A41727

VALVE

SET - exhaust (Set of 4) (Replaces G11948)

1шт.

28

G11986

KIT

INSERT SET - valve seat (Set of 4)

1шт.

29

G11946

GUIDE

SET - exhaust valve stem (Set of 4)

1шт.

30

A41726

VALVE

SET - intake (Set of 4)(Replaces G11947)

1шт.

31

G11945

GUIDE

SET - intake valve stem (Set of 4)

1шт.

32

G11927

RETAINER

SET - valve spring (Set of 4 w/locks)

2шт.

33

G11929

LOCK

SET - retainer (Set of 4)

4шт.

34

A36853

X

CAMSHAFT

1шт.

35

A41232

KIT

BUSHING SET - camshaft (pre-sized), Includes: Ref. 37 - 39

1шт.

37

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (1/2" wide)

2шт.

38

NSS

NOT SOLD SEPARAT

BUSHING - center (23/32" wide)

1шт.

39

NSS

NOT SOLD SEPARAT

BUSHING - front & rear (1-7/32" wide)

2шт.

40

A29290

PLATE

- thrust, camshaft

1шт.

41

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

- thrust plate

2шт.

42

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

43

A38931

GEAR

- camshaft (Replaces G2066)

1шт.

44

A29438

LOCK NUT

WASHER - lock, gear nut

1шт.

45

A30063

NUT

-, Serial Range: gear-camshaft

1шт.

46

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to camshaft #6, 5/32" x 5/8"

1шт.
