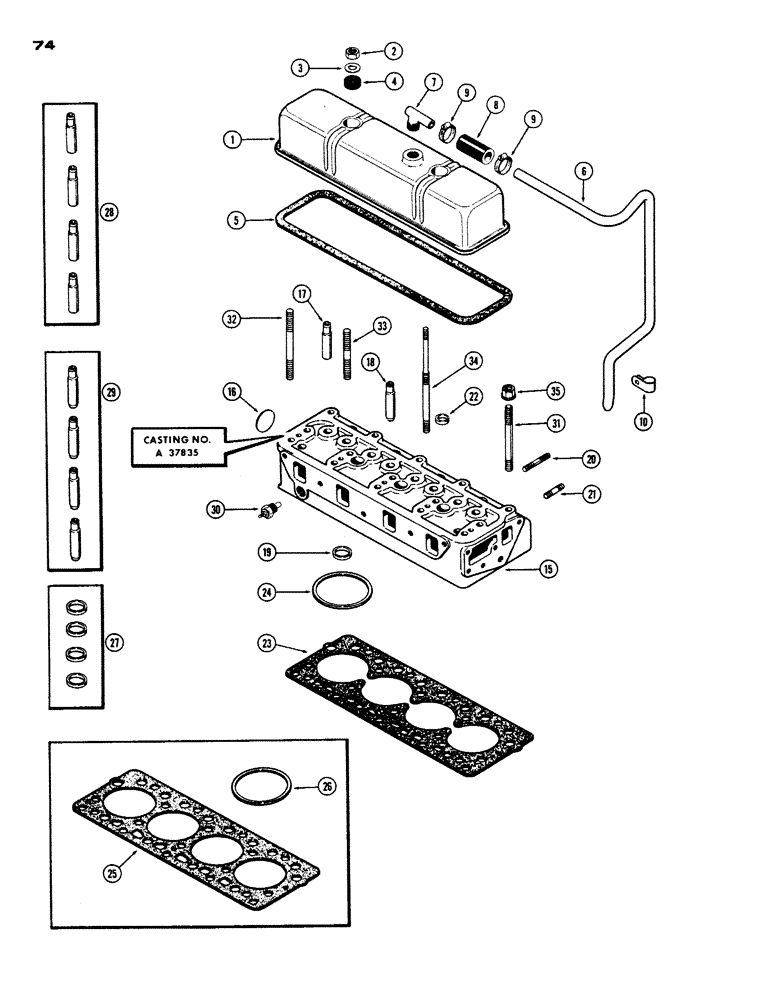

Запчасти Case IH 430 (074) - CYLINDER HEAD ASSEMBLY, 430-530, 188, DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2627377 (02) - ENGINE

1

A36815

COVER

- valve and head

1шт.

2

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

3

G49400

WASHER

- cover nut

2шт.

4

G46867

GROMMET

- rubber

2шт.

5

G46866

GASKET

-, Serial Range: cover-head

1шт.

6

A37979

X

TUBE - breather (See Figure 75A for tube used prior to ser. no. 8297960), Start Serial: 8297960

1шт.

7

A9155

90 ELBOW

- breather tube

1шт.

8

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

9

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

10

D35026

CLAMP -, Serial Range: tube-engine

1шт.

15

A37856

CYLINDER HEAD

HEAD ASSY. - cylinder (Casting No. A37835), Includes: Ref. 16 - 22

1шт.

16

A30036

PLUG

- rear, 1-3/4" expansion

1шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 28)

4шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 29)

4шт.

19

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 27)

4шт.

20

A35175

STUD

- manifold clamp (3/8" N.C. x 2-7/16")

6шт.

21

A29431

STUD

- manifold (3/8" N.C. x 1-3/4")

4шт.

22

A37207

X

PLUG - cyl. head top (1" cup type)

3шт.

23

A38640

- cylinder head (1st used eng. ser. no. 2656844)

1шт.

24

A38639

RING

- fire, cyl. head (std. w/orange mark) (4-19/64" I.D. x 4-35/64" O.D. x .070") (1st used eng. ser. no. 2656844)

4шт.

24

A38651

RING

- fire, cyl. head (oversize w/black mark) (4-19/64" I.D. x 4-35/64" O.D. x .075") (1st used eng. ser. no. 2656844)

4шт.

25

A36877

GASKET

- head to block (Used prior to eng. ser. no. 2656844)

1шт.

26

A36900

RING, PISTON

RING - fire, cylinder head (standard w/orange mark) (4-3/16" I.D. x 4-7/16" O.D. x .070") (Used prior to eng. ser. no. 2656844)

4шт.

26

A37031

RING

- fire, cylinder head (oversize w/black mark) (4-3/16" I.D. x 4-7/16" O.D. x .075") (Used prior to eng. ser. no. 2656844)

4шт.

27

G11986

KIT

INSERTS - exhaust valve seat (set of 4)

1шт.

28

G11946

GUIDE

S - exhaust valve (set of 4)

1шт.

29

G11945

GUIDE

- intake valve (set of 4)

1шт.

30

A21462

SENDER UNIT

SENDER - engine temperature

1шт.

31

A36902

STUD

- head to block (1/2" N.C. x 5-5/8")

11шт.

32

A36905

STUD

- head to block (1/2" N.C. x 6-1/8")

2шт.

33

A36904

STUD

- head to block (1/2" N.C. x 4")

4шт.

34

A36903

STUD

-, Serial Range: head-cover

2шт.

35

A37030

FLANGE NUT

- head stud (1/2" N.C. flanged)

19шт.
