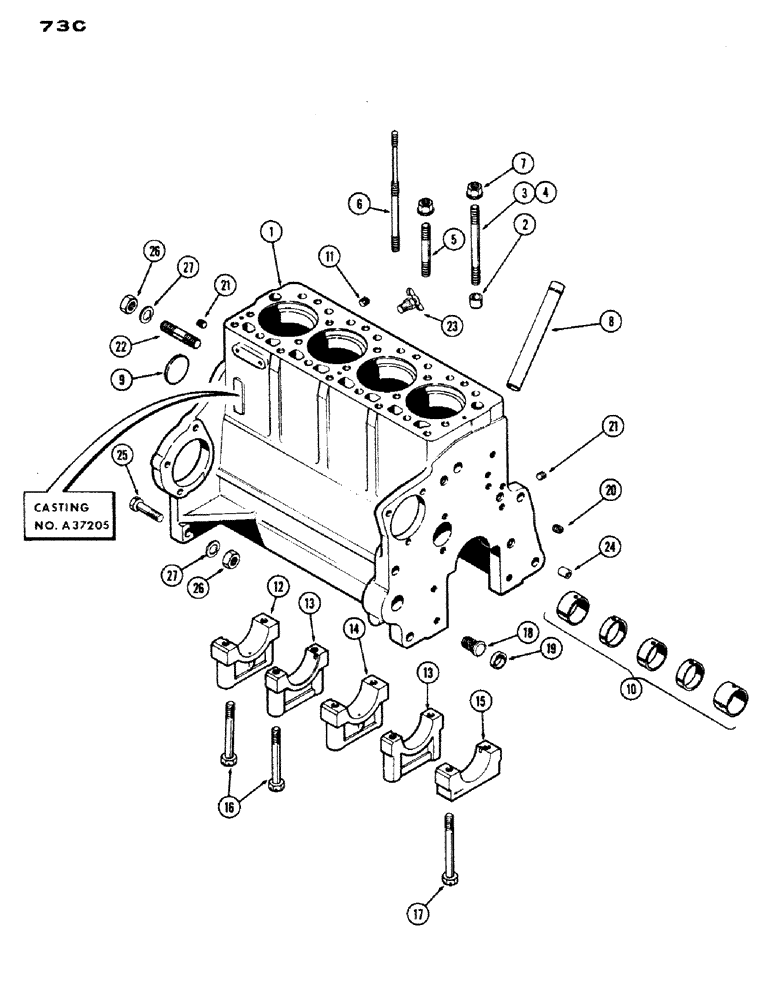

Запчасти Case IH 430 (073C) - CYLINDER BLOCK ASSEMBLY, 188, DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2639536 (02) - ENGINE

A40817

BLOCK ASSY. - cyl., short (Casting No. A37205) (incl. crankshaft & brgs., connecting rods & brgs., (camshaft, piston assy., oil pump & timing gears) (Order A42211) (See Figure 72), Includes: Ref. 1 - 21

1шт.

1

A40818

BLOCK ASSY. - stripped (Casting #A37205) (Order A41597) (See Figure 73A), Includes: Ref. 2 - 21

1шт.

2

G49608

RING

- dowel, Serial Range: head-block

2шт.

3

A36902

STUD

- head to block (1/2" N.C.x 5-5/8")

1шт.

4

A36905

STUD

- head to block (1/2" N.C. x 6")

2шт.

5

A36904

STUD

- head to block (1/2" N.C. x 4")

4шт.

6

A36903

STUD

- head &, Serial Range: cover-block

1шт.

7

A37030

FLANGE NUT

- cyl. head stud (1/2" N.C. flanged)

19шт.

8

A37149

TUBE

- dipstick & oil filler

1шт.

9

A39241

PLUG,Exp, 2.12" dia

- camshaft hole (2-1/8" exp.)

1шт.

10

A41232

KIT

BUSHING SET - camshaft (Set of 5)

1шт.

11

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - pipe, 3/8" socket hd.

1шт.

12

G2129

CAP

- main bearing, rear

1шт.

13

G2128

CAP

- main bearing, intermediate

2шт.

14

G2127

CAP

- main bearing, center

1шт.

15

G2126

CAP

- main bearing, front

1шт.

16

113-444

BOLT

- bearing cap (1/2 x 4-1/2" N.C. hex.)

8шт.

17

113-445

BOLT

- brg. cap (1/2 x 5-1/8" N.C. hex.)

2шт.

18

A153552

ADAPTER

- oil filter

1шт.

19

A37207

X

PLUG - filter adapter (1" cup type)

1шт.

20

G49070

PLUG

- drilled, front (1/4" P.T.)

1шт.

21

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

5шт.

22

A29333

STUD

- engine mounting (5/8" N.C./N.F. x 3")

2шт.

23

A23656

COCK, DRAIN

VALVE - drain, cyl. block

1шт.

24

A29442

RING

- dowel, Serial Range: cover-block

2шт.

25

A30099

X

BOLT - engine mounting

2шт.

26

25-1110

NUT,5/8"-18, G5

- (5/8" N.F. hex.)

4шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

A46352

CRANKCASE

short block, 6.62 crank O.D.

1шт.
