Запчасти Case IH 430 (067A) - ENGINE COOLING SYSTEM, 430-530, 188, DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2627377 (02) - ENGINE

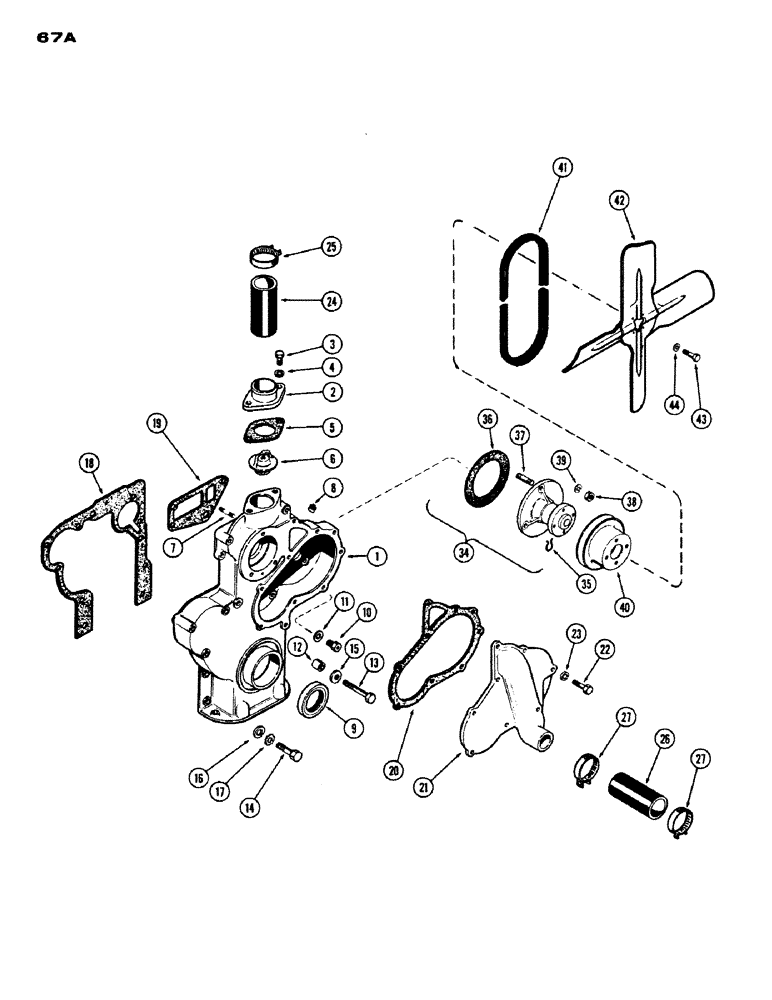

Схема запчастей Case IH 430 - (067A) - ENGINE COOLING SYSTEM, 430-530, 188, DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2627377 (02) - ENGINE
17
26
35
43
44
39
3
40
14
34
11
38
37
8
36
27
9
18
25
12
7
16
22
23
10
4
19
42
1
13
15
27
21
24
20
5
41
6
2

Артикул

Название

Примечание

Количество

1

A36823

COVER

COVER ASSY. - injection pump drive, Includes: Ref. 2 - 9

1шт.

2

G2144

FITTING

CONNECTION - water outlet

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

5

G46907

GASKET

GASKET -, Serial Range: connection-cover

1шт.

6

G45788

SPARE PART THERMOSTAT - water, 180 degrees

1шт.

7

G11204

STUD

STUD - injection pump 3/8" N.C. x 1-7/16"

3шт.

8

221-1843

PLUG

PLUG - pipe, 3/8" socket hd.

1шт.

9

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

SEAL - oil, crankshaft, 2-3/32 x 3 x 1/2" (Replaces A36609)

1шт.

10

G49083

BOLT

BOLT - drilled, N.C. hex.

1шт.

11

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

12

A29442

RING

RING - dowel, Serial Range: cover-block

2шт.

13

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

1шт.

13

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8 x 2-3/4" N.C. hex.

3шт.

13

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT - 3/8 x 2-3/4" N.C. hex.

3шт.

13

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT - 3/8 x 3" N.C. hex.

1шт.

13

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT - 3/8 x 3-1/4" N.C. hex.

3шт.

14

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - 3/8 x 1-1/2" N.C. hex.

1шт.

15

195-25

WASHER,3/8"

WASHER - 13/32 x 13/16 x 1/16"

5шт.

16

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

12шт.

17

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

18

A38228

GASKET

GASKET - cover to block (Replaces G46857)

1шт.

19

G46858

GASKET

GASKET -, Serial Range: cover-head

1шт.

20

G46859

GASKET

GASKET - gear cover mounting

1шт.

21

G2077

COVER ASSY

COVER - drive opening

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

1шт.

23

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

9шт.

24

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper, Water

1шт.

25

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, #36, 1.81/2.75 Type F Worm

2шт.

26

G46269

RADIATOR HOSE,1.75" ID x 2.50", SAE 20R2

Lower, Water

1шт.

27

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

34

A37758

PUMP

WATER PUMP ASSY. - complete (Replaces G11939), Includes: Ref. 35 and 36

1шт.

34

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

34

A146584R

REMAN-WATER PUMP

Reman For New P/N A37758, Water Pump Assy

1шт.

34

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

34

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

34

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

35

A30067

RING

RING - retainer

1шт.

36

A38083

GASKET

GASKET - pump to cover (Replaces G46875)

1шт.

37

A29433

STUD

STUD - pump mounting, 3/8" N.C. x 1"

3шт.

38

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

3шт.

39

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

40

G11339

PULLEY

PULLEY - drive, fan & pump

1шт.

41

G46238

BELT,0.55" W x 17.78" L

Fan and Pump Drive

1шт.

42

G45244

FAN

FAN - radiator, (430) (16" blade length)

1шт.

42

G45243

FAN

FAN - radiator, (530)(18" blade length)

1шт.

43

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

44

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.

Выбрано товаров: 51
