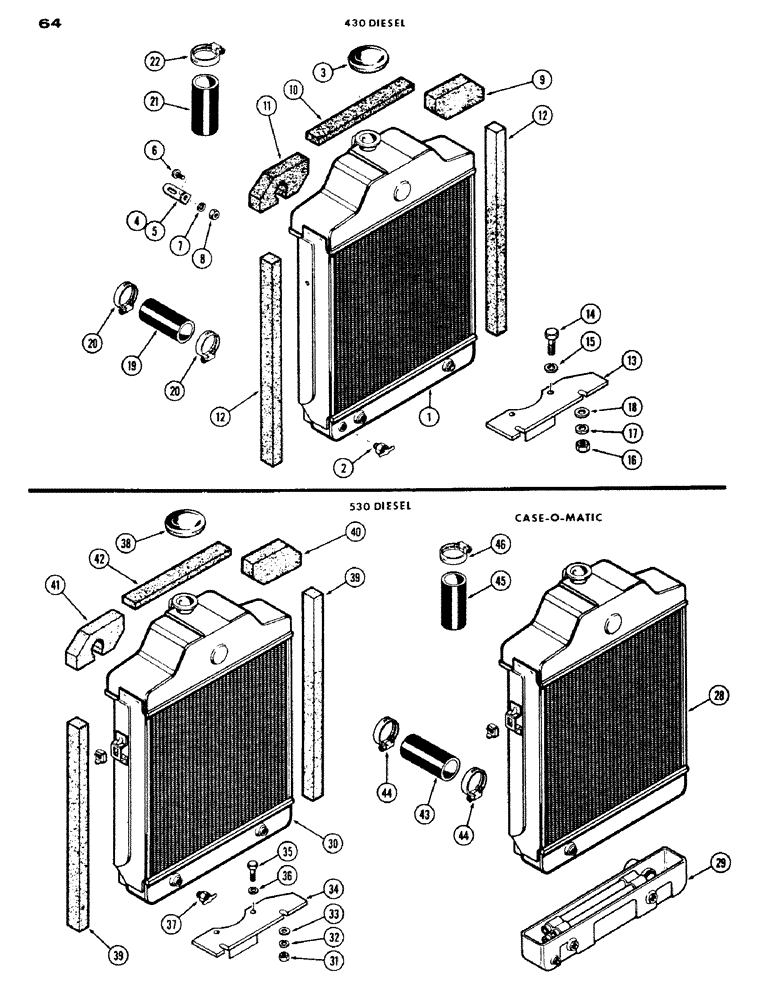

Запчасти Case IH 430 (064) - RADIATORS, 430,188, DIESEL ENGINE, 530, 159, SPARK IGNITION ENGINE (02) - ENGINE

1

G45321

RADIATOR

ASSY. - engine cooling (430)

1шт.

2

217-103

COCK, DRAIN

COCK - drain, radiator

1шт.

3

G45179

CAP

- radiator

1шт.

4

G10838

BRACE - L.H., Serial Range: radiator-engine

1шт.

5

G11367

BRACE - R.H., Serial Range: radiator-engine

1шт.

6

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- 1/4 x 5/8" rd. hd.

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

G46278

BAFFLE

- L.H. top, radiator

1шт.

10

G46280

BAFFLE

- top center, radiator

1шт.

11

G46279

BAFFLE

- R.H. top, radiator

1шт.

12

G46337

BAFFLE - air, radiator side

2шт.

13

A35796

SUPPORT

- radiator

1шт.

14

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

25-106

NUT,3/8"-16, G5

- radiator stud 3/8" N.C. hex.

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

19

G46269

RADIATOR HOSE,1.75" ID x 2.50", SAE 20R2

Lower 1.75" ID x 2.50", SAE 20R2

1шт.

20

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

21

G46157

AIR INTAKE TUBE,2" ID x 2.375" OD x 2" L

HOSE, 2.00" ID x 2.00", SAE 20R2 - Upper, Radiator

1шт.

22

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

28

G45479

RADIATOR ASSY. - w/Case-O-Matic, (530), Includes: Ref. 29

1шт.

29

G45484

RESERVOIR

TANK - lower, w/cooler tubes

1шт.

30

G45266

RADIATOR - w/dry clutch (530)

1шт.

31

25-106

NUT,3/8"-16, G5

- radiator stud, 3/8" N.C. hex.

2шт.

32

92-6

LOCK WASHER,3/8"

2шт.

33

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

34

A35796

SUPPORT

BRACKET - radiator mounting

1шт.

35

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

36

92-8

LOCK WASHER,1/2"

2шт.

37

217-103

COCK, DRAIN

COCK - drain, radiator

1шт.

38

G45179

CAP

- radiator

1шт.

39

G46281

BAFFLE - side, radiator

2шт.

40

G46278

BAFFLE

- top L.H., radiator

1шт.

41

G46279

BAFFLE

- top R.H., radiator

1шт.

42

G46280

BAFFLE

- top center, radiator

1шт.

43

G46269

RADIATOR HOSE,1.75" ID x 2.50", SAE 20R2

Lower 1.75" ID x 2.50", SAE 20R2

1шт.

44

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

45

G46157

AIR INTAKE TUBE,2" ID x 2.375" OD x 2" L

HOSE, 2.00" ID x 2.00", SAE 20R2 - Upper, Radiator

1шт.

46

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.
