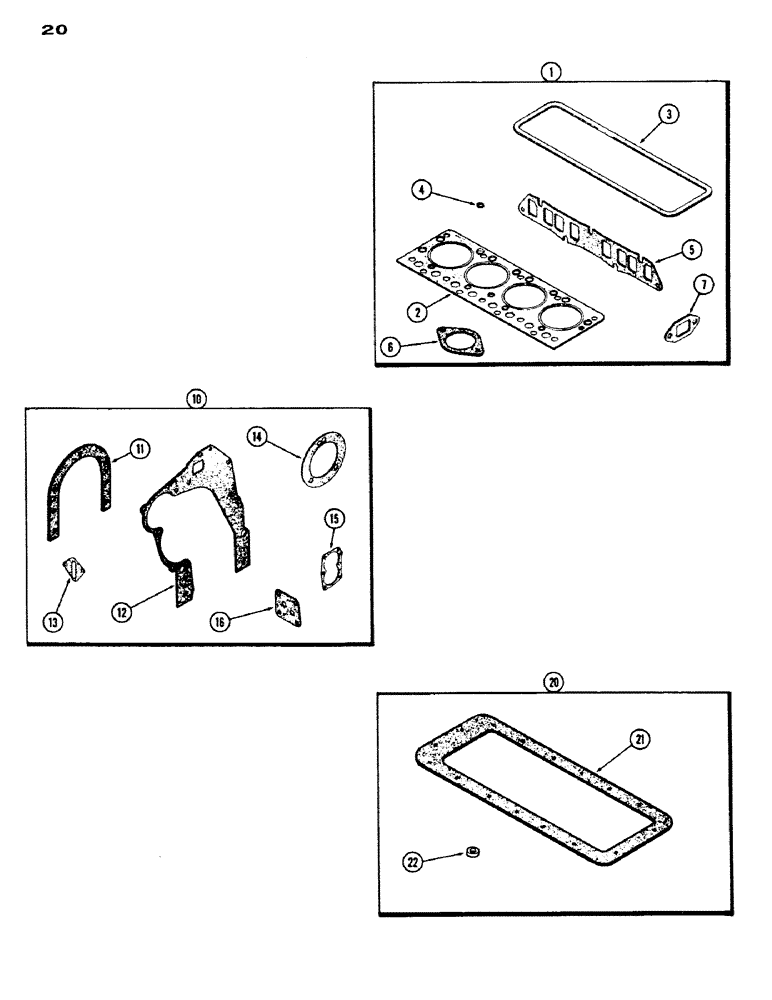

Запчасти Case IH 430 (020) - ENGINE GASKET KITS, 430, 148B, SPARK IGNITION ENGINE (02) - ENGINE

1

G11917

KIT

GASKET KIT - valve grind, Includes: Ref. 2 - 7

1шт.

For complete engine overhaul Order: 1-G11917, 1-A41465 & 1-A40710

1шт.

2

G10672

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

3

A30009

GASKET

- valve cover

1шт.

4

G46851

SEAL

- valve stem

4шт.

5

A30030

GASKET

- manifold

1шт.

6

A29956

GASKET

- carburetor

1шт.

7

A30003

GASKET

- water outlet elbow

1шт.

10

A41465

GASKET

KIT - cylinder block (Replaces G11916), Includes: Ref. 11 - 16

1шт.

For complete engine overhaul Order: 1-G11917, 1-A41465 & 1-A40710

1шт.

11

A38196

GASKET

- rear oil seal retainer (Replaces G46802)

1шт.

12

A38226

GASKET

- timing gear cover (Replaces A30010)

1шт.

13

G46902

GASKET

- fuel pump opening

1шт.

14

A38083

GASKET

- water pump

1шт.

15

G46852

GASKET

- oil pump

1шт.

16

G46854

GASKET

- oil filter bracket

1шт.

20

D128322

RELAY

GASKET KIT - oil pan, Includes: Ref. 21 and 22

1шт.

For complete engine overhaul Order: 1-G11917, 1-A41465 & 1-A40710

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40710)

1шт.

22

A58608

GASKET

- drain plug (3/4" I.D.)

1шт.
