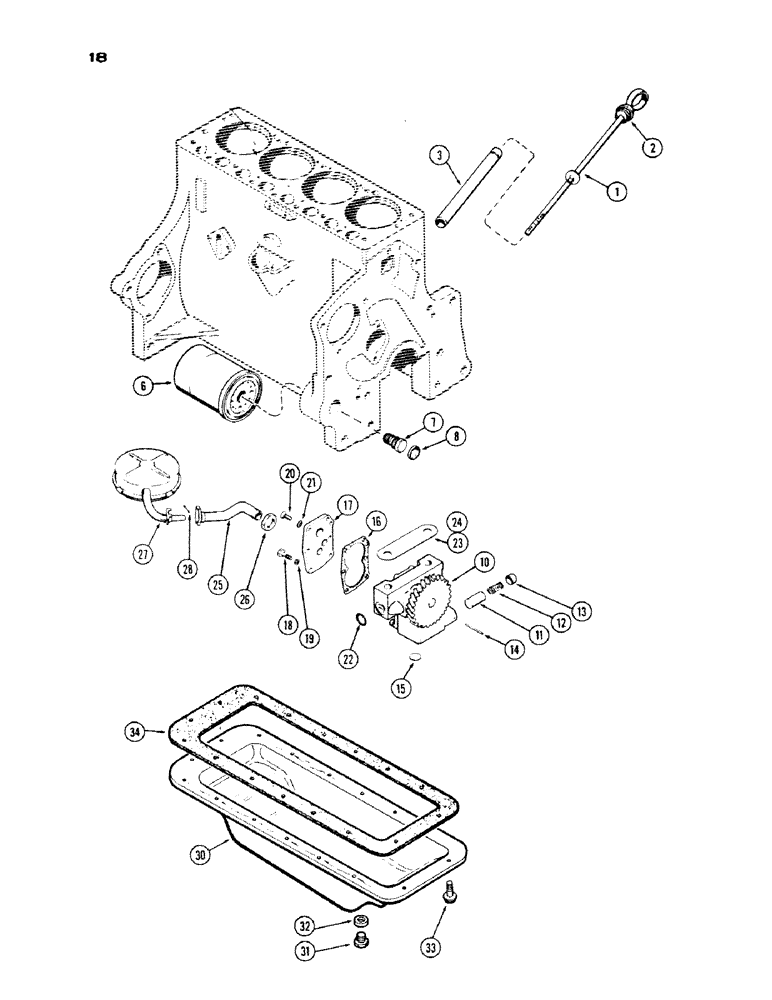

Запчасти Case IH 430 (018) - OIL PUMP, OIL FILTER, OIL PAN, 430, 148B, SPARK IGNITION ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A37148
DIPSTICK
ASSY. - oil level, Includes: Ref. 2
1шт.
2
F62075
O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro
"O" RING - dipstick seal
2шт.
3
A37149
TUBE
- oil filler & dipstick (in block)
1шт.
6
G45210
FILTER, ELEMENT
FILTER - engine oil
1шт.
7
A153552
ADAPTER
-, Serial Range: filter-block
1шт.
8
A37207
X
PLUG - adapter opening
1шт.
10
G11844
PUMP, ENGINE OIL
OIL PUMP ASSY. - complete, Includes: Ref. 11 - 21
1шт.
11
A155144
VALVE, PRESSURE RELI
- relief
1шт.
12
G48513
VALVE SPRING
SPRING - relief valve
1шт.
13
A29260
RETAINER
- relief spring
1шт.
14
138-62
LOCK PIN,1/8" x 1 1/8", Slotted
PIN, 1/8" x 1 1/8", Slotted
1шт.
15
41-102
PLUG,Exp, 1/2"
- pump body
2шт.
16
G46852
GASKET
- pump cover
1шт.
17
NSS
NOT SOLD SEPARAT
COVER - pump body
1шт.
18
13-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
1шт.
18
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
3шт.
19
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
20
73-410
SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"
- mach., 1/4" x 5/8" flat hd.
2шт.
21
193-52
LOCK WASHER,Ext Csk Tooth, 1/4"
WASHER, LOCK, Ext Csk Tooth, 1/4"
2шт.
22
A27365
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
"O" RING - oil port
1шт.
23
G11337
SHIM,.002" Thk
Pump to block .002" Thk
2шт.
24
G11338
SHIM,.005" Thk
Pump to block .005" Thk
1шт.
25
G45766
PIPE, EXHAUST SYSTEM
PIPE - suction
1шт.
26
223-207
LOCK NUT
NUT - lock, Serial Range: pipe-pump
1шт.
27
A30126
FLOAT ASSY - (includes screen)
1шт.
28
132-50
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
30
A36726
PAN
OIL PAN ASSY, Includes: Ref. 31 and 32
1шт.
31
A14280
PLUG
- drain
1шт.
32
A58608
GASKET
- drain plug (nylon) (Replaces A27927)
1шт.
33
193-514
SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"
BOLT - oil pan (includes lockwasher)
16шт.
34
NSS
NOT SOLD SEPARAT
GASKET - oil pan (Order from Figure 20)
1шт.
Выбрано товаров: 31
