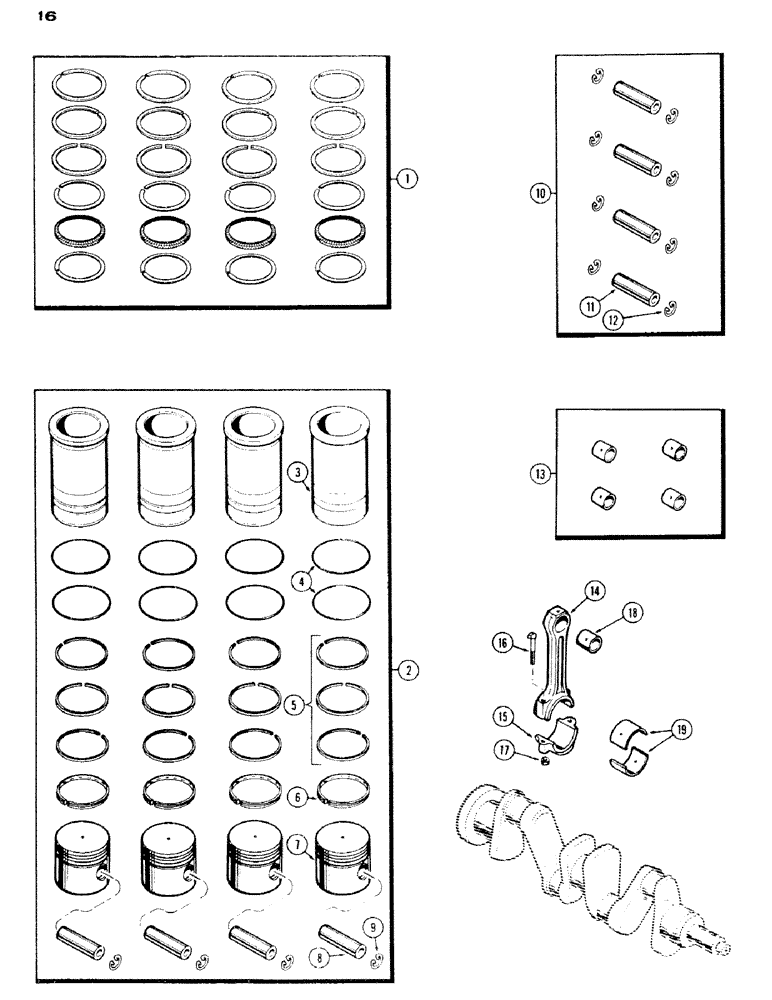

Запчасти Case IH 430 (016) - PISTON ASSEMBLY AND CONNECTING RODS, 430, 148B, SPARK IGNITION ENGINE (02) - ENGINE

1

G11116

PISTON RING SET

RINGS - piston (2 in 1 chrome set)

1шт.

2

G11007

SLEEVE ASSY

PISTON & SLEEVE - (matched set of 4), Includes: Ref. 3 - 9

1шт.

3

G1061

SLEEVE

- cylinder

4шт.

4

G46909

O-RING,3.112" ID x 3.344" OD

"O" RING - sleeve packing

8шт.

5

G1062

OIL SEAL

RING - compression

12шт.

6

G1063

OIL SEAL

RING - oil control

4шт.

7

G1060

PISTON

4шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 10)

4шт.

9

A30023

RETAINER

RING - retaining (See ref. 10)

8шт.

10

G11925

PISTON PIN

PIN KIT - piston, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

PIN - (Order G11925)

4шт.

12

A30023

RETAINER

RING - retaining

8шт.

13

G11955

KIT

BUSHING SET - connecting rod (Set of 4)

1шт.

14

G11592

EXCHANGE CONROD

ROD ASSY. - connecting, Includes: Ref. 15 - 18

4шт.

15

NSS

NOT SOLD SEPARAT

CAP - (Order G11592)

1шт.

16

G11701

BOLT

- cap

2шт.

17

G49060

NUT

- cap bolt

2шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - (Order ref. 13)

1шт.

19

A36500

SEAL

LINERS - brg. conn. rod (Std.) (Set of 2)

4шт.

19

A36501

BEARING LINER

LINERS - brg. conn. rod (.002" undersize) (Set of 2)

4шт.

19

A36502

LINING

LINERS - brg. conn. rod (.010" undersize) (Set of 2)

4шт.

19

A36503

BEARING LINER

LINERS - brg. conn. rod (.020" undersize) (Set of 2)

4шт.

19

A36504

KIT

LINERS - brg. conn. rod (.030" undersize) (Set of 2)

4шт.
