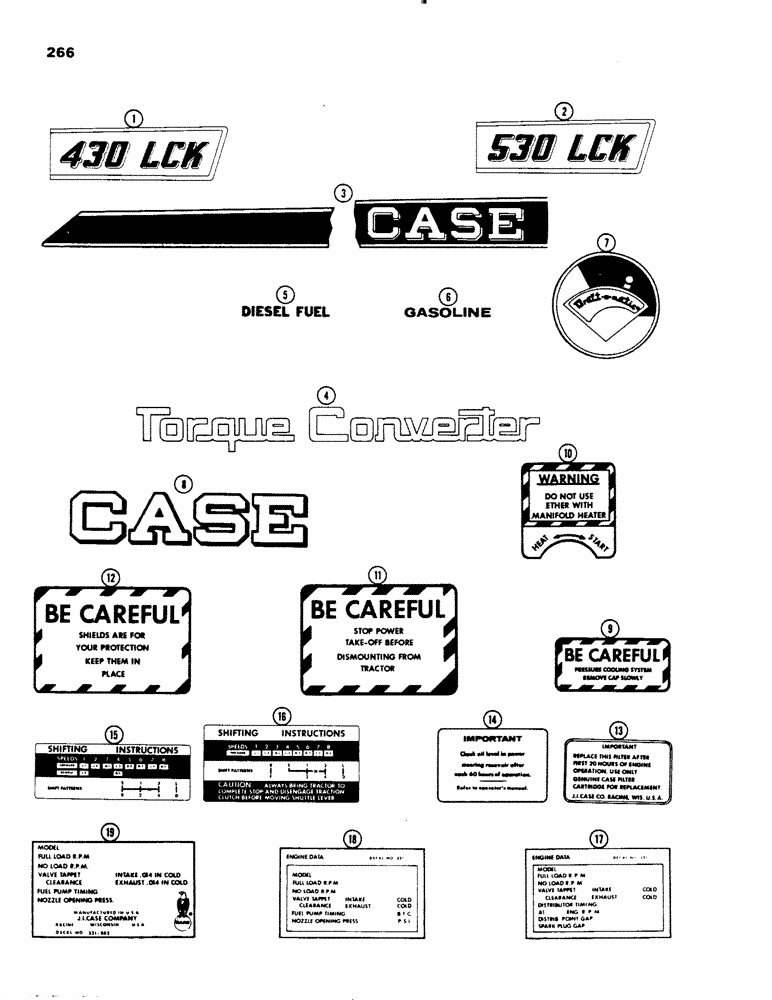

Запчасти Case IH 430 (266) - L.C.K. DECALS, MODELS 430 AND 530 (09) - CHASSIS/ATTACHMENTS

1

321-864

430 - right hand (hood cap)

1шт.

1

321-865

430 - left hand (hood cap)

1шт.

2

321-866

530 - right hand (hood cap)

1шт.

2

321-867

530 - left hand (hood cap)

1шт.

3

321-676

DECAL

CASE - right hand (w/out Draft-O-Matic)

1шт.

3

321-677

DECAL

CASE - left hand (w/out Draft-O-Matic)

1шт.

3

321-774

DECAL

CASE - right hand (w/Draft-O-Matic)

1шт.

3

321-775

DECAL

CASE - left hand (w/Draft-O-Matic)

1шт.

4

321-679

DECAL

TORQUE CONVERTER - (hood) (530 only)

2шт.

5

321-230

DECAL

DIESEL FUEL - (fuel tank)

1шт.

6

321-18

DECAL

GASOLINE - (fuel tank)

1шт.

7

321-767

DECAL

DRAFT-O-MATIC - (inst. panel) (no longer used)

2шт.

8

321-287

DECAL

CASE - seat

1шт.

9

321-122

DECAL

BE CAREFUL - radiator cap

1шт.

10

321-422

DECAL

STARTING INSTRUCTIONS - (Diesel) (Inst. Panel)

1шт.

11

321-605

DECAL

BE CAREFUL - P.T.O. (tool box)

1шт.

12

321-608

DECAL

BE CAREFUL - P.T.O. shield

1шт.

13

321-367

DECAL

FILTER CHANGE

1шт.

14

321-695

DECAL

OIL CHANGE - steering pump

1шт.

15

321-1028

DECAL

SHIFTING INSTRUCTIONS - (dual range)

1шт.

16

321-1029

DECAL

SHIFTING INSTRUCTIONS - (dual range w/shuttle)

1шт.

17

321-1354

DECAL

ENGINE DATA - (gasoline) (430) (replaces 321-890)

1шт.

17

321-1356

DECAL

ENGINE DATA - (gasoline) (530) (std. clutch) (replaces 321-891)

1шт.

17

321-1358

DECAL

ENGINE DATA - (gasoline) (530) (Case-O-Matic) (replaces 321-892)

1шт.

18

321-1369

ENGINE DATA - (diesel) (430) (replaces 321-1108) (1st used eng. ser. no. 2627377)

1шт.

18

321-1371

ENGINE DATA - (diesel) (530 w/std. clutch) (1st used eng. ser. no. 2627377) (replaces 321-1109)

1шт.

18

321-1374

DECAL

ENGINE DATA - (dieser) (530 w/Case-O-Matic) (replaces 321-1110) (1st used eng. ser. no. 2627377)

1шт.

19

321-882

DECAL

ENGINE DATA - (diesel) (430) (used prior to eng. ser. no. 2627377)

1шт.

19

321-883

ENGINE DATA - (diesel) (530 w/std. clutch) (used prior to eng. ser. no. 2627377)

1шт.

19

321-884

ENGINE DATA - (diesel) (530 w/Case-O-Matic) (used prior to eng. ser. no. 2627377)

1шт.
