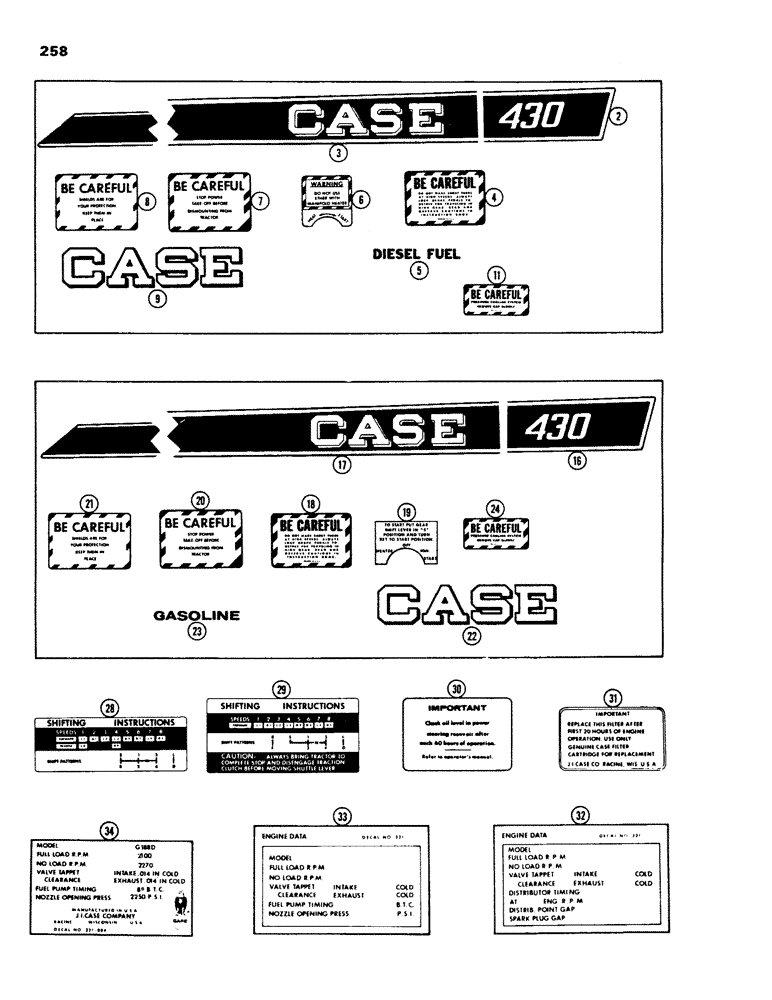

Запчасти Case IH 430 (258) - 430 DECALS, 1ST USED TRAC. SER. NO. 8347504, DIESEL ENGINE (09) - CHASSIS/ATTACHMENTS

A41593

KIT

DECAL KIT - diesel (for complete machine set also order from loose decals ref. 28 thru 34), Includes: Ref. 2 - 11

1шт.

2

321-1156

DECAL

430 - right hand (hood cap) (vinyl)

1шт.

2

321-1157

DECAL

430 - left hand (hood cap) (vinyl)

1шт.

3

321-1150

DECAL

CASE - right hand (hood) (vinyl)

1шт.

3

321-1151

DECAL

CASE - left hand (hood) (vinyl)

1шт.

4

321-606

DECAL

CAUTION - (inst. panel)

1шт.

5

321-230

DECAL

DIESEL FUEL - (fuel tank)

1шт.

6

321-422

DECAL

STARTING INSTRUCTIONS - (inst. panel)

1шт.

7

321-605

DECAL

BE CAREFUL - P.T.O. (tool box)

1шт.

8

321-608

DECAL

BE CAREFUL - P.T.O. shield

1шт.

9

321-287

DECAL

CASE - (back of seat)

1шт.

11

321-122

DECAL

BE CAREFUL - radiator cap

1шт.

A41592

KIT

DECAL KIT - gasoline (for complete machine set also order from loose decals ref. 28 thru 34), Includes: Ref. 16 - 24, spark ignition engine

1шт.

16

321-1156

DECAL

430 - right hand (hood cap) (vinyl), spark ignition engine

1шт.

16

321-1157

DECAL

430 - left hand (hood cap) (vinyl), spark ignition engine

1шт.

17

321-1150

DECAL

CASE - right hand (hood) (vinyl), spark ignition engine

1шт.

17

321-1151

DECAL

CASE - left hand (hood) (vinyl), spark ignition engine

1шт.

18

321-606

DECAL

CAUTION - (inst. panel), spark ignition engine

1шт.

19

321-666

DECAL

STARTING INSTRUCTIONS - (inst. panel), spark ignition engine

1шт.

20

321-605

DECAL

BE CAREFUL - P.T.O. (tool box), spark ignition engine

1шт.

21

321-608

DECAL

BE CAREFUL - P.T.O. shield, spark ignition engine

1шт.

22

321-287

DECAL

CASE - (back of seat), spark ignition engine

1шт.

23

321-18

DECAL

GASOLINE - fuel tank, spark ignition engine

1шт.

24

321-122

DECAL

BE CAREFUL - radiator cap, spark ignition engine

1шт.

28

321-1028

DECAL

SHIFTING INSTRUCTIONS - (dual range), miscellaneous decals

1шт.

29

321-1029

DECAL

SHIFTING INSTRUCTIONS - (dual range w/shuttle), miscellaneous decals

1шт.

30

321-695

DECAL

OIL CHANGE - steering pump, miscellaneous decals

1шт.

31

321-367

DECAL

FILTER CHANGE, miscellaneous decals

1шт.

32

321-1354

DECAL

ENGINE DATA - (gasoline)(replaces 321-890), miscellaneous decals

1шт.

33

321-1369

ENGINE DATA - (diesel)(replaces 321-1108) (1st used eng. ser. no. 2627377), miscellaneous decals

1шт.

34

321-882

DECAL

ENGINE DATA - (diesel) (used prior to eng. ser. no. 2627377), miscellaneous decals

1шт.
