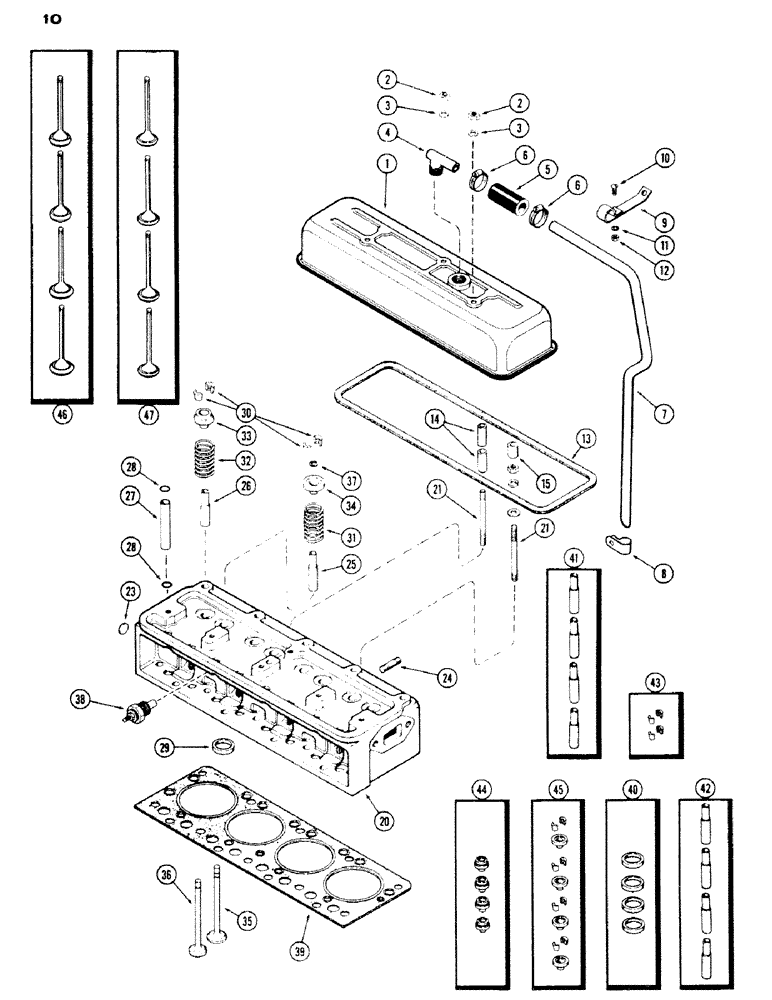

Запчасти Case IH 430 (010) - CYLINDER HEAD ASSEMBLY, 430, 148B, SPARK IGNITION ENGINE (02) - ENGINE

1

A37212

COVER

- cylinder head

1шт.

2

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

3

A29277

WASHER

- cover stud

3шт.

4

A9155

90 ELBOW

- breather, Serial Range: tube-cover

1шт.

5

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube to elbow 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

7

A37417

TUBE - breather

1шт.

8

D35026

CLAMP - breather tube

1шт.

9

A38134

SPRING

CLIP -, Serial Range: tube-manifold

1шт.

10

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- 1/4 x 1/2" N.C. rd. hd.

1шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

25-104

NUT,1/4"-20, G5

1шт.

13

A30009

GASKET

- cylinder head cover

1шт.

14

A30065

SPACER

- cylinder head cover (25/64 x 35/64 x 17/32")

2шт.

15

A29999

SPACER

- cylinder head cover (25/64 x 35/64 x 19/32")

2шт.

G11888

HEAD ASSY. - cylinder, w/valves (not illustrated), Includes: Ref. 20 - 37

1шт.

20

G11874

HEAD (CYLINDER)

HEAD ASSY. - cylinder, stripped, Includes: Ref. 21 - 29

1шт.

21

G49505

STUD

- cyl. head cover, 3/8" N.C. x 4-5/8"

3шт.

23

41-18

PLUG

- rear, 1-1/8" expansion

1шт.

24

A29431

STUD

- manifold (3/8" N.C. x 1-3/4")

7шт.

25

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 41) (2-7/16" long)

4шт.

26

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 42) (2-11/16" long)

4шт.

27

G11360

TUBE,0.687" OD x 3.687" L

- push rod

8шт.

28

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O"RING - tube seal (11/16 x 7/8 x 3/32")

16шт.

29

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 40)

4шт.

30

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order ref. 43)

16шт.

31

A30025

SPRING

- intake valve (2-3/8" free length)

4шт.

32

G10004

SPRING

- exhaust valve (2-3/16" free length)

4шт.

33

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (Order ref. 44)

4шт.

34

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 45)

4шт.

35

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 46) (1-1/4" head)

4шт.

36

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 47) (1-13/32" head)

4шт.

37

G46851

SEAL

- intake valve stem

4шт.

38

A21462

SENDER UNIT

SENDER - temperature

1шт.

39

G10672

CYLINDER HEAD GASKET

- cylinder, Serial Range: head-block

1шт.

40

G11960

KIT

INSERTS - exhaust valve seat (Set of 4)

1шт.

41

G10269

KIT

GUIDES - intake valve (Set of 4)

1шт.

42

A30270

GUIDE

S - exhaust valve (Set of 4)

2шт.

43

G11929

LOCK

S - valve spring (Set of 4)

4шт.

44

G11928

CAP

ROTO-CAPS - exhaust valve (Set of 4)

1шт.

45

G11927

RETAINER

S - intake valve spring (Set of 4 w/locks)

1шт.

46

G11961

VALVE

S - intake (Set of 4)

1шт.

47

G11962

VALVE, ENG EXHAUST,

VALVES - exhaust (Set of 4)

1шт.
