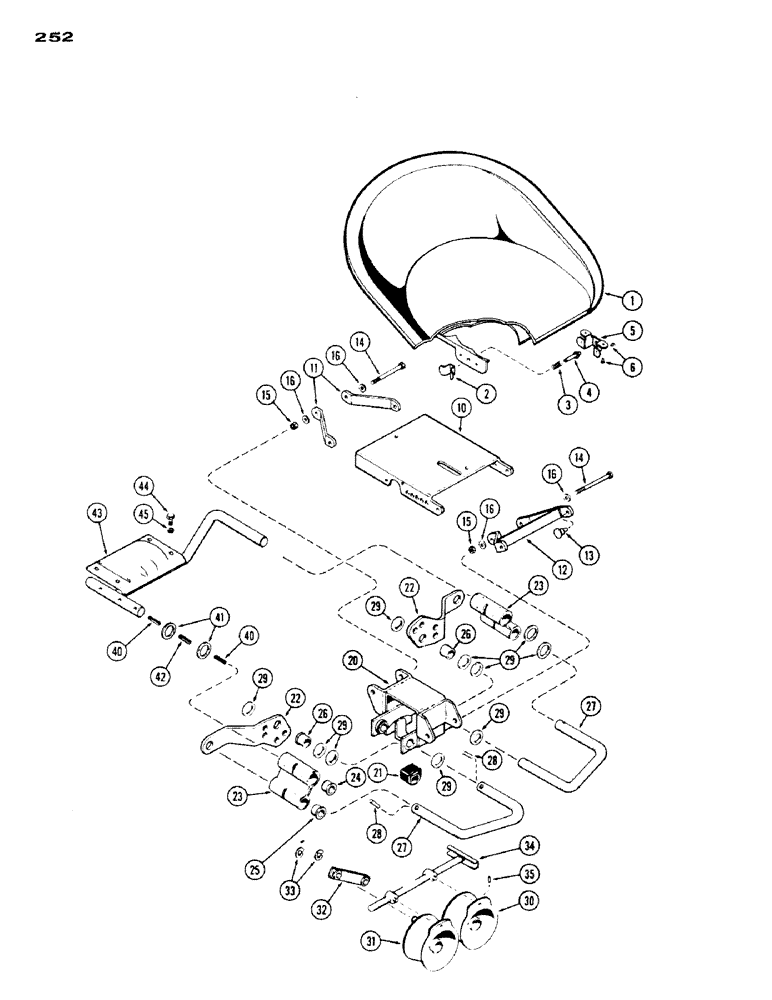

Запчасти Case IH 430 (252) - EASY RIDE SEAT, 1ST USED TRAC. SER. NO. 8312174 (09) - CHASSIS/ATTACHMENTS

1

G13038

SEAT ASSY. - pan, Includes: Ref. 2 - 6

1шт.

2

G10784

HANDLE - plunger

1шт.

3

A30370

SPRING - plunger

1шт.

4

G10783

PIN - plunger, seat lock

1шт.

5

G16891

BRACKET - plunger

1шт.

6

151-210

RIVET - bracket (3/16 x 7/16" truss hd.)

4шт.

A37945

CHANNEL ASSY. - seat mounting (not shown), Includes: Ref. 10 - 13

1шт.

10

A33310

CHANNEL

- seat mounting

1шт.

11

G10775

ARM

- pivot, rear

2шт.

12

A38148

X

ARM - pivot, front

1шт.

13

G10779

RIVET

- pivot arm

4шт.

14

14-572

BOLT,Hex, 5/16" - 24 x 4-1/2", Gr 5

- 5/16 x 4-1/2" N.F. hex. hd.

2шт.

15

131-3

LOCK NUT,5/16"-24, GB

NUT - lock, 5/16" N.F.

2шт.

16

195-21

WASHER,5/16"

- plain 5/16"

2шт.

A37951

SUSPENSION BLOCK

SUSPENSION ASSY. - seat (not shown), Includes: Ref. 20 - 35

1шт.

20

A41096

BRACKET - support

1шт.

21

A30644

BUMPER

- rubber

1шт.

22

A41099

ARM - lever

2шт.

23

A41101

LINK

LEVER ASSY. - suspension, Includes: Ref. 24 and 25

2шт.

24

A41143

BUSHING

- flanged (7/8" I.D. x 1" O.D.)

2шт.

25

A30771

BUSHING

- flnaged (3/4" I.D. x 7/8" O.D.) (Replaces A41144)

2шт.

26

G46002

FLANGED BEARING

BEARING - spring shaft (flanged)

2шт.

27

A41102

SHAFT - spring

2шт.

28

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Spring shaft 1/4" x 1 1/4", Slotted

4шт.

29

A26462

WASHER

- spring shaft (1-1/4" O.D. x 49/64" I.D.)

10шт.

30

A41097

SPRING

ASSY. - rubber cushion, L.H.

1шт.

31

A41098

SPRING

ASSY. - rubber cushion, R.H.

1шт.

32

S41100

LINK - stabilizer

1шт.

33

A27795

RING

- snap, stabilizer link

2шт.

34

G45001

STUD

- spring adjusting

1шт.

35

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Adj. stud 1/8" x 3/4", Slotted

2шт.

40

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Suspension to support 1/4" x 1 1/4", Slotted

4шт.

41

A37955

WASHER

- suspension to support (1-1/4" O.D. x 15/16")

4шт.

42

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, , Suspension to support 5/16" x 1 1/4", Slotted

2шт.

43

A37954

SUPPORT - seat suspension

1шт.

44

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

45

92-6

LOCK WASHER,3/8"

4шт.
