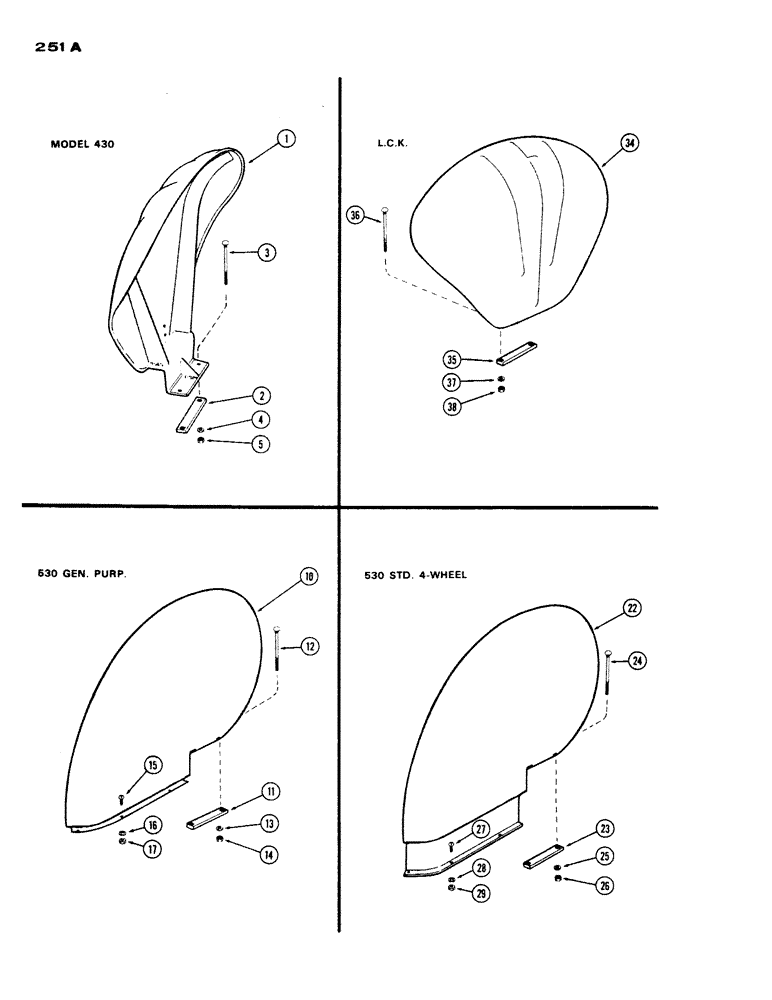

Запчасти Case IH 430 (251C) - GROVE FENDERS (09) - CHASSIS/ATTACHMENTS

1

A36842

FENDER - right hand

1шт.

1

A36843

FENDER - left hand

1шт.

3

A36845

BRACE - fender, inside

2шт.

4

11-622

BOLT - brace to fender, 3/8 x 1-3/8" rd. hd. sq. nk.

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

7

A36844

PLATE - reinforcement, fender

2шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Plate to fender Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

9

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

6шт.

10

92-6

LOCK WASHER,3/8"

6шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

12

A36846

BAR - fender mounting

4шт.

13

15-10104

BOLT

- bar, 5/8 x 6-1/2" N.C. hex.

8шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

15

25-1010

NUT,5/8"-11, G5

8шт.
