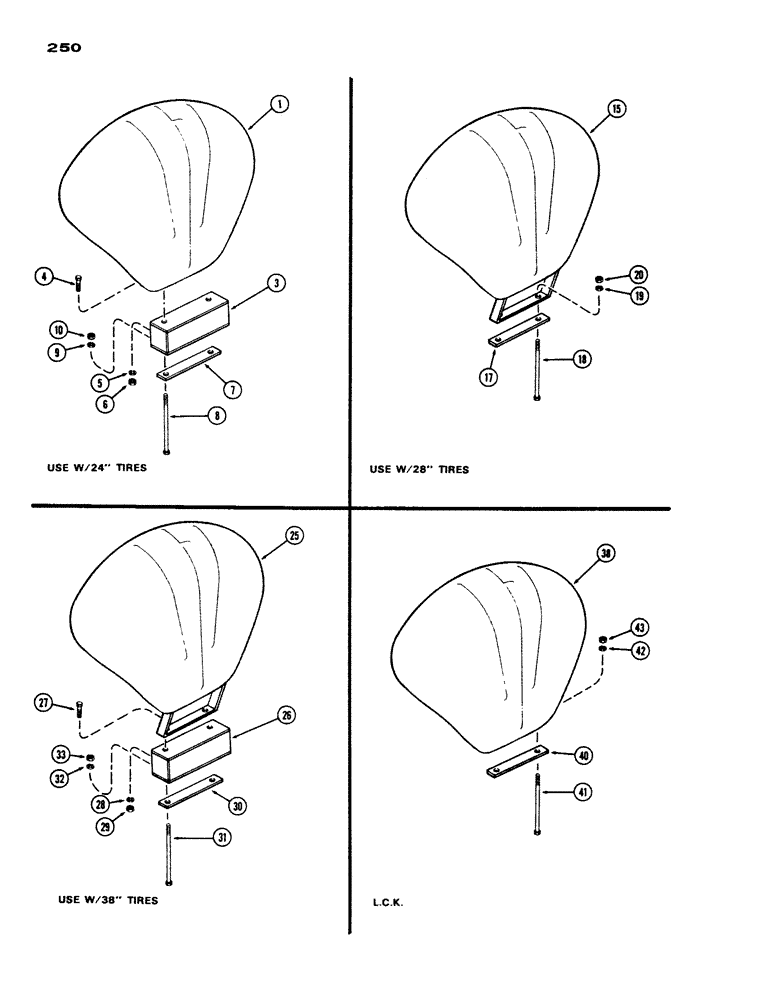

Запчасти Case IH 430 (250) - FENDERS, MODELS 430 AND 530, 1ST USED TRAC. SER. NO. 8365950, USED WITH 24" TIRES (09) - CHASSIS/ATTACHMENTS

1

A38470

FENDER ASSY. - right hand

1шт.

1

A38471

FENDER ASSY. - left hand

1шт.

3

A38474

PLATE - base extension

2шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Base to fender Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

7

A37305

CLAMP

- fender

2шт.

8

15-8104

BOLT - clamp to base (1/2 x 6-1/2" N.C. hex.)

4шт.

9

92-8

LOCK WASHER,1/2"

4шт.

10

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

15

A38476

FENDER ASSY. - right hand, used with 28" tires

1шт.

15

A38477

FENDER ASSY. - left hand, used with 28" tires

1шт.

17

A37305

CLAMP

- fender, used with 28" tires

2шт.

18

15-8104

BOLT - clamp to fender (1/2 x 6-1/2" N.C. hex.), used with 28" tires

4шт.

19

92-8

LOCK WASHER,1/2"

used with 28" tires 1/2"

4шт.

20

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex., used with 28" tires

4шт.

25

A38476

FENDER ASSY. - right hand, used with 38" tires

1шт.

25

A38477

FENDER ASSY. - left hand, used with 38" tires

1шт.

26

A38474

PLATE - base extension, used with 38" tires

2шт.

27

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Base to fender, used with 38" tires Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

28

92-8

LOCK WASHER,1/2"

used with 38" tires 1/2"

4шт.

29

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex., used with 38" tires

4шт.

30

A37305

CLAMP

- fender, used with 38" tires

2шт.

31

15-8104

BOLT - clamp to base (1/2 x 6-1/2" N.C. hex.), used with 38" tires

4шт.

32

92-8

LOCK WASHER,1/2"

used with 38" tires 1/2"

4шт.

33

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex., used with 38" tires

4шт.

38

A38470

FENDER ASSY. - right hand, L.C.K.

1шт.

38

A38471

FENDER ASSY. - left hand, L.C.K.

1шт.

40

A37305

CLAMP

- fender, L.C.K.

2шт.

41

15-8104

BOLT - clamp to fender (1/2 x 6-1/2" N.C. hex.), L.C.K.

4шт.

42

92-8

LOCK WASHER,1/2"

4шт.

43

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex., L.C.K.

4шт.
