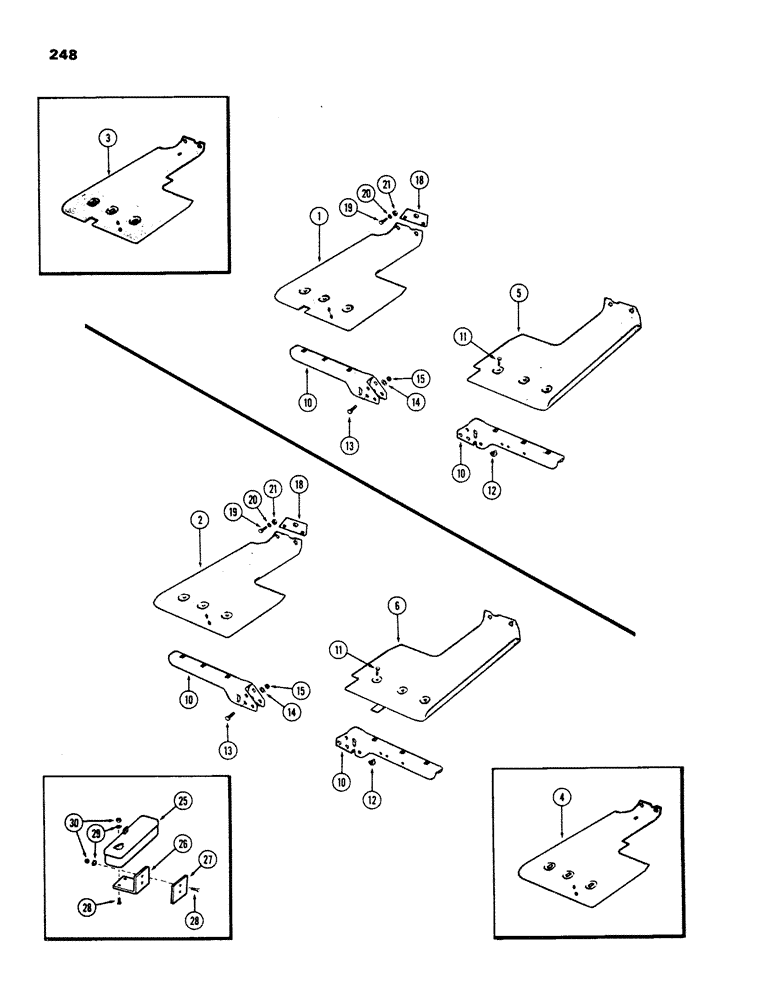

Запчасти Case IH 430 (248) - PLATFORMS AND SUPPORTS, MODEL 430 (09) - CHASSIS/ATTACHMENTS

1

A38431

PLATFORM - right hand (w/out diff. lock), Start Serial: 8365950

1шт.

2

G17228

PLATFORM - right hand (w/out diff. lock), Serial Range: -8365950

1шт.

3

A38429

PLATFORM - right hand (w/diff. lock), Start Serial: 8365950

1шт.

4

A36600

PLATFORM - right hand (w/diff. lock), Serial Range: -8365950

1шт.

5

A38427

PLATFORM - left hand, Start Serial: 8365950

1шт.

6

G14307

PLATFORM - left hand, Serial Range: -8365950

1шт.

10

G10752

SUPPORT - platform, front

2шт.

11

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

- platform to frt. supt. (5/16 x 3/4" N.C. Phillips)

6шт.

12

1502286C2

NUT,Floating Cage, 5/16"-18

- cage, 5/16" N.C.

6шт.

13

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Frt. supt. to trans. case Hex, 3/8"-16 x 1 3/4", G5

5шт.

13

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Frt. supt. to trans. case Hex, 3/8"-16 x 2", G5

1шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

15

92-6

LOCK WASHER,3/8"

6шт.

18

G17219

SUPPORT - platform, rear (4 wheel & LCK)

2шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Platform to rear supt Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

25

G13138

BOX ASSY. - tools

1шт.

26

A35831

BRACKET - tool box mounting

1шт.

27

A35832

PLATE - reinforcing (on fender), tool box

1шт.

28

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Tool box Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Tool box 1/4"

4шт.

30

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Tool box

4шт.
