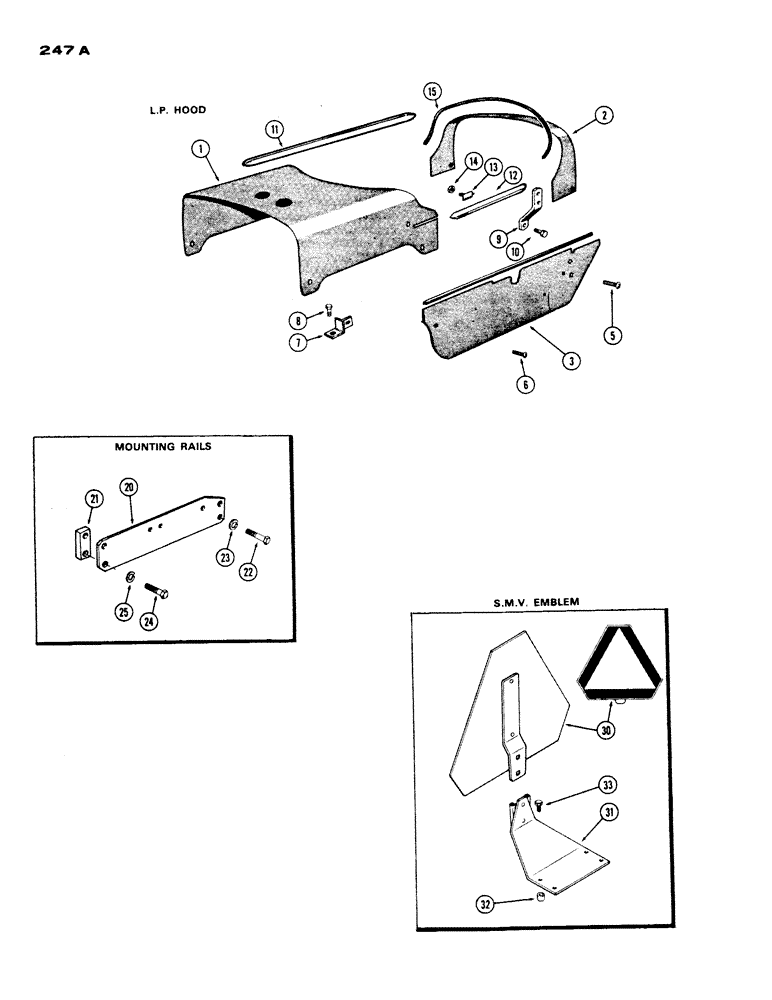

Запчасти Case IH 430 (247A) - L.P.G. HOOD AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

A37823

HOOD - engine

1шт.

2

A37132

STRIP - filler, fuel tank to inst. panel

1шт.

3

G15778

PANEL - R.H. side (L.H. shown)

1шт.

3

A37941

PANEL - L.H. side

1шт.

5

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

- 5/16 x 3/4" N.C. truss hd.

2шт.

5

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- 5/16 x 1/2" N.C. truss hd.

2шт.

6

175-448

SCREW - 3/8 x 1" N.C. truss hd.

4шт.

7

A37130

BRACKET - R.H., hood support (L.H. shown)

1шт.

7

A37131

BRACKET - L.H., hood support

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

G15777

SUPPORT - instrument panel

2шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

11

G46259

MOLDING

STRIP - chrome, R.H. side

1шт.

12

A36940

STRIP - chrome, L.H. side

2шт.

13

A11459

BOLT

"T" BOLT - chrome strip

6шт.

14

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex. (Keps)

6шт.

15

G16034

MOULDING - rubber

2шт.

20

A36732

RAIL - R.H., implement mounting (24" long) (Diesel)

1шт.

20

A36733

RAIL - L.H., implement mounting (24" long) (Diesel)

1шт.

20

A36734

RAIL - R.H., implement mounting (22-3/4" long) (Gas)

1шт.

20

A36735

RAIL - L.H., implement mounting (22-3/4" long) (Gas)

1шт.

21

G17126

SPACER - front, mounting rail, implement

2шт.

22

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Implement mounting rails Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Implement mounting rails 5/8"

4шт.

24

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

Front, implement mounting rails Hex, 3/4"-10 x 1 1/2", G5

4шт.

25

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Implement mounting rails 3/4"

4шт.

30

A59450

WARNING SIGN

EMBLEM - S.M.V.

1шт.

31

A38781

SUPPORT - S.M.V. emblem

1шт.

32

A37418

SPACER

- support, slow moving vehicle emblem

4шт.

33

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

Support, SMV emblem Hex, 3/8"-16 x 1 5/8", G5

4шт.
