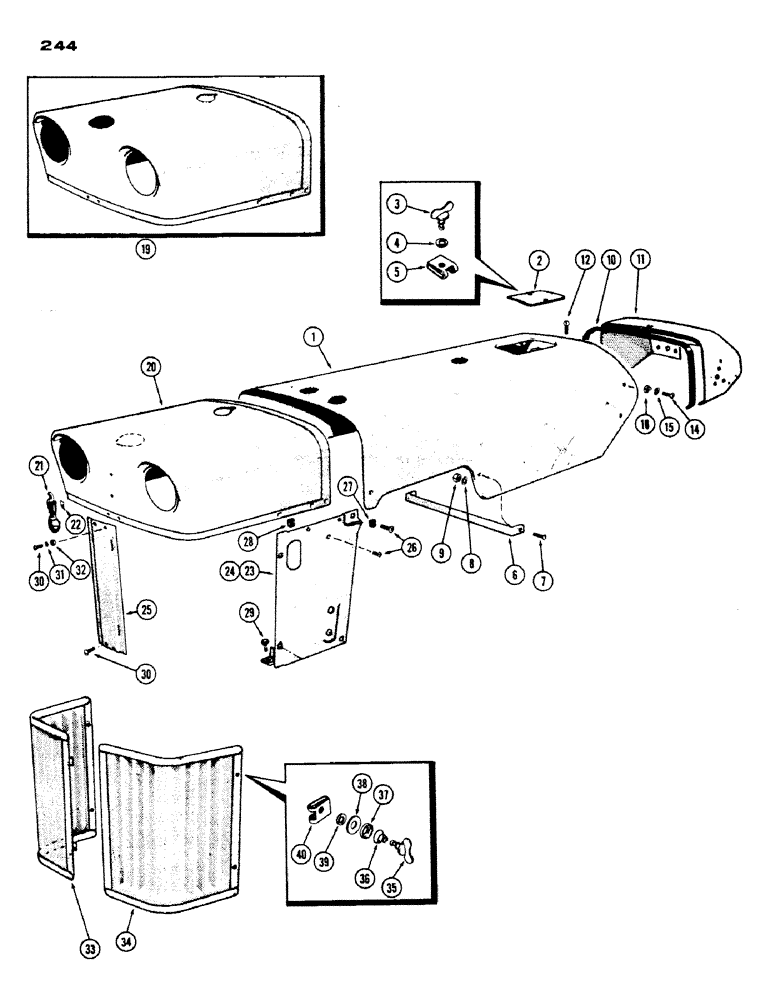

Запчасти Case IH 430 (244) - HOOD, GRILLE AND PANELS-430 (09) - CHASSIS/ATTACHMENTS

1

A37795

HOOD

(diesel w/upright muffler)

1шт.

1

A37797

HOOD

(diesel w/underneath muffler)

1шт.

1

A37796

HOOD

(gas w/upright muffler)

1шт.

1

A37798

HOOD

(gas w/underneath muffler), Includes: Ref. 2 - 5

1шт.

2

A36039

DOOR

- battery access

1шт.

3

A36040

STUD

- door lock

2шт.

4

36041

TUBE

RETAINER - stud

2шт.

5

A36042

CLIP

RECEPTACLE - stud

2шт.

6

A38825

STRAP - hood brace (Replaces G17223)

1шт.

7

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- 1/4 x 3/4" N.C. truss hd.

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

10

A36047

MOLDING

MOULDING - rubber

1шт.

11

A36694

PANEL - instrument (w/dual or single frt. wheel)

1шт.

11

A36696

PANEL - instrument (w/adj. front axle)

1шт.

12

187-1016

SCREW,Cross Truss Hd, #8 x 5/8"

- #8 x 1/2" rd. hd. metal

1шт.

14

175-406

SCREW,Phil Truss Hd, 5/16 - 18 x 1/2"

- 5/16 x 1/2" N.C. truss hd.

4шт.

15

195-103

WASHER,5/16"

- lock, 5/16"

4шт.

16

1502286C2

NUT,Floating Cage, 5/16"-18

- cage, 5/16" N. C.

4шт.

19

A38774

CAP - radiator grille (for 470 & 570 models)

1шт.

20

A36685

CAP - radiator grille (for 430 & 530 models)

1шт.

21

A24526

MEDALLION - Case eagle (used w/A36685 cap)

1шт.

22

131-138

PUSH-ON NUT

- 1/4" Tinnerman (used w/A24526 medallion)

2шт.

23

A38820

PANEL - R.H. side (L.H. shown) (Replaces A36730)

1шт.

24

A36731

PANEL - L.H. side

1шт.

25

G13936

BRACE

- center, radiator grille

1шт.

26

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- 1/4 x 1/2" N. C. truss. hd.

8шт.

27

131-115

NUT

- cage, 1/4" N. C.

4шт.

28

131-102

SPRING NUT,Ret, 1/4"-20

2шт.

29

175-437

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" N. C. truss hd.

4шт.

30

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- 1/4 x 3/4" N.C. truss hd.

2шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

32

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

33

A36702

GRILLE - R. H., radiator

1шт.

34

A36703

SCREEN

GRILLE - L. H., radiator

1шт.

35

A32881

STUD

- grille lock

4шт.

36

A32882

VALVE SPRING

SPRING - lock stud

4шт.

37

A32883

WASHER

- wear, grille stud.

4шт.

38

A34012

WASHER

- grille stud

4шт.

39

NLS

NO LONGER SERVICED

RING - snap, stud retaining

4шт.

40

A36042

CLIP

RECEPTACLE - grille stud

4шт.
