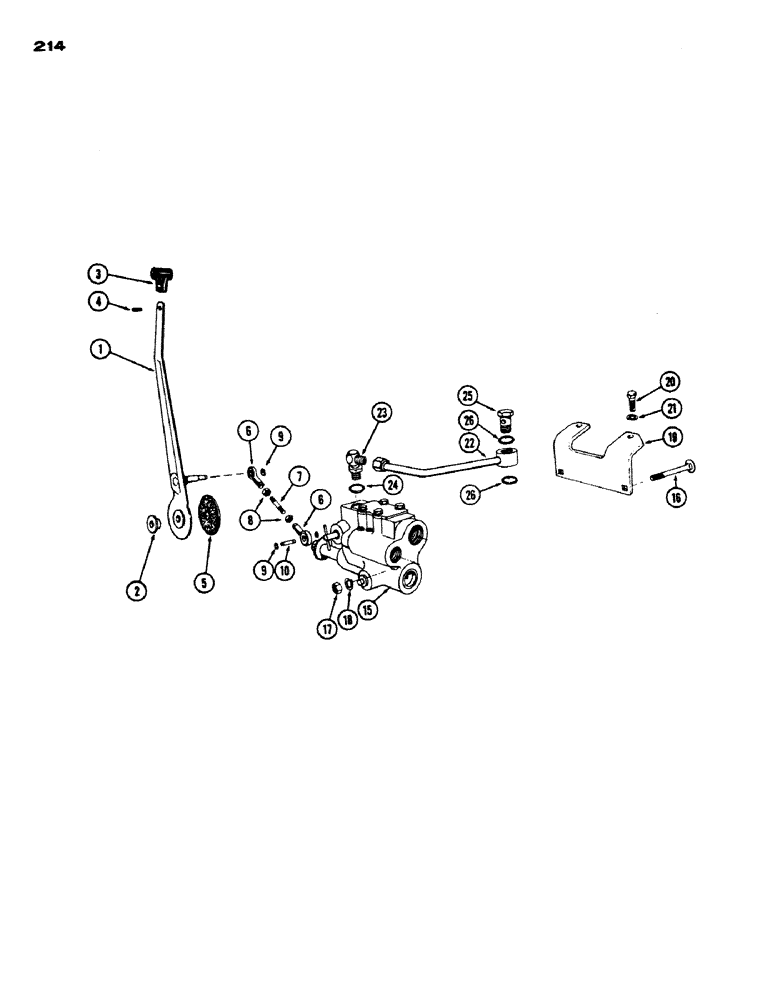

Запчасти Case IH 430 (214) - VALVE AND CONTROLS, DRAFT-O-MATIC, GENERAL PURPOSE TRACTOR (09) - CHASSIS/ATTACHMENTS

1

A35701

LEVER - hand, quadrant control, Includes: Ref. 2 - 4

1шт.

2

G15947

BUSHING - lever

1шт.

3

A36509

KNOB - lever

1шт.

4

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

1шт.

5

G10786

DISC

- friction

1шт.

A35133

LINK ASSY. - adjusting (Order components), Includes: Ref. 6 - 8

1шт.

6

A35134

BEARING

EYE - adjusting, control rod

2шт.

7

A35135

ROD

- hand lever

1шт.

8

25-155

JAM NUT,Jam, 5/16"-24, G5

- lock, adj. eye (5/16" N.C. hex., jam)

2шт.

9

A27810

CIRCLIP,#X31, .243" Dia, E-Type

RING - retaining, , adjusting eye pin #X31, .243" Dia, E-Type

3шт.

10

A35137

PIN

- rod to valve spool

1шт.

15

A35685

VALVE

ASSY. - control (Repairs Figure 216)

1шт.

16

11-548

BOLT - 5/16 x 3" rd. hd. sq. nk.

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

A35136

BRACKET - valve mounting

1шт.

20

113-236

X

BOLT - 3/8 x 2" N.C. hex. hd.

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

A35515

TUBE

- valve to rockshaft housing

1шт.

23

A37080

ELBOW

ASSY. - tube to valve, Includes: Ref. 24

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (21/32 x 13/16 x 3/32")

1шт.

25

A35146

SCREW,5/8" - 11 x 1 9/16"

-, Serial Range: tube-housing

1шт.

26

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - tube screw (11/16 x 7/8 x 3/32")

2шт.
