Запчасти Case IH 430 (213A) - ADAPTER COVER AND LINES, DRAFT-O-MATIC, STANDARD CLUTCH (09) - CHASSIS/ATTACHMENTS

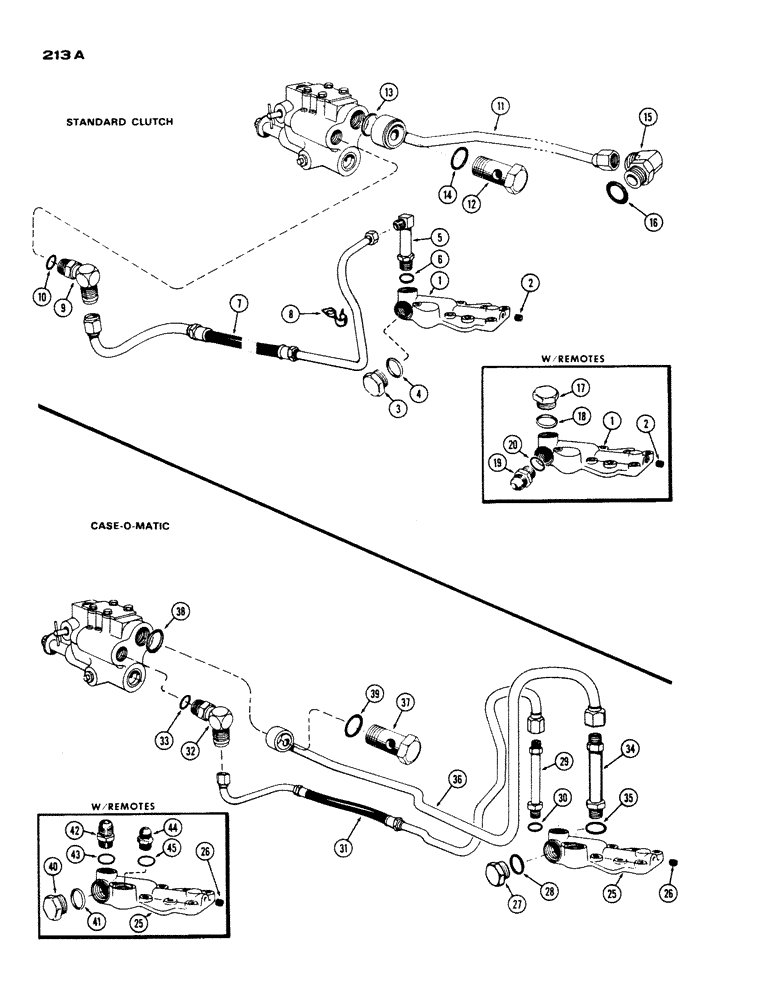

Схема запчастей Case IH 430 - (213A) - ADAPTER COVER AND LINES, DRAFT-O-MATIC, STANDARD CLUTCH (09) - CHASSIS/ATTACHMENTS
30
7
45
4
33
31
9
42
2
28
43
18
38
8
16
36
39
2
10
3
26
40
32
27
11
29
25
19
14
13
6
25
20
5
41
1
15
44
35
26
17
12
1
34
37

Артикул

Название

Примечание

Количество

1

A35425

COVER ASSY

COVER - adapter or valve

1шт.

2

218-1849

PLUG - pipe, 3/8" socket hd.

1шт.

3

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 4 Hex Hd, 7/8"-14 ORB

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

5

D23143

FITTING

ELBOW ASSY. - pressure tube to cover, Includes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 15/16 x 3/32")

1шт.

7

A35489

TUBE - pressure

1шт.

8

A35506

CLAMP - pressure tube

1шт.

9

A37067

ELBOW ASSY. - pressure tube to valve, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

11

A35490

TUBE

- return

1шт.

12

A35553

SCREW

- return, Serial Range: tube-valve

1шт.

13

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - inner (1-1/4 x 1-1/2 x 1/8")

1шт.

14

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - outer (1-1/16 x 1-5/16 x 1/8")

1шт.

15

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, return tube, Incl. Ref. 16 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (15/16 x 1-5/32 x 1/8")

1шт.

17

86512512

PLUG,7/8" - 14 ORB

Cover, Incl. Ref. 18 Hex Hd, 7/8"-14 ORB

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

19

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSY. - pressure tube, Includes: Ref. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

25

A35443

RIVET

COVER - adapter or valve, Case-O-Matic

1шт.

26

218-1849

PLUG - 3/8" P.T., sckt. hd., Case-O-Matic

1шт.

27

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 28, Case-O-Matic Hex Hd, 7/8"-14 ORB

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32"), Case-O-Matic

1шт.

29

A35444

CONNECTOR ASSY. - pressure tube, Includes: Ref. 30, Case-O-Matic

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32"), Case-O-Matic

1шт.

31

A35520

TUBE - pressure, Case-O-Matic

1шт.

32

A37067

ELBOW ASSY. - pressure tube to valve, Case-O-Matic

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32"), Case-O-Matic

1шт.

34

A35446

CONNECTOR ASSY. - return tube, Includes: Ref. 35, Case-O-Matic

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (15/16 x 1-5/32 x 1/8"), Case-O-Matic

1шт.

36

A35551

TUBE - return, Case-O-Matic

1шт.

37

A35553

SCREW

- return tube to valve, Case-O-Matic

1шт.

38

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - inner (1-1/4 x 1-1/2 x 1/8"), Case-O-Matic

1шт.

39

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - outer (1-1/16 x 1-5/16 x 1/8"), Case-O-Matic

1шт.

40

86512512

PLUG,7/8" - 14 ORB

Cover, Incl. Ref. 41, Case-O-Matic Hex Hd, 7/8"-14 ORB

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32"), Case-O-Matic

1шт.

42

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSY. - pressure tube, Includes: Ref. 43, Case-O-Matic

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32"), Case-O-Matic

1шт.

44

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - return tube, Incl. Ref. 45, Case-O-Matic

1шт.

45

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (15/16 x 1-5/32 x 1/8"), Case-O-Matic

1шт.

Выбрано товаров: 41
