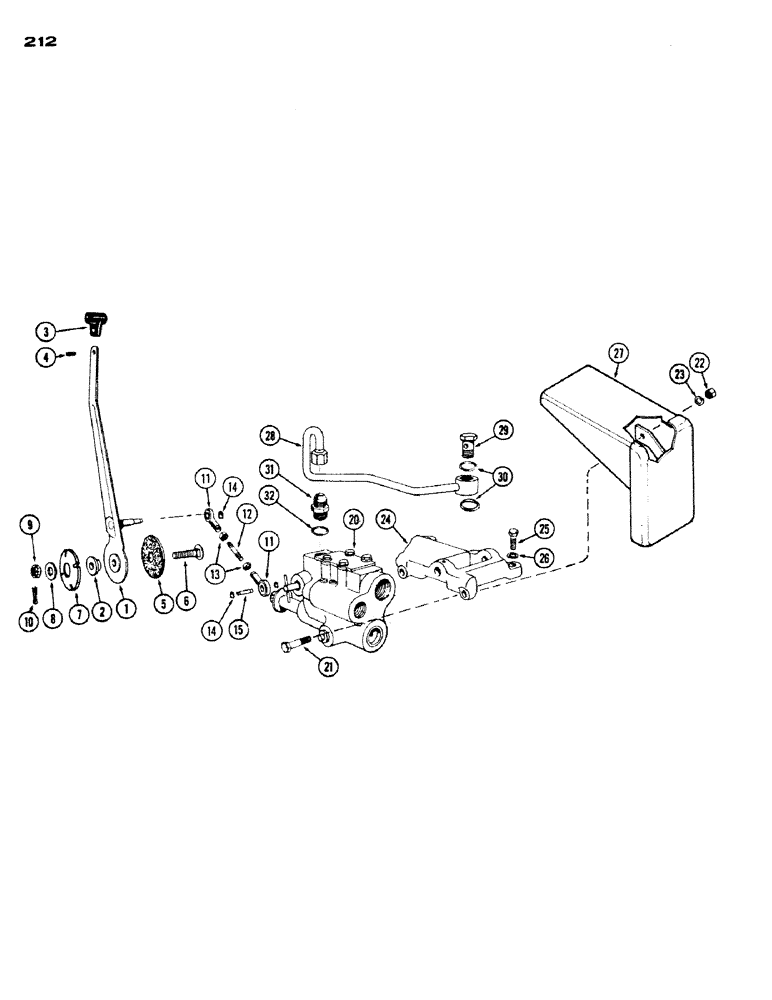

Запчасти Case IH 430 (212) - VALVE AND CONTROLS, DRAFT-O-MATIC, STANDARD (09) - CHASSIS/ATTACHMENTS

1

A35701

LEVER ASSY - hand, Includes: Ref. 2 - 4

1шт.

2

G15947

BUSHING - lever

1шт.

3

A36509

KNOB - lever

1шт.

4

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

1шт.

5

G10786

DISC

- friction

1шт.

6

G49100

BOLT - hand lever

1шт.

7

G49412

WASHER

- spring

1шт.

8

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32"

1шт.

9

425-128

SLOTTED NUT,1/2"-13, G5

NUT - slotted, 1/2" N.C.

1шт.

10

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

A35133

LINK ASSY. - adjusting (Order components), Includes: Ref. 11 - 13

1шт.

11

A35134

BEARING

EYE - adjusting, control rod

2шт.

12

A35135

ROD

- hand lever

1шт.

13

25-155

JAM NUT,Jam, 5/16"-24, G5

- lock, adj. eye (5/16" N.C. hex., jam)

2шт.

14

A27810

CIRCLIP,#X31, .243" Dia, E-Type

RING - retaining, , adjusting eye pin #X31, .243" Dia, E-Type

3шт.

15

A35137

PIN

- eye to valve spool

1шт.

20

A35685

VALVE

ASSY. - control (Repairs Figure 216)

1шт.

21

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- 5/16 x 3-1/4" N.C. hex. hd.

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

A35478

BRACKET

- valve mounting

1шт.

25

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- 3/8 x 2" N.F. hex. hd.

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

A36515

GUARD

SHIELD - valve

1шт.

28

A35507

TUBE - valve to rockshaft housing

1шт.

29

A35146

SCREW,5/8" - 11 x 1 9/16"

-, Serial Range: tube-housing

1шт.

30

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - tube to housing (11/16 x 7/8 x 3/32")

2шт.

31

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - valve (1/2" O.D. x 3/4"-16), Incl. Ref 32

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (21/32 x 13/16 x 3/32")

1шт.
