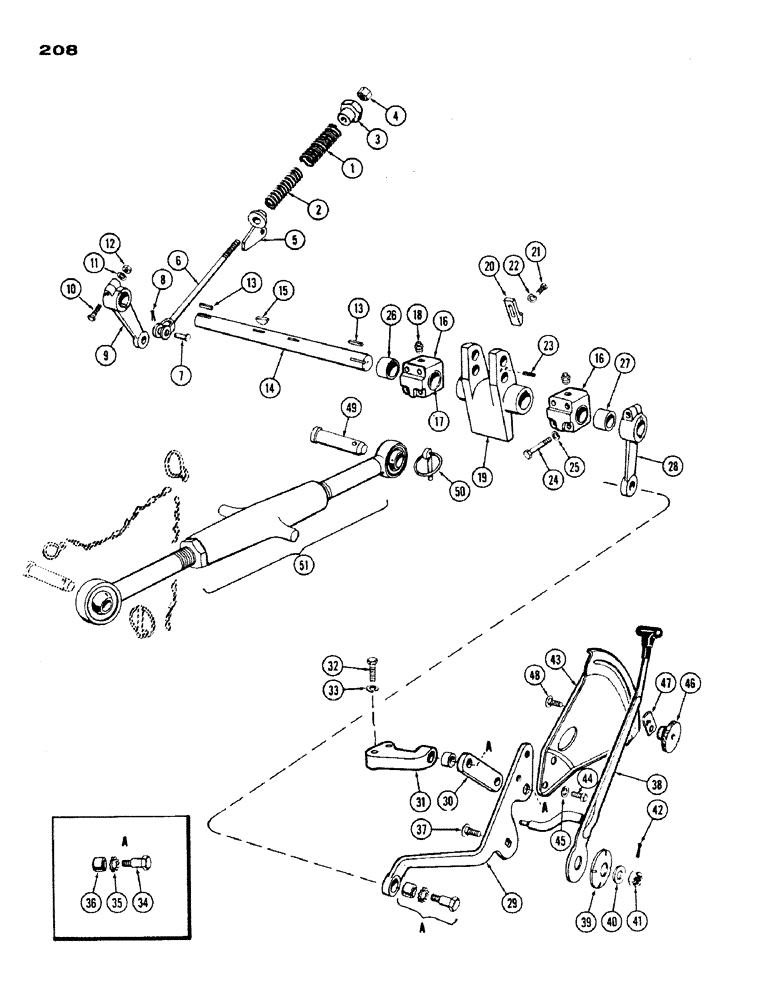

Запчасти Case IH 430 (208) - SENSING LINKAGE, DRAFT-O-MATIC, STANDARD (09) - CHASSIS/ATTACHMENTS

1

G48519

SPRING

- outer sensing

1шт.

2

A35121

VALVE SPRING

SPRING - inner sensing

1шт.

3

A30829

NUT

- spring adjusting

1шт.

4

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam, 1/2" NC hex

1шт.

5

A38277

SUPPORT

EYE - centering, sensing spring (Replaces A35496)

1шт.

6

A35495

YOKE

ROD - adjusting spring

1шт.

7

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

1шт.

8

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

9

A35795

ARM - sensing, L.H.

1шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(RH & LH arm) Hex, 3/8"-16 x 2", G5

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" N. C. hex.

2шт.

13

A36432

KEY - sensing, Serial Range: arm-shaft

2шт.

14

A35493

SHAFT

- pivot

1шт.

15

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Mast to shaft #15, 1/4" x 1", HT

2шт.

16

A36889

BRACKET - pivot shaft, Includes: Ref. 17

2шт.

17

A35117

BUSHING - shaft

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

2шт.

19

A36992

BRACKET

- mast, adj. link (includes ref. 23)

1шт.

20

A36766

STOP

- mast bracket

1шт.

21

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- 1/4 x 7/8" N.C. hex.

1шт.

22

195-18

WASHER,1/4"

- (9/32 x 5/8 x 1/16")

1шт.

23

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

24

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N. C. hex. hd.

8шт.

25

92-6

LOCK WASHER,3/8"

8шт.

26

A35494

SPACER - L. H., pivot shaft (1-19/32")

1шт.

27

G49638

SPACER - R. H., pivot shaft (1-3/16")

1шт.

28

A35794

ARM - sensing, R. H.

1шт.

29

A35499

ARM - lower, quadrant (incl. ref. 36)

1шт.

30

A35502

LINK - lift, Serial Range: arm-quadrant

1шт.

31

A35491

BRACKET

- lift arm (incl. ref. 36)

1шт.

32

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

G49098

STEP BOLT

BOLT - pivot

3шт.

35

G49413

WASHER

- wave, pivot bolt

3шт.

36

A35112

BUSHING

- pivot

1шт.

37

G49100

BOLT - hand lever

1шт.

38

A35701

LEVER - hand (See Figures 212 & 214)

1шт.

39

G49412

WASHER

- spring, lever bolt

1шт.

40

195-533

WASHER,1/2", SAE

- (17/32 x 1-1/16 x 3/32")

1шт.

41

425-128

SLOTTED NUT,1/2"-13, G5

NUT - slotted, 1/2" N. C. hex.

1шт.

42

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

43

A35123

QUADRANT - adjusting

1шт.

44

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

- 3/8 x 2" N.C. hex.

2шт.

45

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

46

G15951

NUT

- quadrant stop

2шт.

47

G15950

STOP

- quadrant

1шт.

48

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

49

G16735

PIN

- adjusting, Serial Range: link-mast

1шт.

50

A30338

PIN

KLIK PIN

2шт.

51

A36228

UPPER LINK

LINK ASSY. - adjusting (See Figure 207A)

1шт.
