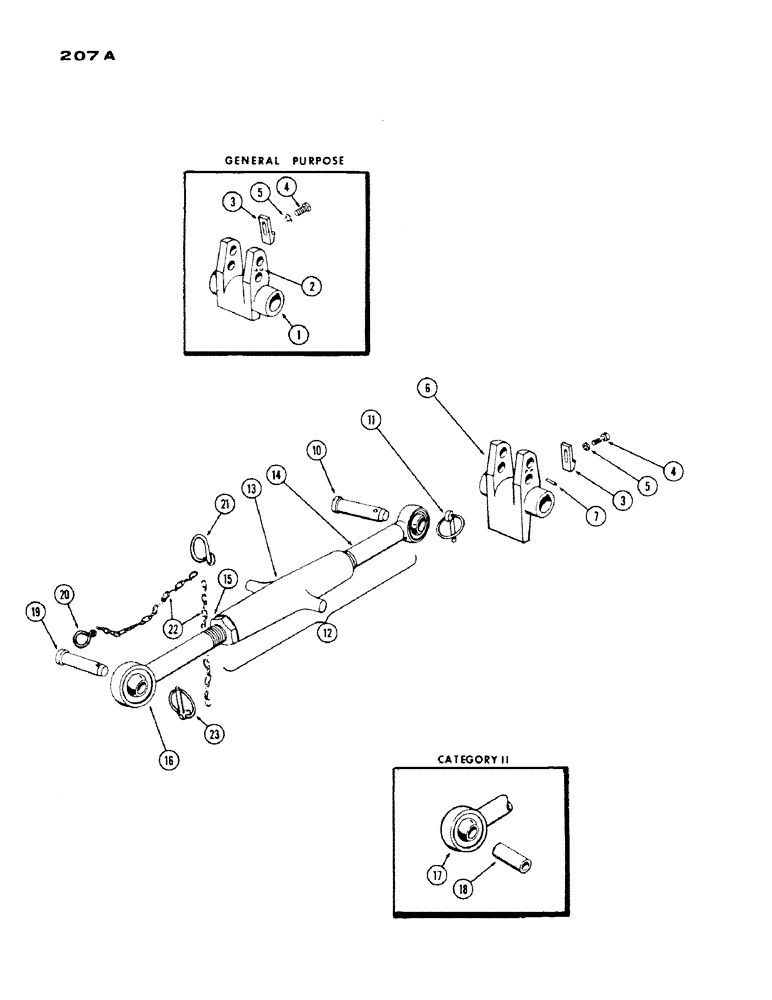

Запчасти Case IH 430 (207A) - UPPER ADJUSTING LINK, DRAFT-O-MATIC (09) - CHASSIS/ATTACHMENTS

1

A36991

BRACKET

- mast (General Purpose), Includes: Ref. 2

1шт.

2

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

3

S36766

STOP - mast bracket

1шт.

4

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

1шт.

5

195-18

WASHER,1/4"

- 9/32 x 5/8 x 1/16"

1шт.

6

A36992

BRACKET

- mast (Standard), Includes: Ref. 7

1шт.

7

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

10

G16735

PIN

- adjusting, Serial Range: link-mast

1шт.

11

A30338

PIN

KLIK PIN

1шт.

12

A36228

UPPER LINK

LINK ASSY. - upper adjusting, Includes: Ref. 13 - 16

1шт.

13

A36223

TURNBUCKLE

1шт.

14

NLS

NO LONGER SERVICED

LINK - adjusting, front (3/4")

1шт.

15

25-1518

JAM NUT,Jam, 1 1/8"-12, G5

- jam, 1-1/8" N.F. hex.

1шт.

16

A36226

LINK

- adjusting, rear (Cat. 1)

1шт.

17

A38138

LINK - adjusting, rear (1" Cat. II)

1шт.

18

A33499

ADAPTER

- (Cat. II to Cat. I)

1шт.

19

A29700

PIN

- link to implement (Cat. I)

1шт.

20

A30706

"S" HOOK -, Serial Range: chain-pin

1шт.

21

A29730

HOOK

"S" HOOK -, Serial Range: chain-link

1шт.

22

A30672

CHAIN - hitch pin & Klik pin

2шт.

23

A30338

PIN

KLIK PIN

1шт.
