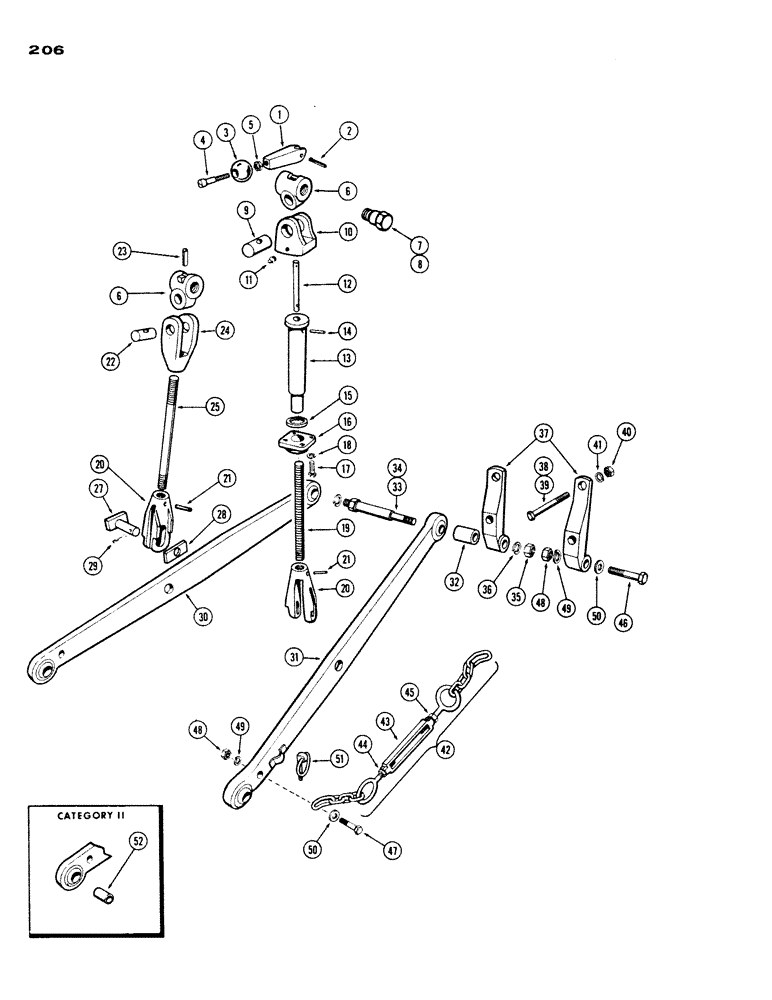

Запчасти Case IH 430 (206) - DRAFT ARMS AND LIFT LINKS, DRAFT-O-MATIC (09) - CHASSIS/ATTACHMENTS

1

A35464

HANDLE

- adjusting screw

1шт.

2

138-2008

PIN,1/4" x 1 1/8", Coiled

1шт.

3

A35465

KNOB

- adjusting handle

1шт.

4

64-632

SCREW

BOLT - 3/8" x 2" N.C. fillister hd.

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

6

A37092

BLOCK

- swivel, lift link

2шт.

7

A37093

STEP BOLT,3/4" - 10 x 1 1/2" LH

PIN - block to lift arm (L. H. thrd.)

2шт.

8

A35457

SCREW

PIN - block to lift arm (R.H. thrd.)

2шт.

9

A35459

PIN

- pivot, R.H. lift link

1шт.

10

A35458

HOUSING - pivot, R. H. lift link

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

12

A35463

SHAFT

- adjusting handle

1шт.

13

A35460

TUBE

- adjusting, R.H. lift link

1шт.

14

138-2008

PIN,1/4" x 1 1/8", Coiled

1шт.

15

NLS

NO LONGER SERVICED

- thrust, adjusting screw

1шт.

16

A35467

PLATE

- thrust, adjusting screw

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

A35469

SCREW,3/4" - 10 x 8 13/16"

- adj., R.H. link (Std. or L.C.K.) (8-13/16" long)

1шт.

19

A36134

SCREW

- adj. R.H. link (G.P.) (11-3/8" long)

1шт.

20

A35470

YOKE

- lower, lift link

2шт.

21

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

2шт.

22

A35475

PIN - pivot, L.H. lift link

1шт.

23

138-201

LOCK PIN,1/2" x 1 1/4", Slotted

PIN, 1/2" x 1 1/4", Slotted

1шт.

24

A35474

YOKE - upper, L.H. lift link

1шт.

25

A35477

ROD - L.H. lift link (Std. or L.C.K.) (11-7/8" long)

1шт.

25

A36135

ROD

- L.H. lift link (G.P.) (13-5/8" long)

1шт.

27

A36883

PIN

- pivot, link to draft arm

2шт.

28

A35472

PLATE

LOCK - pivot

2шт.

29

132-148

COTTER PIN,1/4" x 1 1/4"

PIN - split (Cotter), 1/4" x 1 1/4"

2шт.

30

A36769

ARM - draft, L.H. (7/8" impl. end) (Cat. I)

1шт.

30

A38137

ARM - draft, L.H. (1-1/8" impl. end) (Cat. II)

1шт.

31

A36768

ARM - draft, R.H. (7/8" impl. end) (Cat. I)

1шт.

31

A38136

ARM - draft, R.H. (1-1/8 impl. end) (Cat. II)

1шт.

32

A38214

SPACER

- draft arm (Replaces A36386)

2шт.

33

A38215

STUD

- pivot (7" long) (Std. or L.C.K.) (Replaces A36388)

2шт.

34

A38216

STUD

- pivot (8" long) (G.P.) (Replaces A36387)

2шт.

35

25-1010

NUT,5/8"-11, G5

2шт.

36

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

37

G16911

BRACKET

- draft arm & sway chain

4шт.

38

14-10120

BOLT,Hex, 5/8" - 18 x 7-1/2", Gr 5

- 5/8" x 7-1/2" N.F. hex.

4шт.

39

14-10128

BOLT,Hex, 5/8" - 18 x 8", Gr 5

- 5/8" x 8" N.F. hex. hd.

4шт.

40

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

8шт.

41

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

42

A36767

CHAIN (AG)

CHAIN ASSY. - sway, draft arm, Includes: Ref. 43 - 45

2шт.

43

A38201

TURNBUCKLE

- adjust chain

2шт.

44

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" N.C. hex. (R.H. thrd.)

1шт.

45

129-347

JAM NUT,Jam, 5/8"-11, G5, LH

1шт.

46

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

47

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

48

25-1010

NUT,5/8"-11, G5

4шт.

49

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

50

195-2071

WASHER

- 21/32" I.D. x 2" O.D.

4шт.

51

A33509

PIN,11.18mm OD

KLIK PIN - implement pin

2шт.

52

A33498

ADAPTER

- draft arm hitch pin (Cat. II to Cat. I)

2шт.
