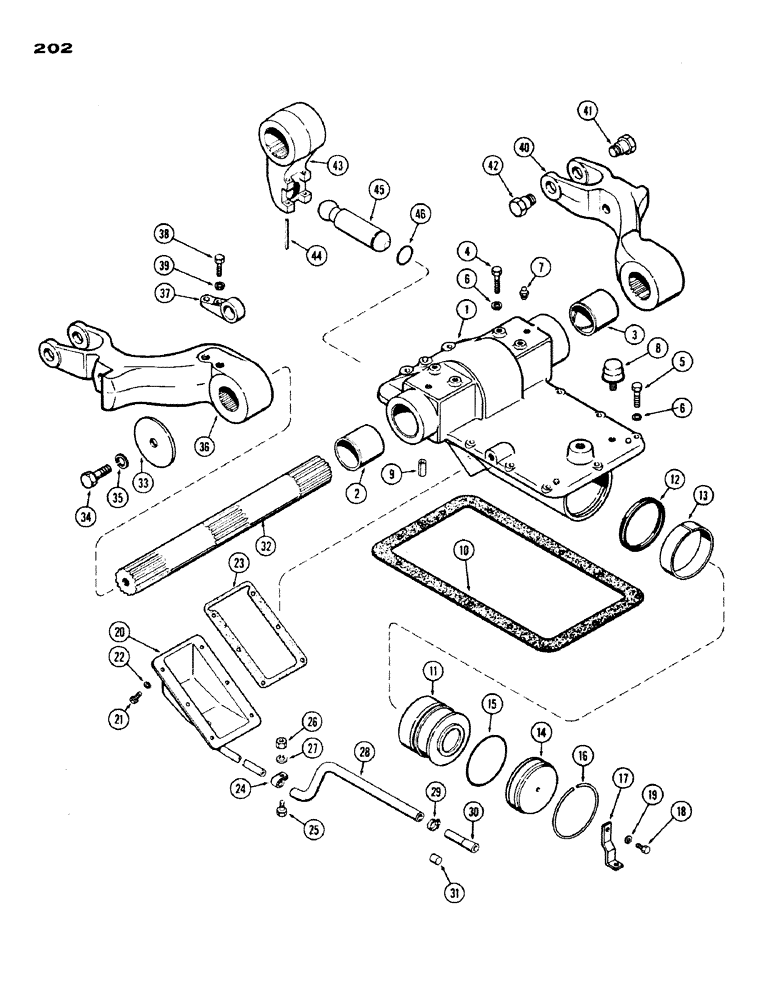

Запчасти Case IH 430 (202) - ROCKSHAFT AND HOUSING, DRAFT-O-MATIC, GENERAL PURPOSE TRACTOR (09) - CHASSIS/ATTACHMENTS

1

A37194

HOUSING ASSY. - rockshaft, Includes: Ref. 2 and 3

1шт.

2

G49662

BUSHING

- R.H., rockshaft (2-5/16 x 2-7/16 x 2-1/4")

2шт.

3

G49663

BUSHING

- L.H., rochshaft (2-1/16 x 2-3/16 x 2-1/4")

2шт.

4

113-245

X

BOLT - 3/8 x 1-1/2" N.C. hex. (Gr. 8)

2шт.

4

113-246

BOLT - 3/8 x 1-3/4" N.C. hex. (Gr. 8)

4шт.

5

113-228

X

BOLT - 3/8 x 1-1/4" N.C. hex. (Gr. 8)

7шт.

6

92-6

LOCK WASHER,3/8"

11шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

2шт.

8

A27173

BREATHER

- oil

1шт.

9

138-200

LOCK PIN,1/2" x 1", Slotted

PIN, 1/2" x 1", Slotted

1шт.

10

G10462

GASKET

- housing to trans. case

1шт.

11

A40799

PISTON

PISTON ASSY. - hydraulic, Includes: Ref. 12 and 13

1шт.

12

A36442

SEAL

RING - seal, "U" cup (3-1/4 x 3-3/4 x 3/8")

1шт.

13

A36441

SEAL ASSY.

RING - wear, piston

1шт.

14

A37326

CAP

- hydraulic cylinder

1шт.

15

A36405

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

"O" RING - cylinder cap (3-1/2 x 3-3/4 x 1/8")

1шт.

16

A37327

RING, SNAP

RING - snap, cylinder cap

1шт.

17

A37808

BRACKET

- cylinder cap

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

A38394

PAN - oil return (tube approx. 13-1/8" long), Start Serial: 8349880

1шт.

20

A37329

FITTING

PAN - oil return (tube approx. 11-1/2" long), Serial Range: -8349880

1шт.

21

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

23

A38652

OIL PAN GASKET SET

- oil return pan (Replaces A37332)

1шт.

24

A37334

CLIP - hose to pan tube

1шт.

25

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

26

25-104

NUT,1/4"-20, G5

1шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

28

A37333

HOSE

ASSY. - oil pan, w/internal spring, Start Serial: 8349880

1шт.

THIS HOSE DOES NOT CONTAIN THE INTERNAL SPRING, ORDER A37346 IF A SPRING IS NEEDED

1шт.

28

A37346

HOSE

- oil pan, w/out internal spring, Serial Range: -8349880

1шт.

29

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

1шт.

30

A37335

TUBE - return oil (in trans. case)

1шт.

31

A38284

PLUG

- oil tube (w/no hitch) (Replaces A37403)

1шт.

32

G10460

ROCKSHAFT

1шт.

33

A29186

WASHER

- retaining, lift arms

2шт.

34

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

35

92-6

LOCK WASHER,3/8"

2шт.

36

A35454

ARM - lift, R.H. draft arm

1шт.

37

A35509

BRACKET - quadrant link

1шт.

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

38

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex. hd.

1шт.

39

92-6

LOCK WASHER,3/8"

2шт.

40

A35455

ARM - lift, L. H. draft arm

1шт.

41

A37093

STEP BOLT,3/4" - 10 x 1 1/2" LH

PIN - lift link (L.H. thrd.)

2шт.

42

A35457

SCREW

PIN - lift link (R.H. thrd.)

2шт.

43

A37807

ARM - rocker, piston

1шт.

44

138-42

LOCK PIN,3/32" x 13/16", Slotted

PIN - roll, 1/4 x 2"

2шт.

45

G30527

ROD

- rocker arm to piston, Includes: Ref. 46

1шт.

46

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - piston rod (1-1/4 x 1-1/2 x 1/8")

1шт.
