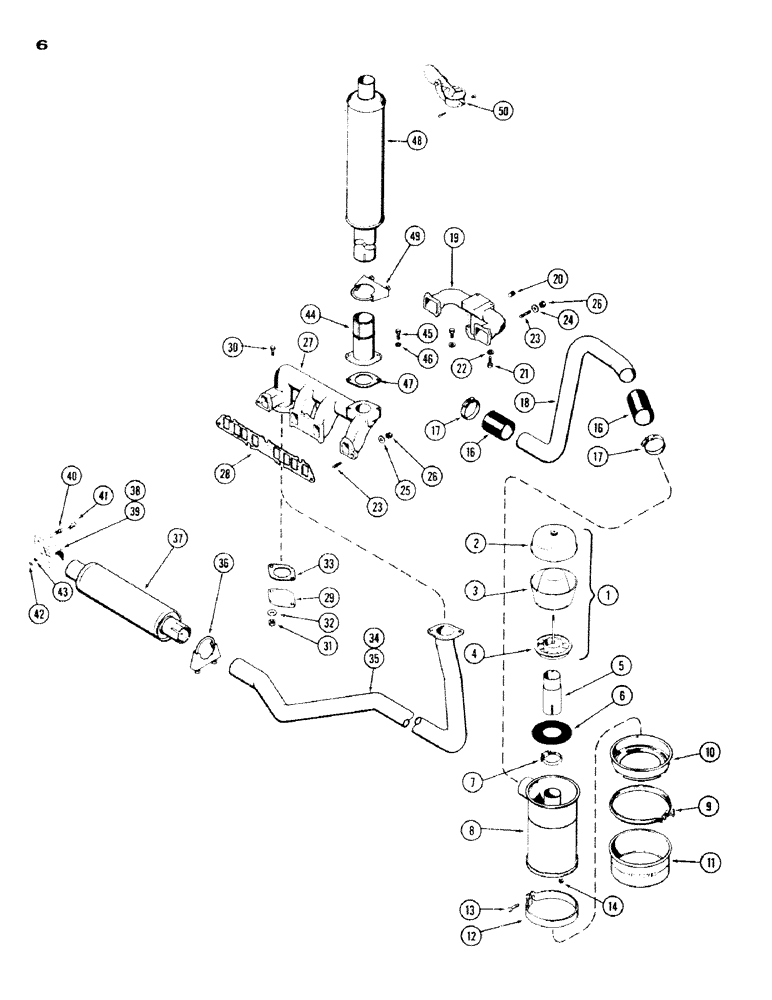

Запчасти Case IH 430 (006) - AIR CLEANER-MANIFOLD-MUFFLER, 430, 148B, SPARK IGNITION ENGINE (02) - ENGINE

1

A35321

CLEANER

PRE-CLEANER ASSY, Includes: Ref. 2 - 4

1шт.

2

D30676

COVER

1шт.

3

D30675

BODY

1шт.

4

NSS

NOT SOLD SEPARAT

BASE ASSY. - pre-cleaner

1шт.

5

A35322

EXTENSION

- pre-cleaner

1шт.

6

A36855

SHIELD

- pre-cleaner extension

1шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- extension, air cleaner #28, 1.31/2.25 Type F Worm

1шт.

8

G45267

AIR CLEANER ASSY. - complete, Includes: Ref. 9 - 11

1шт.

9

G45011

CLAMP - oil cup

1шт.

10

G46013

CUP

- oil, inner

1шт.

11

G46012

CUP - oil, outer

1шт.

12

G15662

BAND - air cleaner mounting

1шт.

13

173-216

SCREW,Sl Rnd Hd, 1/4" - 20 x 1 3/4"

- 1/4" x 1-3/4" N.C. rd. hd.

1шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

R14169

HOSE

- intake tube (1-1/2" I.D. x 3")

2шт.

17

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

18

G46288

TUBE,1.5" OD

- air cleaner to carburetor

1шт.

19

A37172

MANIFOLD

- intake

1шт.

20

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/4" sq. hd.

1шт.

21

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

A29431

STUD

- manifold to head (3/8" N.C. x 1-3/4")

7шт.

24

A30058

WASHER

- stud (13/32" x 7/8" x 1/8")

4шт.

25

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

3шт.

26

131-903

NUT,3/8"-16

NUT - brass, 3/8" N.C.

7шт.

27

G2042

MANIFOLD

- exhaust

1шт.

28

A30030

GASKET

-, Serial Range: manifold-head

1шт.

29

A38188

PLATE

COVER - exhaust opening (Replaces G2044)

1шт.

30

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover or exhaust pipe 3/8" x 1-1/2" N.C. hex.

2шт.

31

131-903

NUT,3/8"-16

NUT - brass, 3/8" N.C.

2шт.

32

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

2шт.

33

G46853

MANIFOLD GASKET

- exhaust opening flange

1шт.

34

A36908

PIPE, EXHAUST SYSTEM

PIPE - underneath exhaust (Std.)

1шт.

35

A36910

PIPE

- underneath exhaust (G.P.)

1шт.

36

A27077

CLAMP

-, Serial Range: pipe-muffler

1шт.

37

G45287

MUFFLER

- underneath

1шт.

38

A36909

BRACKET

CLAMP - muffler (Std.)

1шт.

39

A35178

BRACKET

CLAMP - muffler (G.P.)

1шт.

40

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

41

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

42

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

43

92-5

LOCK WASHER,5/16"

2шт.

44

G2125

OUTLET

- exhaust, upright muffler

1шт.

45

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

46

92-6

LOCK WASHER,3/8"

2шт.

47

G46853

MANIFOLD GASKET

- exhaust opening flange

1шт.

48

G45264

MUFFLER

- upright

1шт.

49

A13240

CLAMP,2-5/8" ID

- muffler, upright

1шт.

50

G45048

CAP

- weather, upright muffler

1шт.
