Запчасти Case IH 430 (230) - REMOTE HOSES AND COUPLINGS, CASE-O-MATIC DRIVE (08) - HYDRAULICS

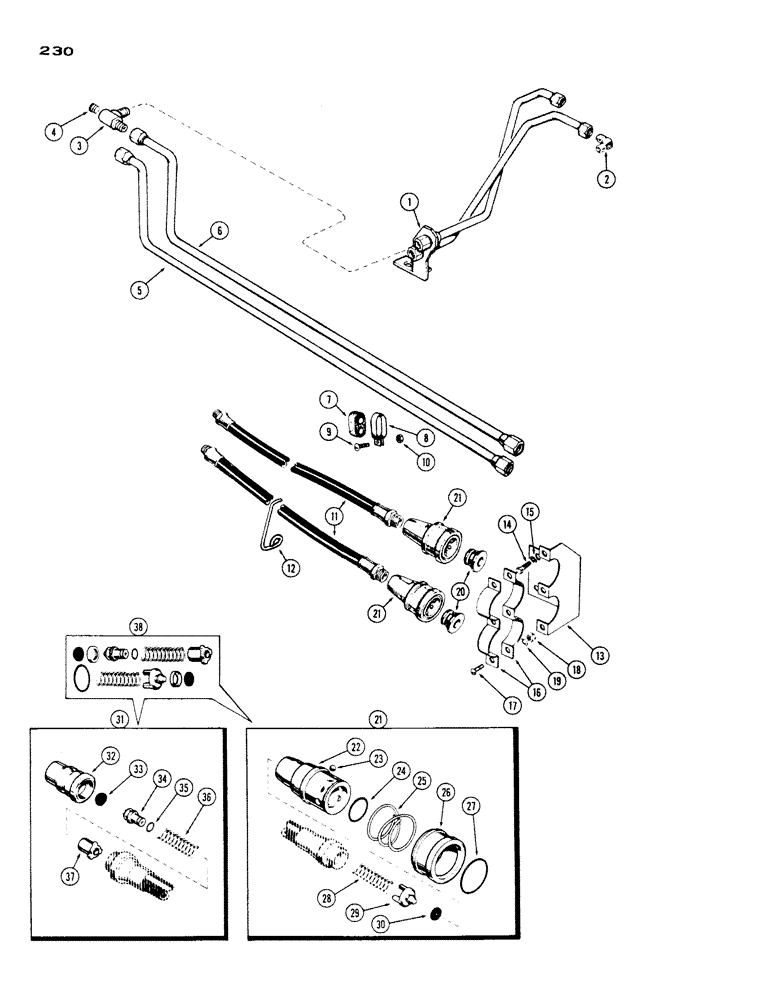

Схема запчастей Case IH 430 - (230) - REMOTE HOSES AND COUPLINGS, CASE-O-MATIC DRIVE (08) - HYDRAULICS
19
36
21
30
2
9
37
20
21
17
31
3
5
7
24
13
15
22
27
1
11
16
4
35
18
21
23
34
12
29
28
14
10
38
8
6
25
32
26
33

Артикул

Название

Примечание

Количество

1

A35612

MANIFOLD - cross-over

1шт.

2

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- tube to valve

2шт.

3

A35607

TEE - cross over, Serial Range: manifold-tube

2шт.

4

221-1843

PLUG

- pipe, 3/8" socket hd.

2шт.

5

A35720

TUBE - lower, cross, Serial Range: over-hose

1шт.

6

A35719

SPLIT PIN/SAFETY PIN

TUBE - upper, cross, Serial Range: over-hose

1шт.

7

G46835

GROMMET

- rubber, tube clamp

1шт.

8

G46194

CLAMP

- tube

1шт.

9

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- clamp, #10-32 x 3/4" rd. hd.

1шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex. (Keps)

1шт.

11

A35453

HOSE - tube to coupling (22")

2шт.

12

G15434

SUPPORT - hose to trans. case

1шт.

13

A35439

BRACKET - coupling socket

1шт.

14

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

A29224

CLAMP - coupling socket

2шт.

17

75-416

SCREW,Rd, 1/4" - 20 x 1"

- 1/4 x 3/4" rd. hd. mach.

3шт.

18

25-104

NUT,1/4"-20, G5

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

20

A22768

PLUG

- dust, coupling socket

2шт.

21

A28542

COUPLING, QUICK, FEM

COUPLING ASSY. - break-away (female half), Includes: Ref. 22 - 30

2шт.

22

A27349

BODY

1шт.

23

211-7

BALL,1/4" Dia

- locking 1/4" Dia

8шт.

24

A34848

O-RING

"O" RING - body (7/8 x 1-1/8 x 1/8")

1шт.

25

A27354

SPRING

- ball sleeve

1шт.

26

A27353

SLEEVE

SLEEVE - ball retainer

1шт.

27

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - sleeve (1-3/16 x 1-7/16 x 1/8")

1шт.

28

A11324

SPRING

- piston

1шт.

29

A26215

PISTON

1шт.

30

A33964

SEAL

- piston

1шт.

31

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - break-away (male half), Includes: Ref. 32 - 37

2шт.

32

A27356

PIPE FITTING

BODY

1шт.

33

A33964

SEAL

- piston

1шт.

34

A27508

PISTON

1шт.

35

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - piston (1/4 x 3/8 x 1/16")

1шт.

36

A27351

SPRING

- piston

1шт.

37

A9634

SLEEVE

- piston

1шт.

38

A40459

KIT

- repair, break-away coupling

1шт.

Выбрано товаров: 38
