Запчасти Case IH 430 (228) - REMOTE HYDRAULIC CONTROLS, STANDARD TRACTOR WITH CASE-O-MATIC (08) - HYDRAULICS

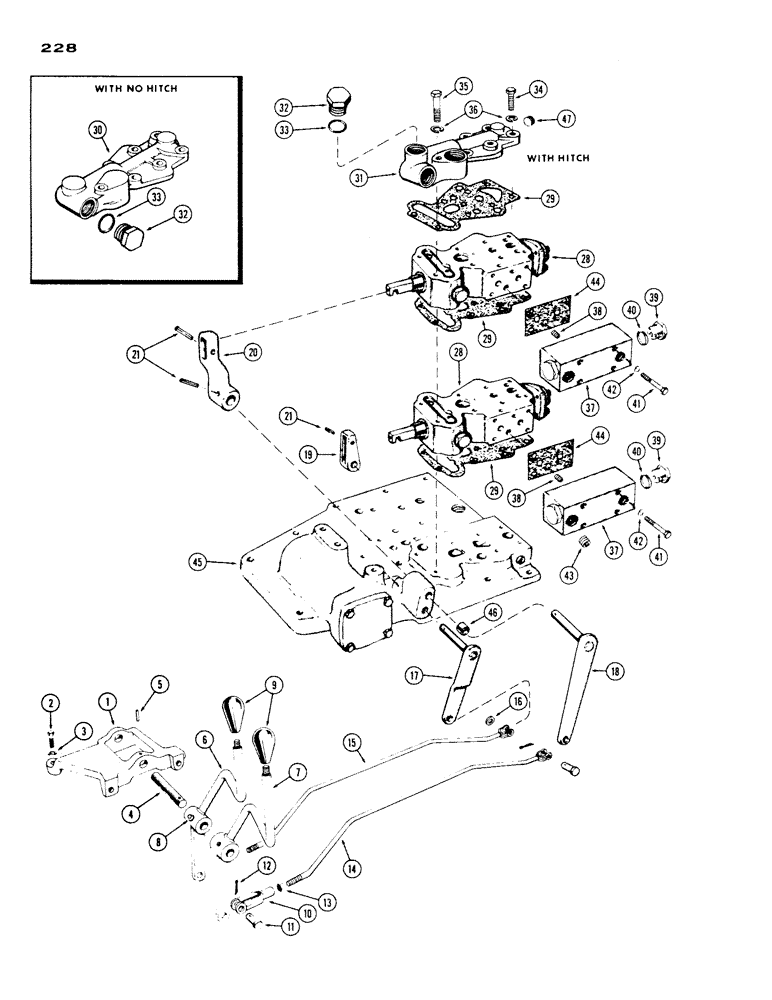

Схема запчастей Case IH 430 - (228) - REMOTE HYDRAULIC CONTROLS, STANDARD TRACTOR WITH CASE-O-MATIC (08) - HYDRAULICS
44
13
1
41
28
14
33
44
12
36
9
18
39
2
28
40
21
10
34
42
16
32
32
47
29
41
6
29
38
33
35
29
37
8
20
38
15
3
5
46
40
21
39
42
17
11
37
43
7
19
30
45
31
4

Артикул

Название

Примечание

Количество

1

A35478

BRACKET

- hand lever

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

A35488

SHAFT

- pivot, hand lever

1шт.

5

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

6

A35481

LEVER - hand, inner

1шт.

7

A35485

LEVER - hand, outer

1шт.

8

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, hand lever (1/4" str. drive)

2шт.

9

A14051

GRIP

KNOB - hand lever

2шт.

10

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - control rod to lever

2шт.

11

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Control rod 3/8" x 1.060"

4шт.

12

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

4шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N. F. hex.

2шт.

14

A35480

ROD - control, outer (27-5/16" long)

1шт.

15

A35479

ROD - control, inner (28" long)

1шт.

16

A57470

WASHER

- rod spacer, 13/32 x 11/16 x 1/16" (Replaces A30122)

6шт.

17

A35448

CRANK

- lower, Serial Range: valve-rod

1шт.

18

A35449

CRANK - upper, Serial Range: valve-rod

1шт.

19

G1108

ARM ASSY.

BELLCRANK - lower valve spool

1шт.

20

G1107

CRANK

BELLCRANK - upper valve spool

1шт.

21

138-2005

PIN,1/4" x 1", Coiled

4шт.

28

A35618

LOCK VALVE

VALVE ASSY. - hyd. control (Repairs Figure 222)

2шт.

29

A35617

GASKET

- valve and cover

3шт.

30

A35440

COVER - valve (w/no hitch)

1шт.

31

A35443

RIVET

COVER - valve (w/hitch)

1шт.

32

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 33 Hex Hd, 7/8"-14 ORB

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

34

13-584

BOLT,Hex, 5/16" - 18 x 5-1/4", Gr 5

- 5/16 x 5-1/4" N. C. hex. hd.

7шт.

35

13-592

BOLT,Hex, 5/16" - 18 x 5-3/4", Gr 5

1шт.

36

92-5

LOCK WASHER,5/16"

8шт.

37

A35437

MANIFOLD

- valve

2шт.

38

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe, inner Hex Soc, 1/4"-18 NPTF

2шт.

39

A14280

PLUG

- end, manifold

4шт.

40

A58608

GASKET

- plug, manifold (Replaces A27927)

4шт.

41

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

6шт.

41

13-538

SCREW,Hex, 5/16" - 18 x 2 3/8", Gr 5

BOLT - 5/16 x 2-3/8" N.C. hex. hd.

2шт.

42

92-5

LOCK WASHER,5/16"

8шт.

43

221-1843

PLUG

- pipe, outer (3/8" socket hd.)

2шт.

44

G10930

GASKET

-, Serial Range: manifold-valve

2шт.

45

A37869

HOUSING

- hyd. adapter (See Figure 220)

1шт.

46

A35428

CRANKSHAFT BEARING,0.504" ID x 0.6285" OD x 5"

BUSHING - crank (in adapter hsg.)

4шт.

47

221-1849

PLUG

- cover (1/8" P.T. socket hd.)

1шт.

Выбрано товаров: 42
